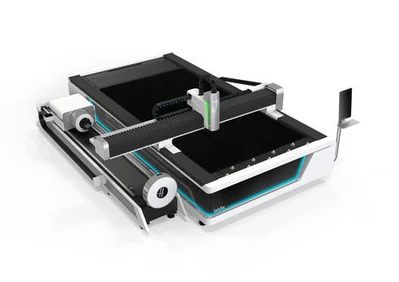

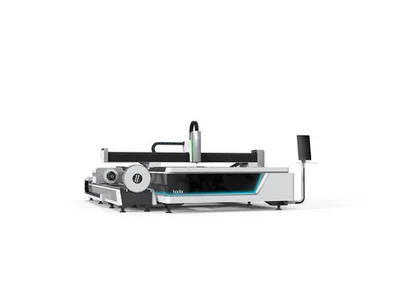

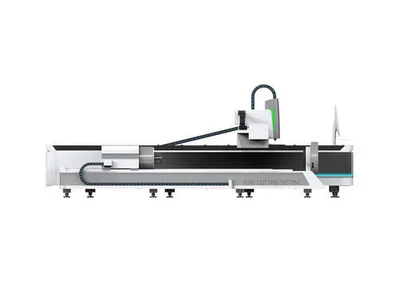

New BODOR F4020T | Laser Cutters

Description

1. A Cast Iron Bed Lasts Forever.
Mold pouring, clone production; integrally formed, reject splicing.
Using flake graphite cast iron, the lowest tensile strength of which is 200MPa. High carbon content, high compressive strength and high hardness. Strong shock absorption and wear resistance. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using, so the machine accuracy could maintain for a long time, and no deformation in a life cycle.
2. Auto Focus Laser Head.
Applicable to various focal lengths, which are controlled by machine tool control system. Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal.
Free you hands, Focal length is controlled by operating system. We don’t need to do manual regulation, which effectively avoids errors or faults caused by manual operation.
Adopt Bodor Lightning technology, perforation time is short, 90% of perforation time is saved；Bodor Lightning combined with Bodor Genius improved new process so that the perforation is not affected by the material quality and achieve perfect cutting with the best cutting section; saving cutting gas and electricity, saving cost.
When replacing different materials or different thicknesses sheet, manual focus laser head needs to adjust focal length manually, very inefficient; auto focus laser head can read system storage parameters automatically, very efficient.
Increasing perforation focus length, separately setting perforation focal length and cutting focal length, enhance cutting accuracy.
Built-in double water-cooling structures can ensure constant temperature of collimating and focusing components, avoid lenses overheating and extend service life of lenses.
Increasing collimation protective lens and focus protective lens, carefully protect key components.
3. Self-centering Chuck.
Automatic electric chuck, claw DC motor drive, clamping motor current is sensitive, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering electric chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.
4. Cast aluminum crossbeam.
Integral steel mold pressure casting, light, flexible and efficient.
After artificial aging, solution treatment and finishing, crossbeam owns good integrity, rigidity, surface quality, toughness and ductility. Aluminum alloy’s metal characteristics of light weight and strong rigidity are helpful to high speed movement in processing, and high flexibility is beneficial to high-speed cutting of various graphics based on high accuracy. Light crossbeam can give equipment a high operation speed, improving processing efficiency to ensure processing quality.
5. BodorPro Automatic tracing-edge, dual-use for plate and tube.
Using a new graphic rendering and presentation, pipe parts can realize dual display as flat and three-dimensional. Plane retouching is simple and quick, three-dimensional can synchronous display. The new four-sided edges searching, optimized edges searching mode and algorithm bring us higher cutting accuracy and accuracy stability. Dual-use cutting system of plate and tube can be switched freely, plate area and tube area are segmented intelligently, the security is enhanced. Making accurate position of pipe center, improve the tube cutting precision.
6. Aesthetics was introduced to industrial ID, perfect combination of technology and aesthetics.
The new injection molding and anti-flaming Z-axis cover is 1/10 of weight of the original and satisfys the maximum acceleration while making it simpler. High-pressure cast aluminum cantilever supports for a stronger, long-lasting shape. The flowing ice blue light gives processing feedback directly. Brand new injection curved hocky-shaped decoration is a perfect combination between PMMA and metal plate. The whole product is more coordinated into a perfect artwork.
