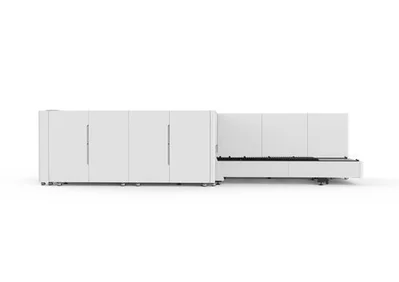

New BODOR P3015T | Laser Cutters

Description

1. A Cast Iron Bed Lasts Forever.
Mold pouring, clone production; integrally formed, reject splicing.
Using flake graphite cast iron, the lowest tensile strength of which is 200MPa. High carbon content, high compressive strength and high hardness. Strong shock absorption and wear resistance. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using, so the machine accuracy could maintain for a long time, and no deformation in a life cycle.
2. Gear Drive, 10s Exchange, No.1 in the Industry.

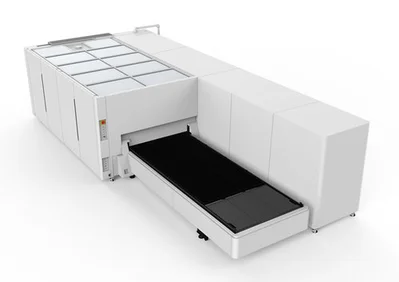

Two automatic exchange platforms system.
Rapid exchanging between two platforms greatly improves work efficiency. Rack and pinion transmission system has better rigidity and higher accuracy, saves feeding time, making operation more efficient. The highest speed of platform exchanging is 10s.
3. Auto Focus Laser Head.
Applicable to various focal lengths, which are controlled by machine tool control system. Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal.
Free you hands, Focal length is controlled by operating system. We don’t need to do manual regulation, which effectively avoids errors or faults caused by manual operation.
Adopt Bodor Lightning technology, perforation time is short, 90% of perforation time is saved; Bodor Lightning combined with Bodor Genius improves new process so that the perforation is not affected by the material quality and achieves perfect cutting with the best cutting section; saving cutting gas and electricity, saving cost.
When replacing different materials or different thicknesses sheet, manual focus laser head needs to adjust focal length manually, very inefficient; auto focus laser head can read system storage parameters automatically, very efficient.
Increasing perforation focus length, separately setting perforation focal length and cutting focal length, enhance cutting accuracy.
Built-in double water-cooling structures can ensure constant temperature of collimating and focusing components, avoid lenses overheating and extend service life of lenses.
Increasing collimation protective lens and focus protective lens, carefully protect key components.

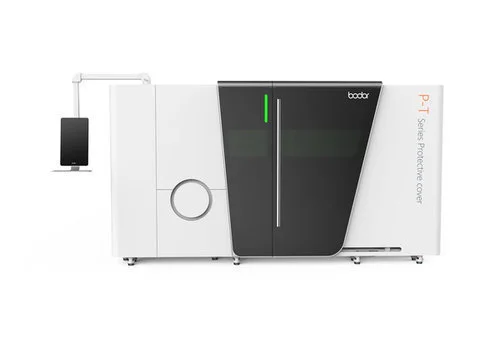

4. Environment Friendly And Healthy - Full protection cover.
Full closed protection improves using security; laser protection glass protect human beings from laser radiation; automatic collection system of smokes and dusts is environment friendly; intelligent monitoring system reduces accident rate, making us enjoy beauty and health in cutting process.
5. Self-centering Chuck.
Automatic electric chuck, claw DC motor drive, The clamping motor current is sensitive, adjustable and stable, The clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, the performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering electric chuck, gear transmission mode, higher transmission efficiency, long working life and high working reliability.
6. Auxiliary Gas Low Pressure Alarm Function.
Providing real-time pressure detection, pushing abnormal information when pressure value is lower than optimal cutting effect and precision. Ensure the cutting performance, accuracy and timeliness of gas replacement.
7. Cast Aluminum Crossbeam.
Integral steel mold pressure casting, light, flexible and efficient.
After artificial aging, solution treatment and finishing, crossbeam owns good integrity, rigidity, surface quality, toughness and ductility. Aluminum alloy’s metal characteristics of light weight and strong rigidity are helpful to high speed movement in processing, and high flexibility is beneficial to high-speed cutting of various graphics based on high accuracy. Light crossbeam can give equipment a high operation speed, improving processing efficiency to ensure processing quality.
8. Aesthetics was introduced to industrial ID, perfect combination of technology and aesthetics.
Powerful hockey stick shaped decorations adopt black acrylic with thickness of 30mm, ice film drawbench silver design of the same car and alpine white sheet metal, the international design style is accepted by global consumer groups. With precise cast iron bed, the whole machine is as firm as a rock. The most reasonable golden ratio and the greatest parts layout make the whole machine more stable, comfortable, accurate, and technological.PC head capsule design through vacuum hot deformation processing makes Z axis so light.
