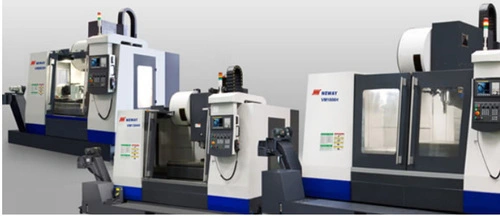

New NEWAY VM1103H/S | Vertical Machining Centers
Have one to sell?
ConditionNew
New
Item VM1103H/S unit
size 1100×520 mm
43.3x20.5 inch
max load 750 kg
1653.4 lb
travel X/Y/Z 1000/520/560 mm
39.4/20.5/22 inch
rapid reverse X/Y/Z 36/36/30(Hseries) m/min
30/30/24(Sseries)
1417.3/1417.3/1181.1 ipm
(Hseries)1181.1/1181.1
/944.9(S series)
10.1/14.8 hp
max spindle speed 8000 rpm
spindle torque（continue/30min） 57／82(H series） N.m
43／60(S series）
42／60.5(H series） ft.ibf
31.7／44.2(S series）
magazine （disc） 24 pc
net weight 7000 kg
15432.1 lb
