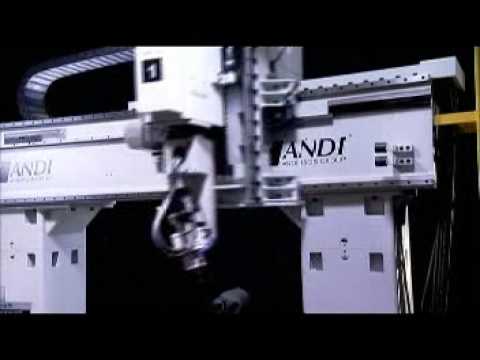

ANDERSON AMERICA MAXXIS (single table)
Have one to sell?
ConditionNew
New
The MAXXIS Series Moving Table 5-axis machining centers set a new level of 5-axis accuracy and machining performance. The combination of a highly rigid base, precision gearbox and high accuracy Servo System makes the MAXXIS an ideal choice for machining plastics, aluminum and composite materials.
The Anderson fixed bridge and moving table design provides easy machine access in a compact easy-to-access design. The webbed steel substructure remains smooth and rigid while all 5-axis are in full 5-axis machining mode. The MAXXIS 5-axis machining centers set a new standard in high speed 5-axis machining.
The MAXXIS 5-axis machining center is designed to handle heavy duty 5-axis machining in thicker thermoformed and resin plastics, aluminum and thicker autoclaved composites.
– Advanced 5-axis CNC features are available on both models
– CNC Controls include Ethernet options to provide remote technical support
– Work piece holding flexibility is provided by optional clamping, grid, or manifold vacuum systems
The MAXXIS utilizes an industry standard G-code for control functions that allows easy interfacing with all major CAD/CAM software and industry standard solid modeling software packages. Additional options include work piece dimension probing, both single and dual zone capabilities and custom configurations upon request.
Basic configuration MAXXIS (single table)
Table Style HPL Grid or
Alum 50mm with T Slots
Zones 1 zone
Table size (metric) 1600mm x 1800mm IP
1600mm x 3100mm IP
Table Height 800mm
Standard Z (stroke) #1 800mm to 1200mm
Standard Z (stroke) #2 1200mm
B and C-axis B : ± 120°
C : ± 270°
Control FANUC 31i or SIEMENS 840D
Router spindle 10 HP, 15 HP
(HSK 63F, 22000rpm)
20 HP (HSK 63E, 18000 rpm)
Type ATC ATC : 10, 16, 20
Ranrob : 12, 16, 20, 32
Barriers n/a
Included Vac. Prep Kit
Pump Size BECKER 500cbm
Safety fence optional
X Drive System Ball Screw
Y Drive System Ball Screw
V Drive System n/a
Z Drive System Ball Screw
rapids/cutting X, Y, Z X;Y;Z=80/80/24m/m
rapids/cutting C, B B&C=90°/sec 24m/m
Remote Internet
Diagnostics yes
Tool Holders n/a
Touch-Off Device optional
Positioning Tolerance
(No Scales X, Y, Z) ± 0.05mm/M
Repeatabilty Tolerance
(No Scales X, Y, Z) ± 0.03mm/M
Positioning Tolerance
(No Scales C, B) ± 45 arcseconds
Positioning Tolerance
(Scales X, Y, Z) ± 0.03mm/M
Repeatabilty Tolerance
(Scales X, Y, Z) ± 0.02mm/M
Positioning Tolerance
(Scales C, B) ± 18 arcseconds
Laser Calibration
(X, Y, Z, C and B) optional
HSSB RISC Look Ahead optional
Vacuum Pump 10 HP
Vacuum Pump 2-10 HP optional
Vacuum Pump 25 HP optional
Manifold for Vacuum optional
