CNC Routers( 5 Axis CNC Series)
Have one to sell?
ConditionNew
New

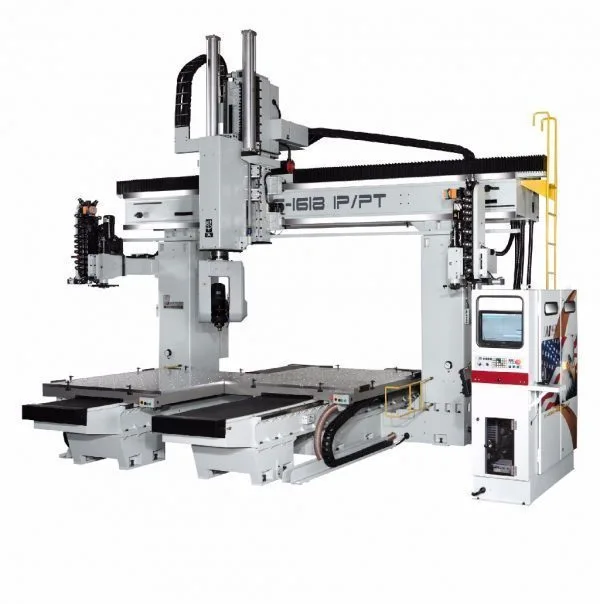

The AXXIOM Series Moving Table 5-axis machining centers set a new level of 5-axis accuracy and machining performance. The combination of a highly rigid base, precision gearbox and high accuracy Servo System make the AXXIOM an ideal choice for machining plastics, aluminum and composite materials.
The Anderson fixed bridge and moving table design provides easy machine access in a compact easy-to-access design. The webbed steel substructure remains smooth and rigid while all 5-axis are in full 5-axis machining mode. The AXXIOM 5-axis machining centers set a new standard in high speed 5-axis machining and is designed to handle high speed trimming, slotting and drilling in thin rigid materials, such as thermoformed plastics and autoclaved composites. It utilizes an industry standard G-code for control functions that allows easy interfacing with all major CAD/CAM software and industry standard solid modeling software packages. Additional options include work piece dimension probing, both single and dual zone capabilities and custom configurations upon request.
Basic configuration AXXIOM (twin table)
Table Style HPL Grid
Zones 1 zone x2
Table size (metric) 1600mm x 1800mm IP
1600mm x 3100mm IP
Table Height 800mm
Standard Z (stroke) #1 800mm
Standard Z (stroke) #2 1200mm
B and C-axis B : ± 100°
C : ± 200°
Control Syntec Five Axis
Router spindle HSK 32E, 11 HP (40,000rpm)
Type ATC 8
Barriers n/a
Included Vac. Prep Kit
Pump Size BECKER 250cbm
Safety fence optional
X Drive System Rack
Y Drive System Rack
V Drive System Rack
Z Drive System Ball Screw
rapids/cutting X, Y, Z X;Y;Z=60/60/20m/m
rapids/cutting C, B B&C=60°/sec 24m/m
Remote Internet
Diagnostics yes
Tool Holders yes
Touch-Off Device optional
Positioning Tolerance
(No Scales X, Y, Z) ± 0.05mm/M
Repeatabilty Tolerance
(No Scales X, Y, Z) ± 0.03mm/M
Positioning Tolerance
(No Scales C, B) ± 45 arcseconds
Positioning Tolerance
(Scales X, Y, Z) ± 0.03mm/M
Repeatabilty Tolerance
(Scales X, Y, Z) ± 0.02mm/M
Positioning Tolerance
(Scales C, B) ± 30 arcseconds
Laser Calibration
(X, Y, Z, C and B) optional
HSSB RISC Look Ahead optional
Vacuum Pump 10 HP optional
Vacuum Pump 2-10 HP optional
Vacuum Pump 25 HP optional
Manifold for Vacuum optional
