CNC Routers( 5 CNC Series)
Have one to sell?
ConditionNew
New

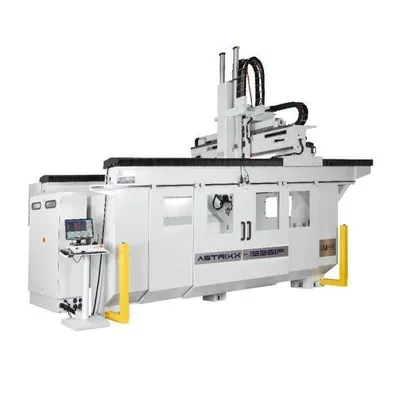

ASTRIXX Series
The ASTRIXX is a high speed gantry five axis machining center for high speed trimming and machining of thin gauge plastics, composites and layer materials. The combination of a highly rigid base, precision gearbox, high accuracy servo systems, high-speed drives and high rpm spindles make the ASTRIXX an ideal choice for machining thin gauge plastics, aluminum and composite materials.

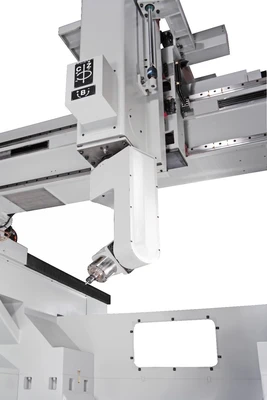

The Anderson dual-zone gantry design provides easy machining access in a compact easy-to-access machine base. The webbed steel substructure remains smooth and rigid while all five axes are in full 5-axis machining mode.
The ASTRIXX 5-axis machining centers sets a new standard in high-speed 5-axis machining.
Basic configuration STRATOS Pro
Standard Controller FANUC
Optional Controller Syntec
HP 11
Taper/Cone HSK-63F
Max RPM 24.000 rpm
Cooling(std) air-cooled
Optional Cooling water-cooled
No. of Tools 10
Type Dynamic(moves with spindle)
No. of Tool Holders/collets included with machine 43028
No. of Vertical Spindles 10 + 7
No. of Horizontal Spindles (2X) + (2Y)

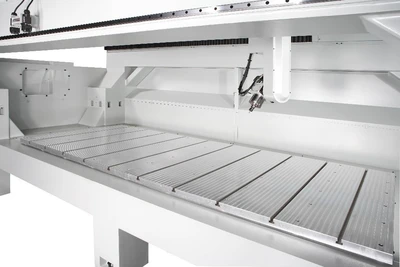

Size 1600 x 3700mm
No. of Vacuum Zones 2
Part Locating Pop-Up Pins 15
Table top part material Hi-pressure phenolic-grid
Table base Steel Construction
No. of Pumps 2
HP 7.5 Kw
Optional Vacuum Pumps(HP) 7.5 Kw,19 Kw, 30 Kw, 37 Kw
Auto Tool Length Setter inclusive
Manual Jog Control(MPG) inclusive
Aluminum Table Top in lieu of Phenolic top optional
Bar code reader optional
Touch Screen optional
C-axis optional
Reverse Air Flow for Vacuum Table optional
Mister for cutting tools optional
Automated Material Handling optional
Manual Material Handling optional
Additional Table Length & X-axis Stroke 6M, 7M, 9M, 12M, 15M
