Stratos Pro Auto & Full Auto
Have one to sell?
ConditionNew
New

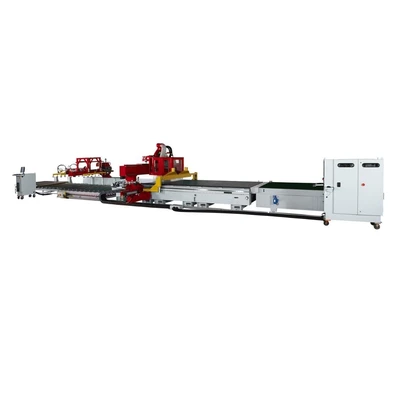

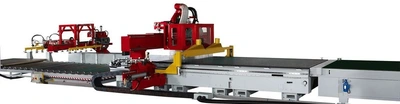

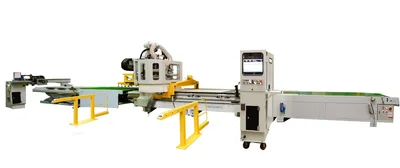

The STRATOS Series Moving Gantry
3-axis machining centers set a new level of CNC accuracy and machining performance. The combination of a highly rigid base, steel weldments and castings and high accuracy Servo System make the STRATOS machining centers an ideal choice for machining wood, MDF, plywood, plastic, honeycomb aluminum and solid surface materials.
The Anderson Traveling Gantry design provides easy machine access. The modular concept comes in a variety of machine formats and sizes. The STRATOS machining centers set a new standard in cost effective, high speed CNC machining. CNC Controls include Ethernet options to provide remote technical support; optional C-axis available. Work piece holding flexibility is provided by optional clamping, grid or manifold vacuum systems. The STRATOS CNC Machining Center utilizes an industry standard G-code for control functions that allows easy interfacing with all major CAD/CAM software and industry standard solid modeling software packages. Additional options include work piece dimension probing, both single and dual zone capabilities and custom configurations upon request.
Basic configuration STRATOS Pro
Standard Controller FANUC
HP 18 / 24 / Vector
Taper/Cone HSK-63F
Max RPM 24.000 rpm
Cooling(std) air-cooled
Optional Cooling water-cooled
No. of Tools for Ride
Along Automatic
Tool Changer 10 / 12 / 16

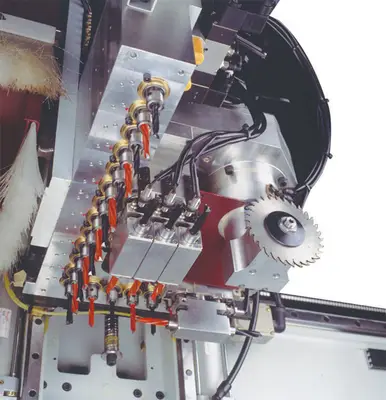

Boring Block Options 5 + 5
10 + 7+1+1
13+7+1+1
10|10+10|10
Table Size Options (Ft) 5 x 12
5 x 20
5 x 24
5 x 30
Z-Axis Height Options: 350 mm
400 mm
450 mm
500 mm
600 mm
No. of Vacuum Zones 4

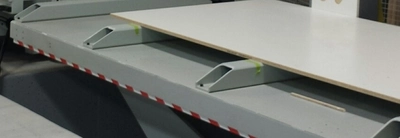

Part Locating
Pop-Up Pins 11 or 16
Table top part material Hi-pressure phenolic-grid
Table base Steel Construction
Optional Vacuum
Pumps(HP) 10 / 25 / 40 HP
Auto Tool Length Setter inclusive
Manual Jog Control(MPG) inclusive
Aluminum Table Top optional
Bar code reader optional
Touch Screen optional
C-axis optional
Reverse Air Flow for
Vacuum Table optional
Mister for
cutting tools optional

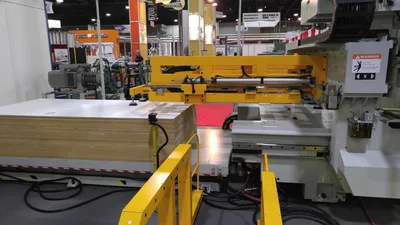

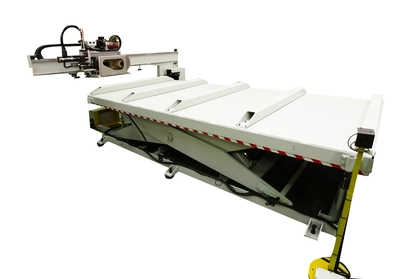

Automated Material
Handling optional
Manual Material
Handling optional
