EXXACT Duo Series
Have one to sell?
ConditionNew
New

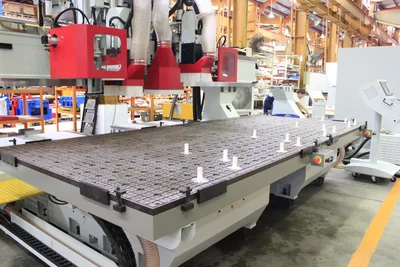

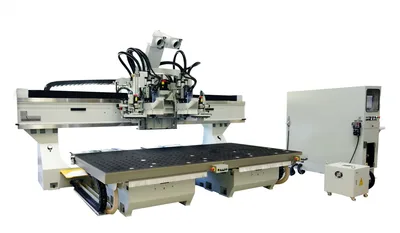

The EXXACT Series Moving Table 3-axis machining centers set a new level of CNC accuracy and machining performance. The combination of a highly rigid base, steel weldments and castings and high accuracy Servo System make the EXXACT an ideal choice for machining wood, MDF, plywood, plastic, aluminum and composite materials.

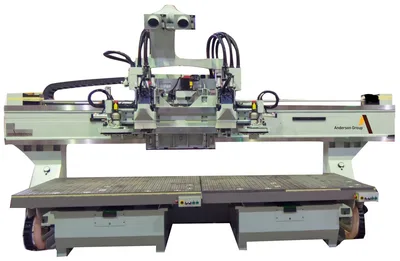

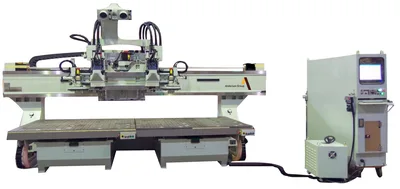

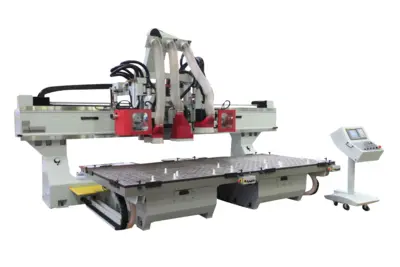

The Anderson fixed bridge and moving table design provides easy machine access. The webbed steel substructure remains smooth and rigid while cutting in X, Y and Z-axis. The EXXACT CNC machining centers set a new standard in high speed CNC machining as it is designed to handle heavy duty CNC machining in various thicknesses flat and aluminum plate. CNC Controls include Ethernet options to provide remote technical support; optional C-axis is available. Work piece holding flexibility is provided by optional clamping, grid or manifold vacuum systems. The EXXACT CNC Machining Center utilizes an industry standard G-code for control functions that allows easy interfacing with all major CAD/CAM software and industry standard solid modeling software packages.
Features:
TC

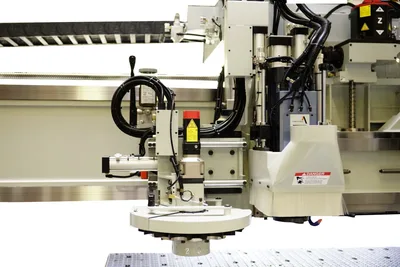

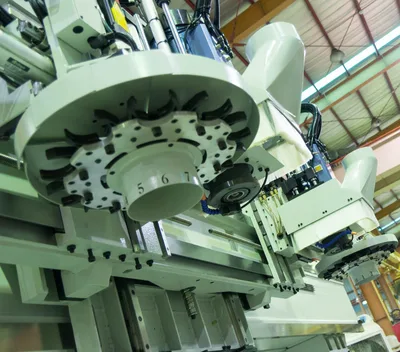

One ANDI HSK-63F spindle with 10 position tool carousel. Standard spindle configuration is a 15 HP Air cooled dynamic (travels with spindle) router spindle 0-24000 rpm. 10, 12 or 16- position automatic tool changers are options. Robotic Arm Tool Changer and Water Cooled spindle versions are available.
TC+D
One ANDI HSK-63F spindle with 10-position tool carousel and one 32 mm 5×5 Vertical Drill Block.
Optional horizontal drills and grooving saw.
TC2

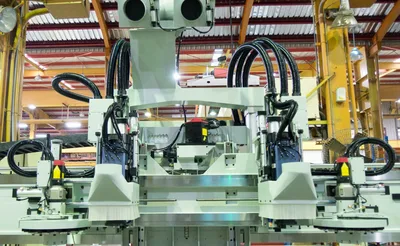

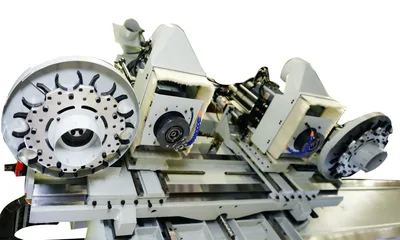

Two ANDI HSK-63F spindles each with 10- position tool carousel.
TC2+D
Two ANDI HSK-63F spindles with 10-position tool carousel.
One 32 mm 5×5 Vertical Drill Block.
TC2+D2
Two ANDI HSK-63F spindles with 10-position tool carousel.
Two 32 mm 5×5 Vertical Drill Block
Basic configuration EXXACT Plus Duo
Standard Controller FANUC
Optional Controller Syntec
HP 11
Taper/Cone HSK-63F
Max RPM 24.000 rpm
Cooling(std) air-cooled
Optional Cooling water-cooled
No. of Tools 10
Type Dynamic(moves with spindle)
No. of Tool Holders/collets included with machine 43028

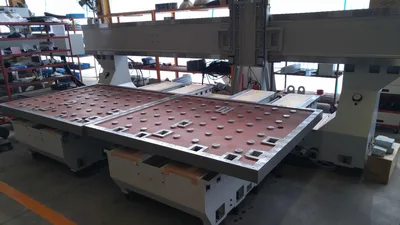

Size 1600mm x 1829mm x 2 tables
No. of Vacuum Zones 1
Part Locating Pop-Up Pins 8

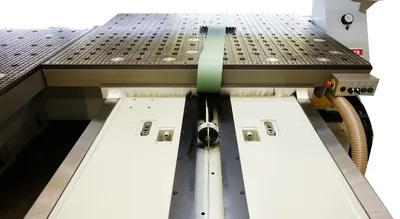

Table top part material Hi-pressure phenolic-grid
Table base Steel Construction
No. of Pumps 2
HP 7.5 Kw
Optional Vacuum Pumps(HP) 7.5 Kw, 19 Kw, 30 Kw, 37 Kw
Auto Tool Length Setter inclusive
Manual Jog Control(MPG) inclusive
Additional Spindles 11, 15
Aluminum Table Top in lieu of Phenolic top optional
Bar code reader optional
Touch Screen optional
C-axis optional
Reverse Air Flow for Vacuum Table optional
Mister for Cutting Tools optional
Line Boring Units(no of spindles) 10, 17
Additional Tool Storage 16, 20, 32 tools
Manual Material Handling optional
