2000 Haas VF4 Vertical Machining Center

Have one to sell?
319-450-5772
rojekindustrialrepair@gmail.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF-4
Condition:
Good
Year:
2000
Stock #:
84849
Status:
For Sale
Serial #:
19480
Country:
United States

Description

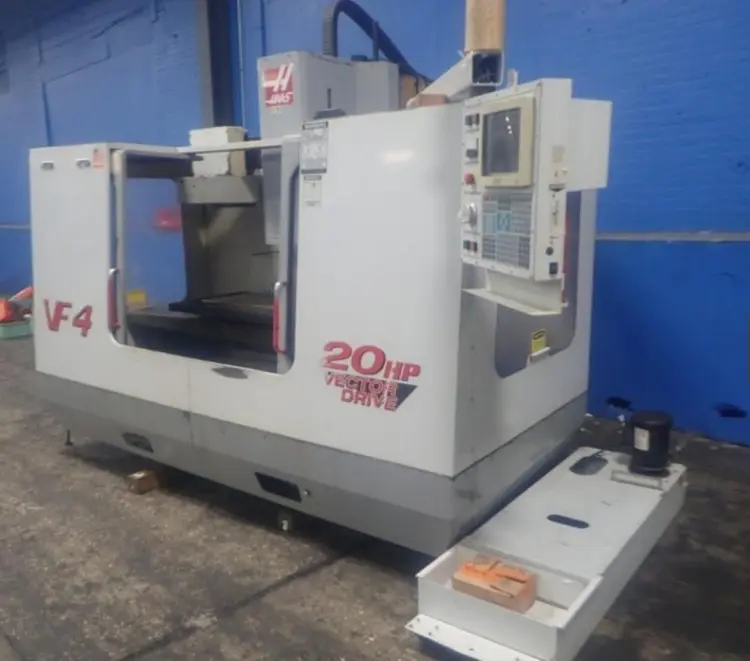

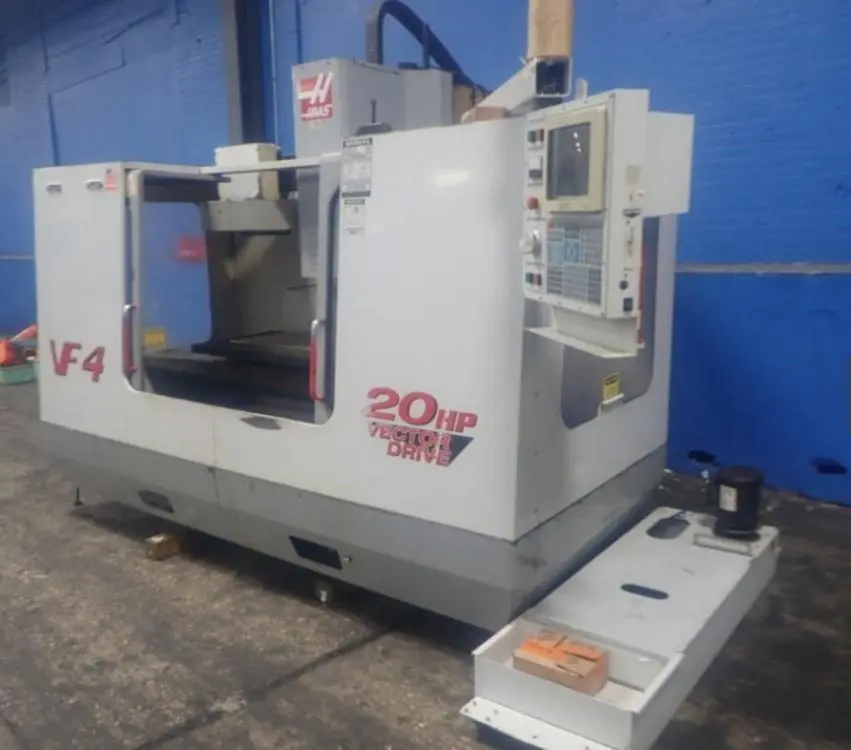

Preowned Haas Vertical Machining Center, Model #: VF4, S/N: 19480, Year: 2000

X50"1,270 mm
Y20"508 mm
Z25"635 mm
Power30 hp22.4 kW
RPM7,500 RPM7,500 RPM
# ATC2020
TaperCT 40CT 40
Table-W18"457.2 mm
Table-L52"1,320.8 mm
# Axis33

# Axis 3
X-Axis Travel 50 inches
Y-Axis Travel 20 inches
Z-Axis Travel 25 inches
Spindle to Table Distance 4" -29"
Spindle Speed Up to 7,500 RPM
Spindle Taper CT 40
Table Size 52" X 18"
Tool Magazine Capacity 20 ATC
Maximum Tool Capacity 12 pounds
Dimensions 110" X 118" X 96" H
Weight 13300 pounds
Motor 208/230 V, 3 PH, 50/60 HZ
Full Load 40 Amps
Argest Load 30 Amps
Interrupting Capacity 10,000 Amp

Programmable Coolant
Quick Code - Conversational
Macro Programming
Quadrant Rotating/Scaling
Probing Capability
4th Axis Guard
