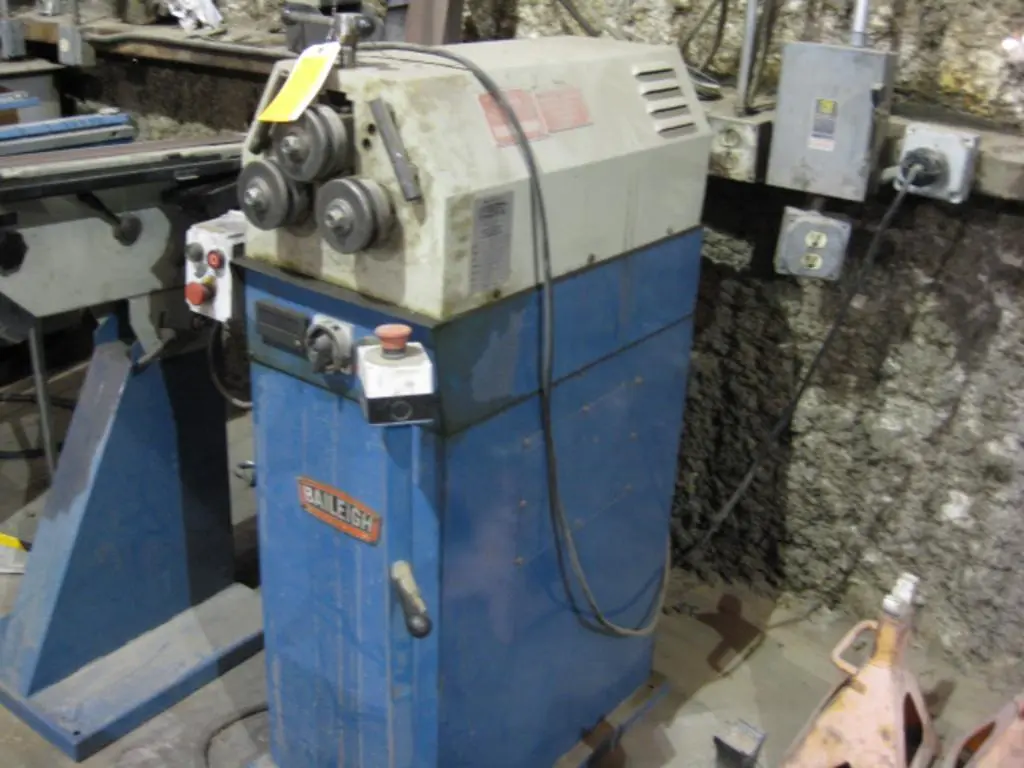

BAILEIGH R-M20-220 Tube Bender

Specs
Driven Rolls 2
Roll Adjustment Manual
Pipe Capacity Size: .5” (sch.40) / Min. Dia.: 14”
Round Tube Capacity Size: 1" (.0625") Min. Dia.: 16"
Square Tube Capacity .75" (.0625") Min. Dia.: 12"
Solid Round Capacity Size: .5" Min. Dia.: 5"
Flat Bar Easy Way Size: 1.75" Min. Dia.: 12"
Flat Bar Hard Way Size: 1" Min. Dia.: 8"
Angle Iron Capacity Size: .75" (.125") Min. Dia.: 10"
Shaft Diameter .78 inches
Shaft Center Distance Lower Rolls 10.88 inches
Upper Roll Dia. 3.38 inches
Lower Roll Dia. 3.38 inches
Pinch Single
Power 220V - 3-Phase
Shipping Weight 420 pounds
Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile
Strength – Mild Steel.
Shipping Dimensions 60" x 44" x 59"
