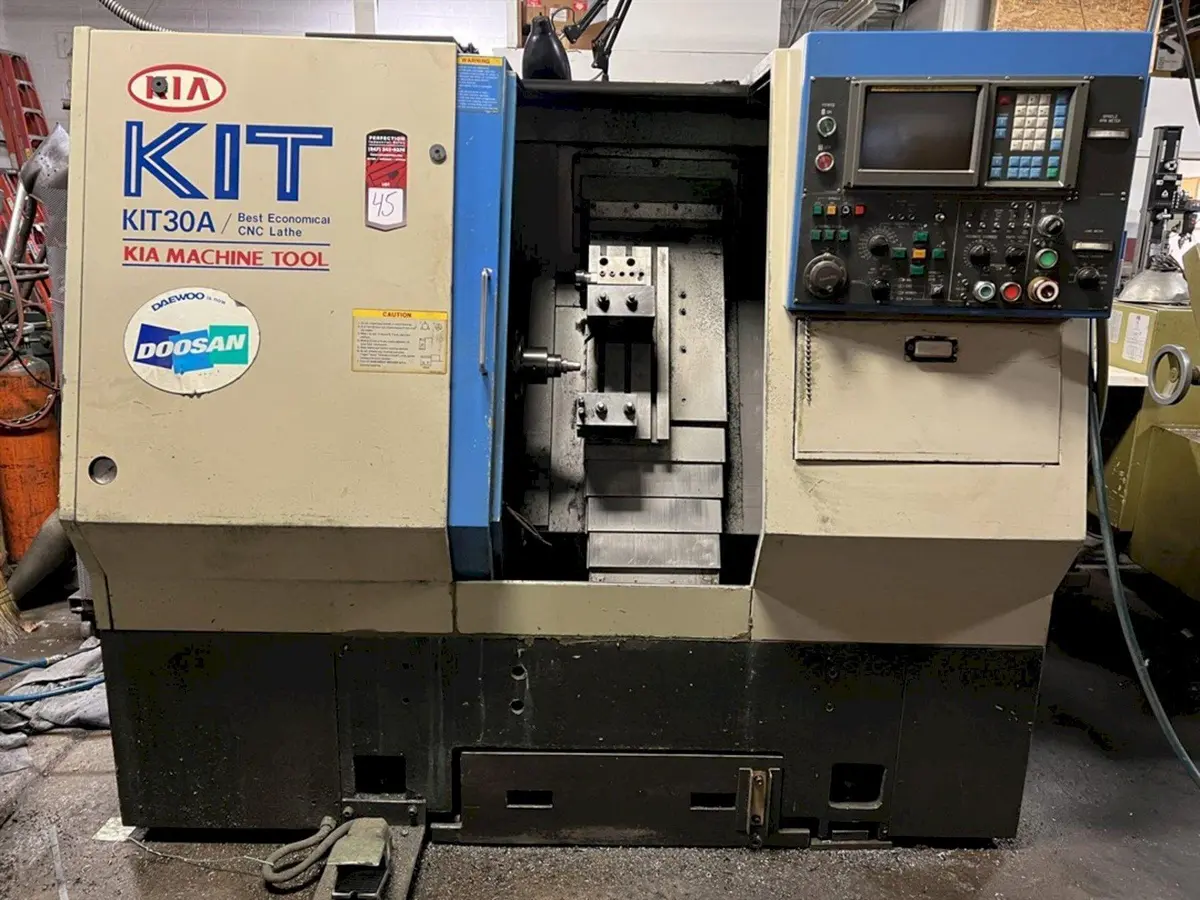

KIA KIT30A Turning Center

Have one to sell?
319-450-5772
rojekindustrialrepair@gmail.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC Lathes
Manufacturer:
KIA
Model:
KIT30A
Condition:
Good
Year:
1995
Stock #:
85407
Status:
For Sale
Serial #:
30980

Description

PREOWNED KIA TURNING CENTER, MODEL #: KIT30A

Swing18.9"480.06 mm
Machining Length9.8"248.92 mm
Chuck Size6"152.4 mm
Bar Capacity1.5"38.1 mm
Power7.5 hp5.6 kW
Max RPM0 RPM0 RPM
Turning Dia5.9"149.86 mm
TailstockNoNo
Dimensions84"L x 57"W x 66"H84"L x 57"W x 66"H
Weight61736173

Specs:
Max Swing Over Bed: 18.9 inches
Max Swing Over Cross Slide: 6.69 inches
Max Part Diameter: 5.9 inches
Max Part Length 7.9 inches
Standard Chuck Size 6 inches
Cross Travel (X-Axis) 9.8 inches
Longitudinal Travel (Z-Axis) 15.7 inches
Rapid Traverse Rate (X-Axis) 1,181 IPM
Rapid Traverse Rate (Y-Axis) 1,181 IPM
Type of Tool Support Gang
Gang Positions 8
Bar Capacity 1.5 inches
Spindle Speed Range (1 RPM Increments) 50-5,000 RPM
Spindle Horsepower 7.5 HP
Approximate Machine Dimensions 84" x 57" x 66"
Approximate Machine Weight 6173 pounds

Fanuc 0-T Control
Collet Chuck
