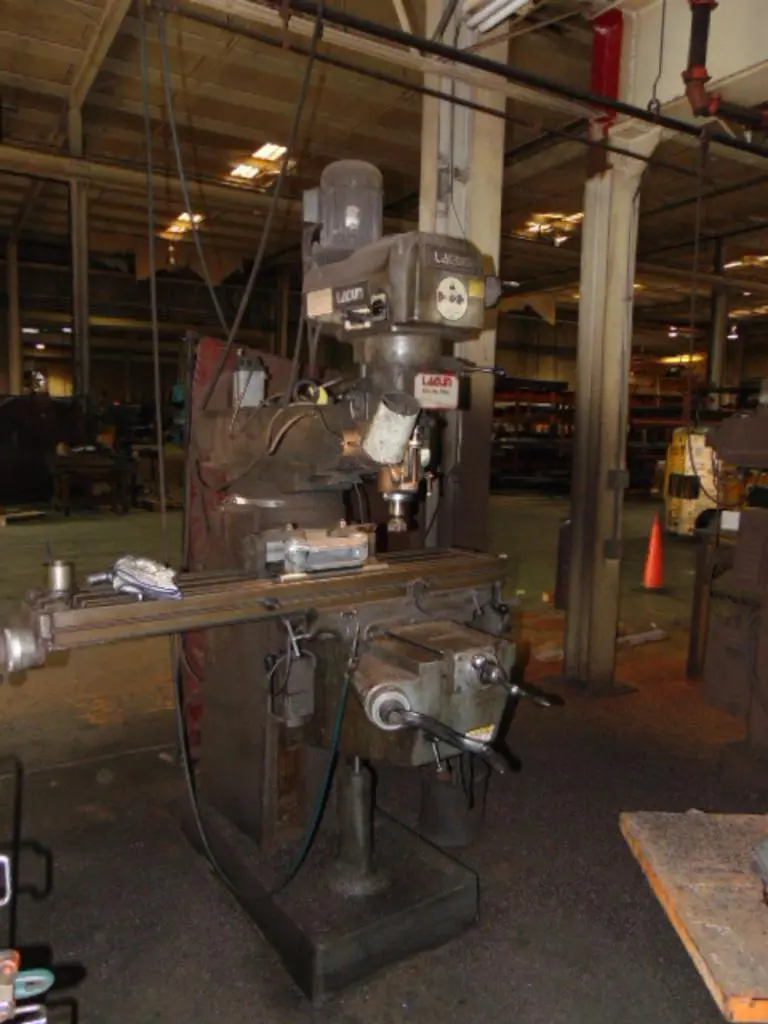

LAGUN FTV-2 Vertical Turret Milling Machine

Specs
X-Axis Table Travel 33 inches
Y-Axis Table Travel 16 inches
Z-Axis Table Travel (knee) 16 inches
Quill Travel 5 inches
Ram Travel 22.1875 inches
Surface Area 50″ x 10″
T-Slot Center Distance 3 @ 2.5″ centers
T-Slot Sizes 0.625 inches
Maximum Weight of Workpiece 750 pounds
Spindle Taper R8
Spindle Diameter 1.875 inches
Quill Diameter 3.375 inches
Distance Spindle to Table (maximum) 18 inches
Distance Spindle to Column (minimum / maximum) 5″ to 27″
Speeds 55 to 4,250 RPM
Power Quill Feed 0.0015″/rev, 0.003″/rev & 0.006″/rev
Motor 3 Horsepower, 220 / 380-440 Volt, 50 / 60 Hz
Head Swivel 90°
Head Tilt 90°
Head Cant 45°
Dimensions 5' x 6' x 5'
Weight 4000 pounds
