Summit Model:20-4X60 Engine Lathe
Have one to sell?
ConditionUsed
1 available

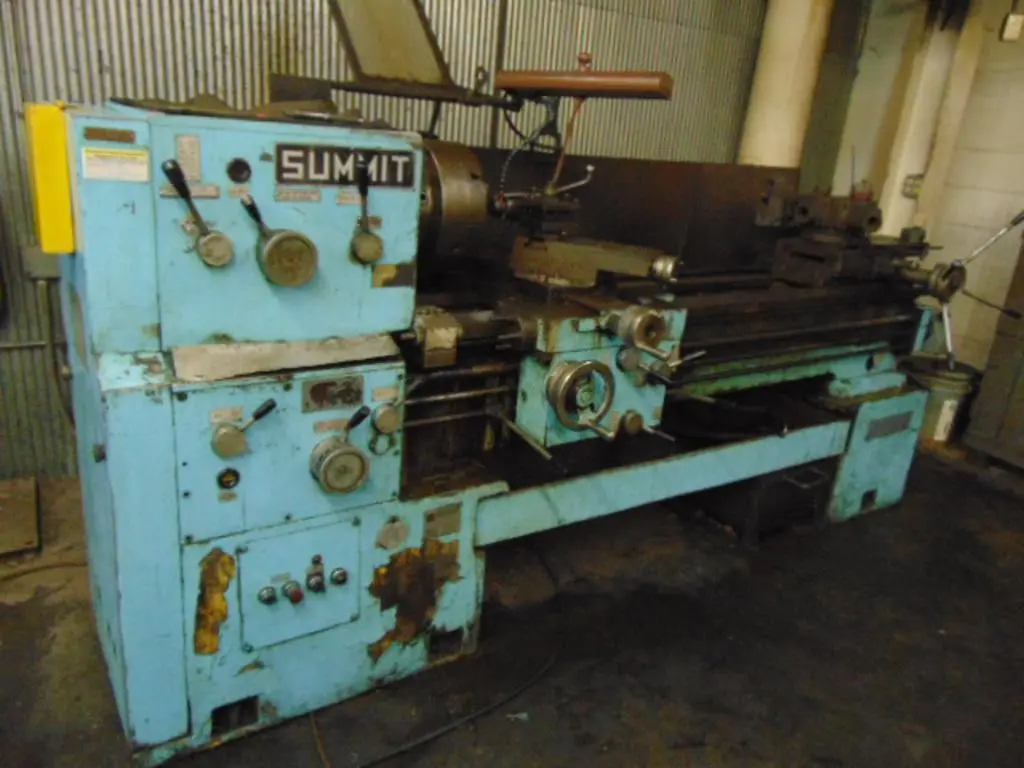

1 - PREOWNED SUMMIT 20" X 60" ENGINE LATHE, MODEL #: 20-4X60
Specs
Swing Over Bed 20.125 inches
Swing Over Cross Slide 11.875 inches
Swing Over Gap 27.625 inches
Gap Length 15 inches
Hole Through Spindle 4.125 inches
Threads – Inch .125″ – 60 (64)
Threads – Metric .5 – 120 mm ( 64 )
Diameter of 3-Jaw Chuck 12 inches
Longitudinal Feeds Range .00145 – .44474 (124)
Cross Feeds Range .0007 – .22237 (124)
Spindle Speed 11.5 - 1,500 RPM
Power 10 horsepower
Coolant Pump 1/4 HP
6 Position Bed Turret
Tailstock
Steady Rest
