Used 1998 SUMMIT HTM4W/TNC124 | Horizontal Table Type Boring Mills
Have one to sell?
ConditionUsed
1 available

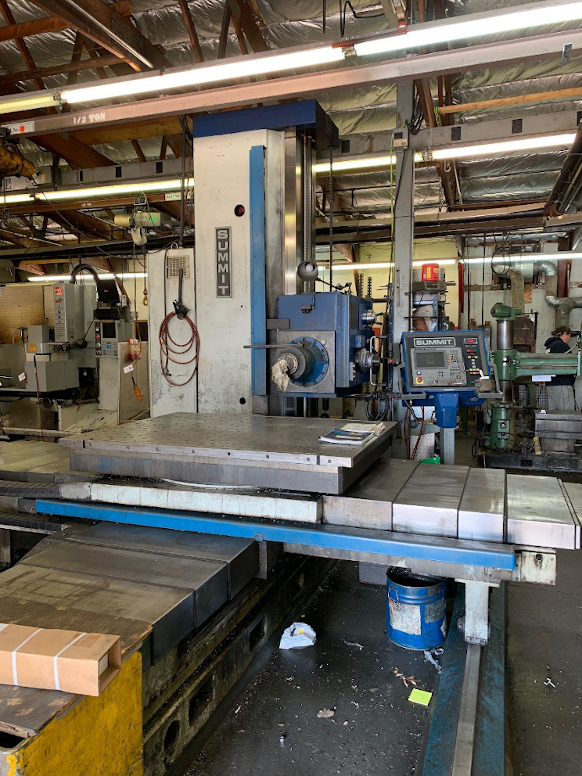

PREOWNED SUMMIT HORIZONTAL BORING MILL, MODEL #: HTM4W/TNC124, S/N: 51-LB-034S, YEAR: 1998
DELIVERY: IMMEDIATE, SUBJECT TO PRIOR SALE
TABLE SIZE ------------------ 48 in X 64 in
SPINDLE SIZE ---------------- 4 in
SPINDLE TAPER --------------- 50
MOTOR ----------------------- 220V, 3PH
X-AXIS ---------------------- 86 in
Y-AXIS ---------------------- 63 in
Z-AXIS ---------------------- 31 in
QUILL TRAVEL ---------------- 27.5 in (700MM)
SPINDLE SPEEDS -------------- (18) 16 - 1,600 RPM
DIMENSIONS ------------------ 240 in X 192 in X 180 in TALL
WEIGHT ---------------------- 44,000 LBS
SPECIFICATIONS SUBJECT TO VERIFICATION
HEIDENHAIN TNC124 CONTROL
POINT TO POINT FULL 3 AXIS. ONLY MOVE ONE AXIS AT TIME.
