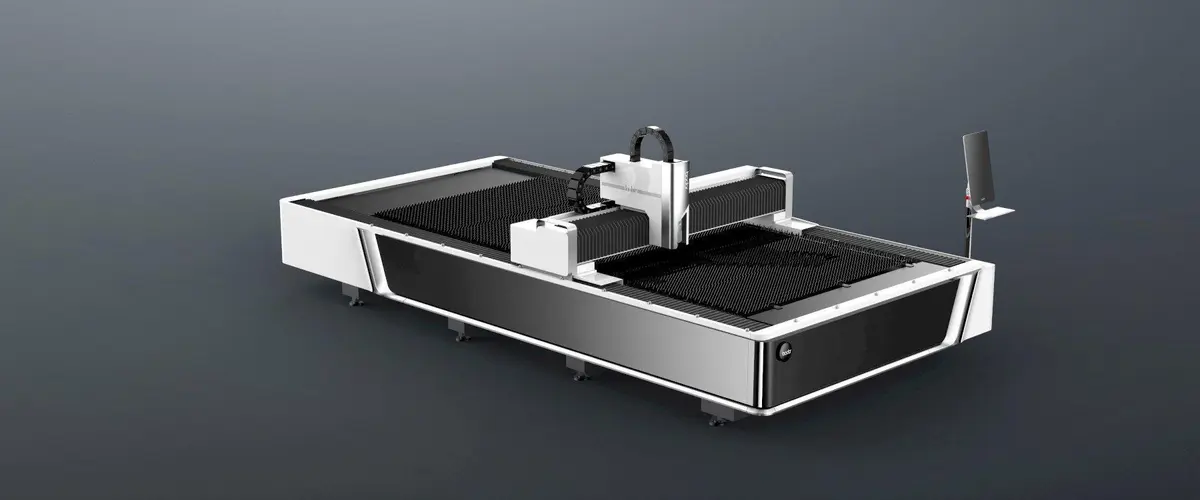

BODOR A4P | Laser Cutters

FIBER LASER CUTTING MACHINE
Loading Container 1* 20GP
Freight&Tariff Included
Installation & Training Cost Included
Transportantion By Sea
Payment Terms 30% down payment,70% before shipment.
Warranty Three years limited warranty for main parts. One year free labor.
Basic Parameter
Working area 4000mm*2000m(6'x12')
Max. linkage speed 100m/min(328ft/min）
Configuration
Laser source Bodor Power
Laser head BodorGenius
Machine bed Mortise-and-tenon structure bed
Gantry structure Stretched Aluminum gantry
Linear Rails Bodor
Rack Bodor
X-axis、Y-axis、Z-axis、A-axis
Servo motor and driver Bodor
Integral aluminum cantilever for high pressure steel mould casting Yes
Control system Bodor Thinker
Display size 21.5 inches
System identification file format DXF、DWG、PLT、NC、G file
Intelligent alarm Yes
Water Chiller Yes
Power Requirements 220V/440V/480V 60HZ 3PHASE (Up to Clients Power Requirement)
Total power capacity/current with 6KW source 46.8KVA/71.2A
Total power capacity/current with 3KW source 40.5KVA/61.5A
Intelligent Function
Bodor Lightning perforation technology Yes
High Speed Cutting Expert Database Yes
Remnant Typesetting Yes
Automatic adjustment of cutting gas pressure O2
Auto-focus of laser head Yes
Laser cutting technology expert database Yes
Ergonomic Remote Control (Bodor Mango®) Yes
Touchscreen Display No
Active anti-collision function Yes
Intelligent anti-shake of sheet edge Yes
High quality Cutting Expert Database Yes
Anti-slag Protection Yes
Mineral casting anti burning Yes
Gas-saving steady flow nozzle Yes
Automatic lubrication Yes
Intelligent maintenance reminder Yes
WIFI internet connection Yes
Bodor Cloud sevice Yes
Performance
Requirements for sheet Plate thickness≥0.8mm
Max. acceleration 1.5G
Table load bearing 1256kg（1-3kw）
1570kg（6kw）
Machine overall dimensions 5699*3396*1828mm
Overall weight 2800kg
Z axis travel 100mm
Positioning accuracy ±0.05mm/m
Repositioning accuracy ±0.03mm
Φ30mm roundness ≤0.15mm
□30mm adjacent side dimension difference ≤0.06mm
□190mm adjacent side dimension difference ≤0.15mm
□190mm diagonal size difference ≤0.20mm
6kW /3kW / 1.5kW is available in this model.
