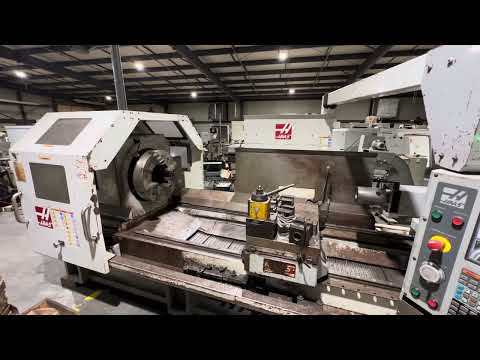

Used 2007 HAAS TL-4 | CNC Lathes
Have one to sell?
ConditionUsed
1 available

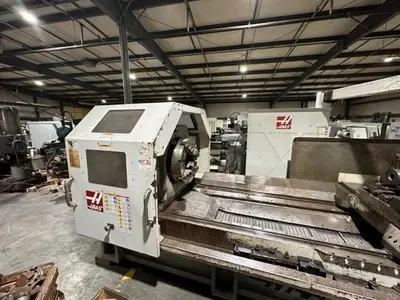

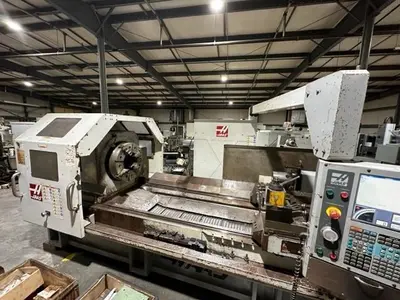

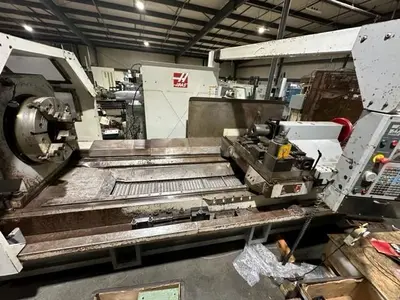

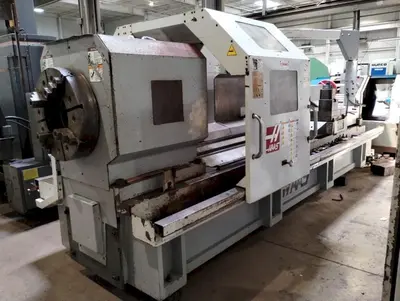

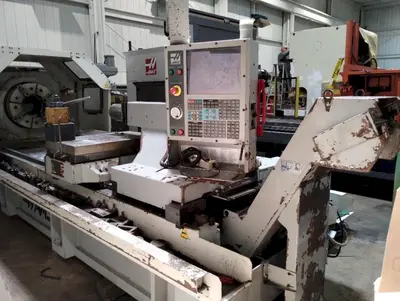

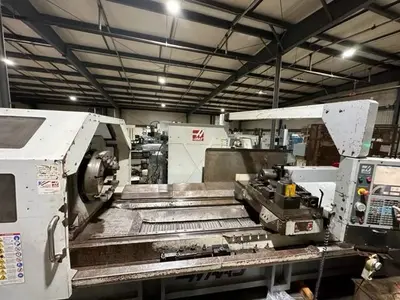

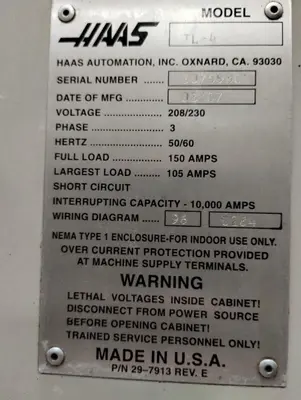

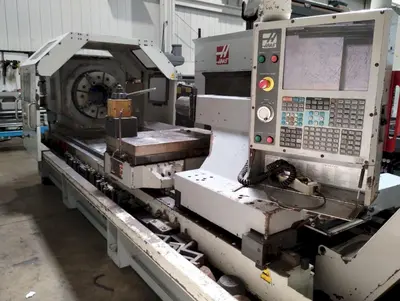

PREOWNED HAAS FLAT BED CNC LATHE, MODEL #: TL-4, S/N: 3075980

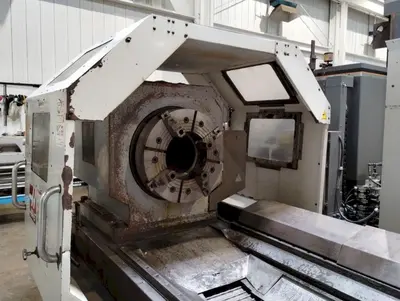

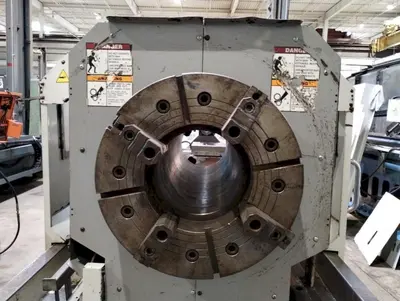

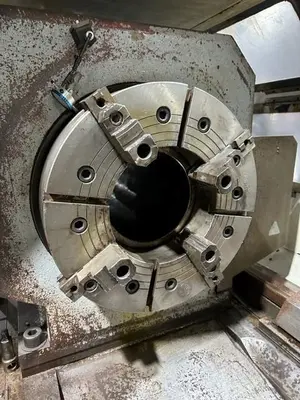

Chuck Size 25 inches
Swing Over Bed Ways 35 inches
Swing Over Cross Slide 16 inches
Max. Turning Length 80 inches
Distance Between Centers 91 inches
Spindle Speed (RPM) 500
Spindle Bore 12.55 inches
Max Bar Capacity 10.8 inches
Spindle Nose A1-20
Main Motor 55 HP
Number of Turret Positions 4 Tools
X-Axis Travel 18 inches
Z-Axis Travel 80 inches

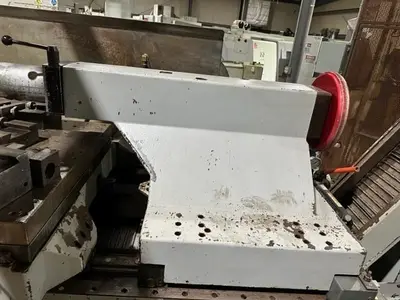

Stroke of Quill 5.9 inches
Quill Taper MT #5
Rapid Traverse (X & Z) 150 IPM & 320 IPM
Approx Floor Space (L x W x H) 234″ x120″ x 87″
Weight 25880 pounds
* CHIP CONVEYOR
