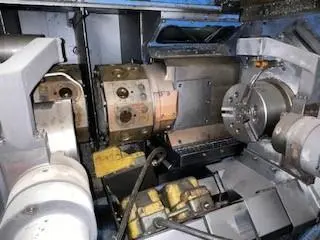

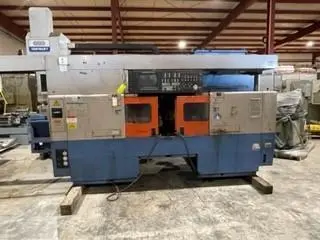

Used MAZAK MULITPLEX 620 | CNC Lathes

Max. Swing 15.35 inches
Max. Cutting Diameter 10.24 inches
Max. Cutting Length for Chuck Work 7.09 inches
Distance Between Spindle Faces 10.82" - 46.45"
X-Axis Travel, Turrets #1 & #2 9.05 inches
Z-Axis Travel, Turrets #1 16.92 inches
Z-Axis Travel, Turrets #2 19.09 inches
Bar Capacity 2 inches
Spindle Speeds 3,600 RPM
Spindle Motor 25 horsepower
Spindle Bore 2.4 inches
Rotary Tools Speed 35 ~ 4000 RPM
Turret Type 2 x 12 Pos. Drum
Number of Turrets 2 x 12, 24 Pos.
Rapid Traverse X, Z / C 945 IPM / 400 RPM
Approximate Machine Dimensions 143"(LR) X 74"(FB) X 81"(H)
Approximate Weight 17860 pounds
Live Tooling yes
