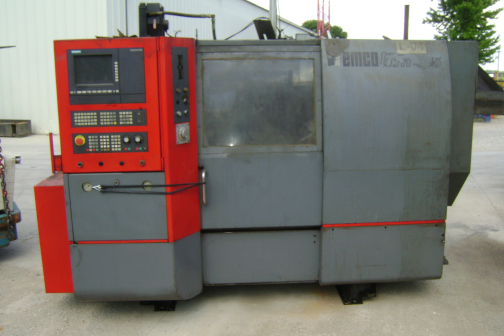

Used EMCO EMCOTURN 465 | CNC Lathes

SPINDLE HOLE ----------------- 73 MM 2.87 in
TURNING DIAMETER ------------- 160 MM 6.3 in
BAR DIAMETER ----------------- 65 MM 2.56 in
TURNING LENGTH --------------- 186 MM 7.4 in

CARRIAGE:
LONGITUDINAL TRAVEL (Z-AXIS) LINKS 270 MM 10.6 in
LONGITUDINAL TRAVEL (X-AXIS) LINKS 235 MM 9.3 in

CARRIAGE:
LONGITUDINAL TRAVEL (X-AXIS) RECHTS 235 MM 9.3 in
CROSS TRAVEL (X-AXIS) RECHTS 680 MM 26.8 in

TURRET INDEX TIME ----------------- .1 SECOND
TOOL HOLDER ----------------------- VDI 30
LEFT SPINDLE DRIVE MOTOR ---------- 20 HP
RIGHT SPINDLE DRIVE MOTOR --------- 15 HP
LIVE TOOL DRIVE MOTOR ------------- 7.5 HP
ELECTRICAL SYSTEM ----------------- 440/3/60
TURRET SLIDE ---------------------- NUMBER 2
NUMBER OF POSITIONS TURRET -------- (1) 12
NUMBER OF POSITIONS TURRET -------- (2) 12
DRIVEN TOOLS TURRET --------------- (1) 12
SPINDLE SPEEDS -------------------- 0-4,000 RPM
DRIVEN TOOLS TURRET --------------- (2) 12
SPINDLE SPEEDS -------------------- 0-4,000 RPM
SPINDLE NOSE: --------------------- VDI 30 A-6
INNER CONE DIAMETER -------------- 30 MM
TAPER IN SPINDLE: ----------------- A6
INNER TAPER TYPE ------------------ F66
SPINDLE SPEEDS: ------------------- 4000 RPM

BACK SPINDLE:
BACK SPINDLE MOBILE:
RAPID TRAVERSE -------------------- 12 M/MIN 39.3 ft /MIN
SPINDLE MOTOR --------------------- 11 / 7,5 KW
TOTAL POWER REQUIRED -------------- 35 KVA
MACHINE ftS WEIGHT ABOUT ------------ 5,000 KG 11,000 LBS

OVERALL DIMENSIONS MACHINE:
LENGTH ---------------------------- 2,985 MM 117.5 in
WIDTH ----------------------------- 2,190 MM 86.2 in
HEIGHT ---------------------------- 1,900 MM 74.8 in

VARIOUS ACCESSORIES:
COLLET DEVICE
SET OF COLLETS -------------------- F66 LAMP
COLLANT SYSTEM -------------------- 200 L 52.8 GAL

FEATURES:
FULL SPLASH CABIN
BAR FEEDER FMB
TYPE TURBO 10-65
TOOL CABINET
CENTRAL LUBRIFICAITION
INTERFACE SERIAL PORT RS 232
C AXIS WITH INTERPOLATION LINKS / RECHTS
C AXIS RESOLUTION MAX. 0,001 ??
BACK WORKING UNIT (D AXIS)
