Used MILLTRONICS RH-20 SERIES K | Vertical Machining Centers (5-Axis or More)
Have one to sell?
ConditionUsed
1 available

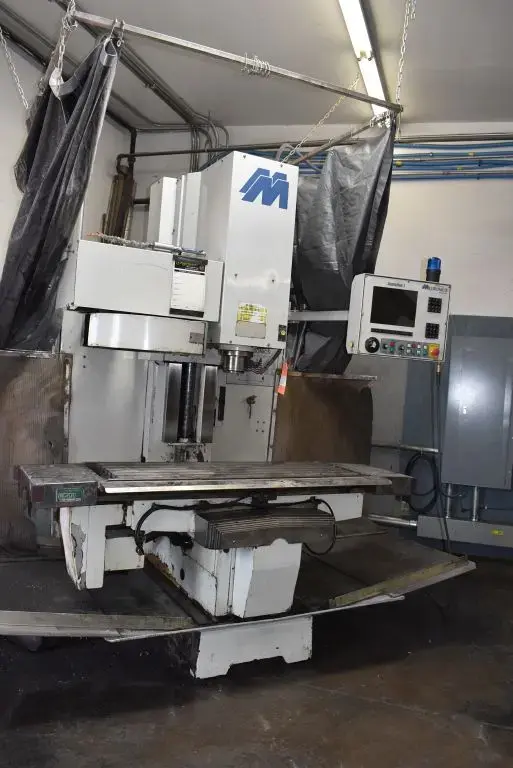

PREOWNED MILLTRONICS CNC VERTICAL TOOL ROOM MILL, MODEL #: RH-20 SERIES K, S/N: 9816
Spindle 8,000 RPM, #40 Taper
X-Axis Travel 40 inches
Y-Axis Travel 20 inches
Z-Axis Travel 24 inches
Table Size 16" x 54"
Table Capacity 2500 pounds
HP/ Torque 24HP / 85' lbs
Motor 220 Volts, 3 Ph
X/Y Rapid Travel Rate 500/300 IPM
Max. Cutting Feed Rate 300 IPM
Positioning Accuracy .0004 inches
Repeatability 0.0002 inches
Axis Thrust Force 3,000/4,000 Lbs
Approximate Dimensions 79" x 81" x 89"
Approximate Weight 8000 pounds
Machine Height 103 inches
Floor Space Requirement 129" x 82"
* 16 POSITION ATC
* CAT 40
* COOLANT SYSTEM
* MILLTRONICS CENTURION 7 CONTROL
* VOLTAGE BALANCER
* CHIP PAN
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
