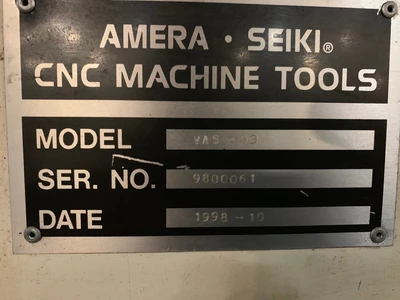

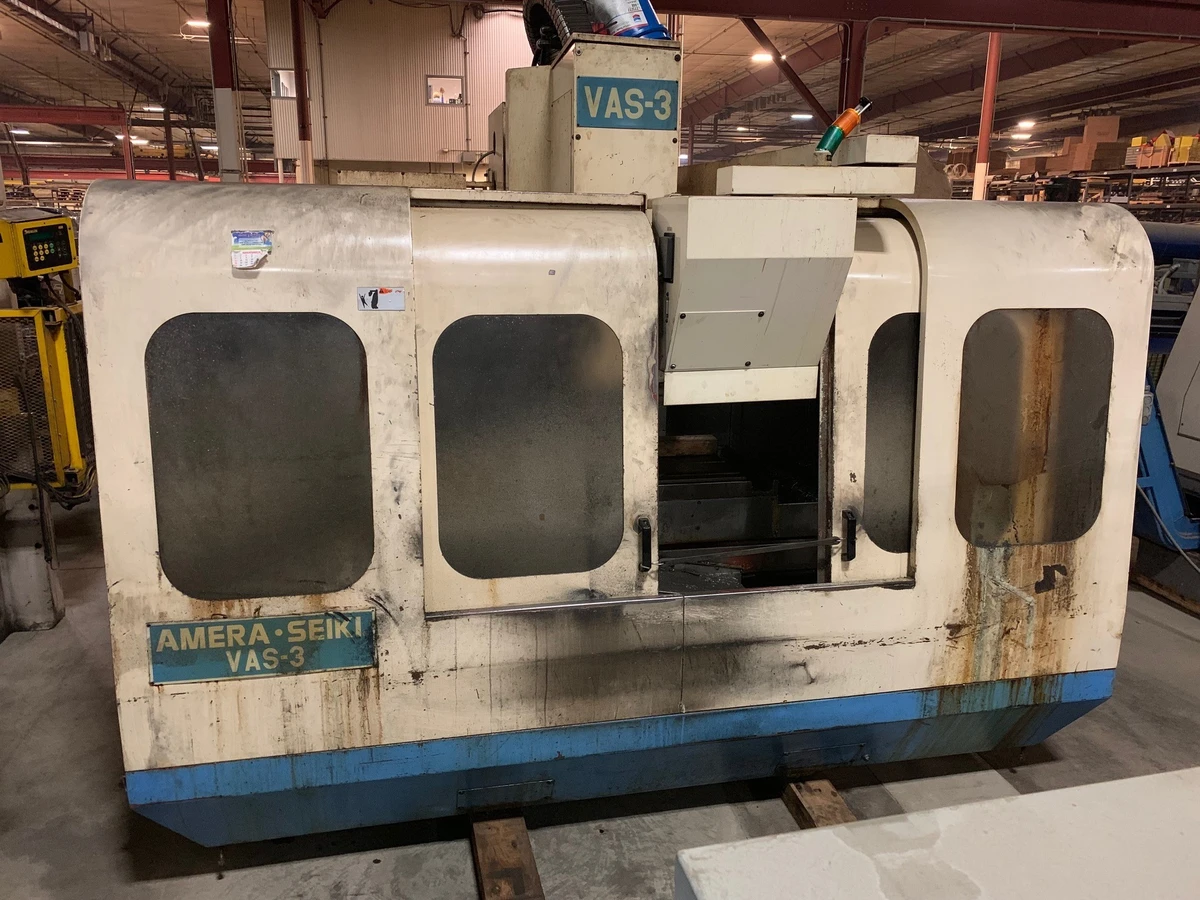

Used 1998 AMERA SEIKI VAS-3 | Vertical Machining Centers

TRAVELS:
X-AXIS TABLE STROKE ------------------------ 40 in
Y-AXIS TABLE STROKE ------------------------ 20 in
Z-AXIS SPINDLE STROKE ---------------------- 25 in
SPINDLE NOSE TO TABLE ---------------------- 4 in TO 29 in

TABLE:
WIDTH -------------------------------------- 20 in
LENGTH ------------------------------------- 48 in
TABLE LOAD CAPACITY ------------------------ 3,700 LBS.
SPINDLE TAPER (STANDARD) ------------------- CT 40
SPINDLE TAPER (OPTIONAL) ------------------- BT 40
SPINDLE SPEED RANGE (STANDARD) ------------- 30 TO 7500 RPM
TRANSMISSION ------------------------------- 2 SPEED GEARED
HEAD
MAX. TORQUE (FT LB @ RPM) ------------------ 275 FT. LB. @
450 RPM
RATIOS (HIGH) ------------------------------ 1:1
(LOW) ------------------------------ 4:1
SPINDLE MOTOR (MAX. RATING) ---------------- 20 H.P. AC
SPINDLE MOTOR TYPE ------------------------- FANUC
BEARINGS ----------------------------------- NSK CLASS 7

SLIDE:
RAPID TRAVERSE RATE (X/Y/Z AXIS) ----------- 944 IPM
MAX. CUTTING FEED RATE (X/Y/Z AXIS) -------- 394 IPM
SLIDEWAY TYPE (X/Y/Z AXIS) ----------------- BOX WAYS
BALL SCREW DIAMETER (X-AXIS) --------------- 1.417 in
(Y-AXIS) --------------- 1.417 in
(Z-AXIS) --------------- 1.417 in
AXIS DRIVE MOTORS (X/Y/Z) ------------------ 3 H.P.
AXIS DRIVE MOTORS MAX. THRUSTING RATING ---- 2,850 LBS.
AXIS DRIVE MOTOR TYPE ---------------------- FANUC

AUTOMATIC TOOL CHANGER (ATC):
NUMBER OF TOOLS ---------------------------- (24)
TOOL CHANGER TYPE -------------------------- CAROUSEL
MAX. TOOL DIAMETER ------------------------- 3.5 in
MAX. TOOL LENGTH --------------------------- 11.8 in
MAX. TOOL WEIGHT --------------------------- 12 LBS.
TOOL CHANGE TIME (TOOL TO TOOL) ------------ 5.9 SECONDS

GENERAL SPECIFICATIONS:
VOLTAGE ------------------------------------ 480 VOLT
PHASE -------------------------------------- 3
AMERAGE ------------------------------------ 60 AMP
AIR PRESSURE REQUIRED ---------------------- 100 PSI
COOLANT CAPACITY --------------------------- 40 GALLONS
COOLANT FLOW RATE -------------------------- 10 GPM
WIDTH -------------------------------------- 118 in
DEPTH -------------------------------------- 110 in
HEIGHT ------------------------------------- 120 in
DOOR OPENING WIDTH ------------------------- 48 in
MACHINE WEIGHT (APPROX.) ------------------- 13,000 LBS.
CURRENTLY WIRED 230V

SPECIFICATIONS SUBJECT TO VERIFICATION

DELIVERY: IMMEDIATE, SUBJECT TO PRIOR SALE
