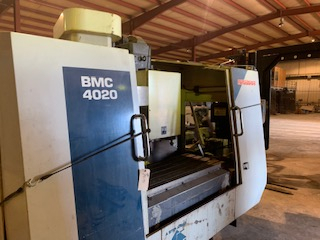

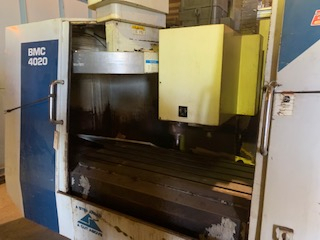

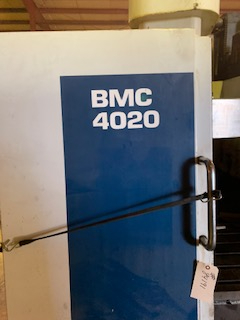

Used HURCO BMC4020 HT/M | Vertical Machining Centers

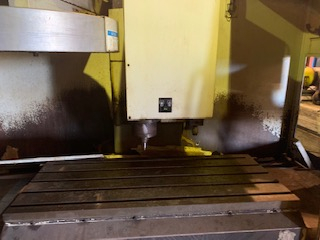

TABLE SIZE--------------------- 48 X 20

TRAVELS :
LONGITUDINAL TRAVEL (X-AXIS)--------- 40 in
CROSS TRAVEL (Y-AXIS)---------------- 20 in
VERTICAL TRAVEL (Z-AXIS)------------- 24 in
TABLE LOAD CAPACITY --------------- 1,500 LBS
MAX. CLEARANCE TABLE TOP TO SPINDLE NOSE ----- 30 in

RAPID TRAVERSE:
X & Y AXES------------------------------ 787 IPM
Z AXIS---------------------------------- 530 IPM
TOOL STORAGE CAPACITY ------------------ 24 ATC
SPINDLE SPEEDS ------------------------- 80 ?? 8000 RPM
SPINDLE TAPER -------------------------- CAT 40
APPROX. MACHINE DIMENSIONS ------------- 136 X 96 X 100H
APPROX. WEIGHT ------------------------- 13,000 LBS
VOLTAGE -------------------------------- 230V 3PHASE
