DAEWOO TT2500SY | CNC Lathes

Have one to sell?
319-450-5772
rojekindustrialrepair@gmail.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC Lathes
Manufacturer:
DAEWOO
Model:
TT2500SY
Stock #:
85788
Status:
For Sale
Serial #:
PT25SY0112

Description

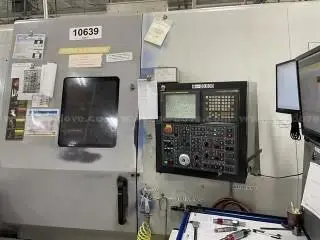

PREOWNED DAEWOO DUAL TURRET LIVE TOOLING MACHINE, MODEL #: TT2500SY, S/N: PT25SY0112

Swing31.5"800.1 mm
Machining Length29"736.6 mm
Chuck Size10"254 mm
Bar Capacity3"76.2 mm
Power30 hp22.4 kW
Max RPM3,500 RPM3,500 RPM
Turning Dia15.3"388.62 mm
Live ToolingYesYes
Sub SpindleYesYes

Recom. Turning diameter 10 inches
Max. Turning Dia. (Upper) 15.4 inches
Max. Turning Dia. (Lower) 11.8 inches
Max. Turning Length 30.7 inches
Bar working diameter 3 inches
Spindle Motor (Int./Cont.) 35/30 HP
Spindle Speed 3,500 RPM
Rotary Tool Spindle Motor (10 min/Cont) 7.5/2 HP
No. of Tool Station 12+12 st
X1/2-axis Rapid Traverse 787 IPM
Z1/2-axis Rapid Traverse 945 IPM
B-axis Rapid Traverse 945 IPM
Y-axis Rapid Traverse 295 IPM
