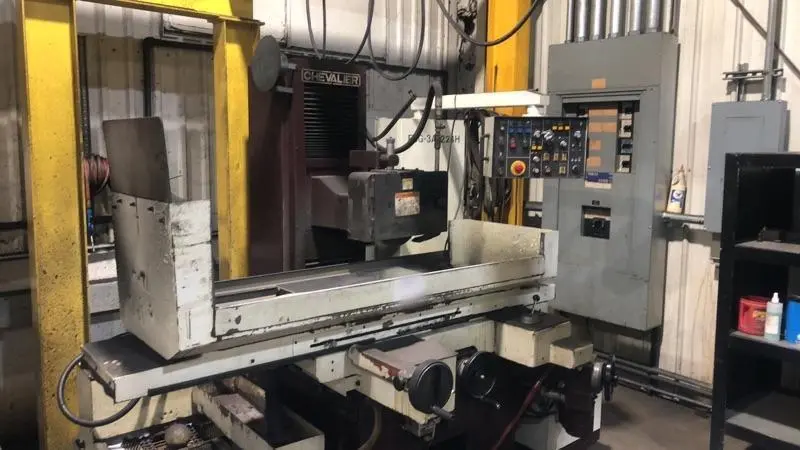

CHEVALIER FSG-1224AD SURFACE GRINDER

TABLE WORKING SURFACE --------------------- 11.75 in x 12.625 in
GRINDING WIDTH CAPACITY, MAX. ------------- 12 in
GRINDING LENGTH CAPACITY, MAX. ------------ 24 in
HEIGHT SPINDLE CENTER TO TABLE, MAX. ------ 24-3/4 in
GRINDING WHEEL DIAMETER, STANDARD --------- 14 in
GRINDING WHEEL WIDTH, STANDARD ------------ 2 in
GRINDING WHEEL HOLE DIAMETER, STANDARD ---- 5 in
LONGITUDINAL TRAVELS:
TABLE LONGITUDINAL TRAVEL, HYDRAULIC ------ 25.625 in
TABLE LONGITUDINAL TRAVEL, MANUAL --------- 27.5 in
TABLE SPEED ------------------------------- 16 - 82 FPM
CROSSFEED TRAVELS:
TABLE CROSS TRAVEL, HYDRAULIC ------------- 13.75 in
TABLE CROSS TRAVEL, MANUAL ---------------- 14.125 in
RAPID TRAVERSE ---------------------------- 12.5 FPM
TABLE CROSS IN-FEEDS ---------------------- .125 - 2 IPR
MICROFEED (PER GRADUATION) ---------------- 0.00005 in
MICROFEED (PER REVOLUTION) ---------------- 0.005 in
WHEELHEAD INFEED:
AUTOMATIC INFEED -------------------------- 0.00005 in -0.003 in
RAPID TRAVERSE ---------------------------- 0 - 20 IPM
GRINDING WHEEL SPINDLE MOTOR -------------- 5 HP
WEIGHT ------------------------------------ 4630 LBS.
VOLTAGE ----------------------------------- 230/460/3/60
