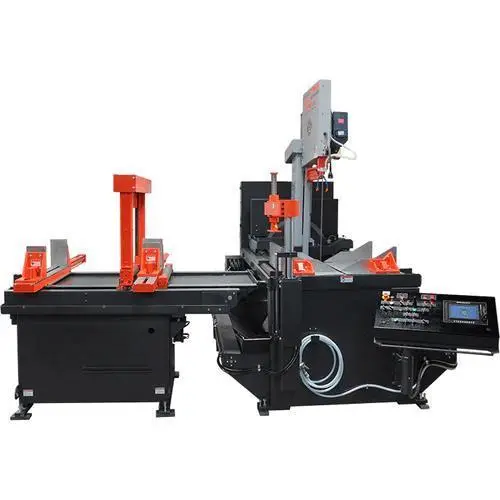

New HEMSAW VT140HA-60-CTS | Saws, Band, Vertical

EQUIPPED WITH:
Spare Parts Kit: A parts kit containing miscellaneous small items such as fittings, fuses, and limit switches is provided for start-up.
Warranty: The seller will repair or replace to the purchaser, upon inspection, any defective part for a period of one (1) year or 2,000 hours, whichever comes first, from the date of shipment.
Note: This machine is manufactured in its entirety in Pryor, Oklahoma, USA. Parts availability is immediate
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATIONS
OPTIONAL FEATURES:
Spray Mist Lubrication: Spray mist lubrication system with a selector switch located on control console to select and to switch back and forth from flood coolant or spray mist lubrication. *Requires Air Supply Price: $1,395.00
0-48” Stroke Servo Twin Ball-Screw Bar-Feed (Multiple Index): Automatic floating (self-adjusting) shuttle vise feed system with rollers prevents binding of “crooked” and distorted material. The table a 0 – 48” feed stroke capability. Material Jogging Feature permits incremental control of the shuttle vise to aid in positioning the material for pre-marked cuts. *Requires Air Supply *Table Lift in Automatic Does Not Work w/ Servo Bar-Feeds Price: Price: $13,895.00
120” Stroke Servo Twin Ball-Screw Bar-Feed (Multiple Index): 0-120” Stroke Servo Twin Ball-Screw Bar-Feed (Multiple Index) with 3rd Holding Vise. *Requires Air Supply *Table Lift in Automatic Does Not Work w/ Servo Bar-Feeds Price: $32,395.00
Bar-Feed Filler Plates For 0-120” Servo Bar Feed: Metal plates that fit between the rollers on the bar-feed to prevent remnant pieces and other material from falling into the base of the bar-feed. Only available for the 0-120” Twin-Screw Servo BarFeed. Available only for the 120” Servo Bar-Feed Price: $295.00
Second Main Vise: Additional powered vise on the discharge side of the blade. This full-stroking vise is used for additional clamping. Price: $4,895.00
3rd Vise on Feed: Works in conjunction with the main holding vise to assist in holding the material while it is being cut and also aids in aligning the material before it goes into the shuttle vise area. It can be disconnected if not needed through a “quick release” valve. Also permits the use of a pusher bar to reduce the remnant end. It reduces the length of the stroke on the bar feed to 0 – 40”. Price: $4,595.00
Swing-Away Top Clamp: For vertical clamping of structural shapes and when entire “mill bundles” are to be cut. Top Clamp swings out of the way to top load or miter. Note: Maximum capacity of the Top Clamp is capacity at 45˚. Price: $7,395.00 – Main Vise
Full Capacity Top Clamp: For vertical clamping of structural shapes and when entire “mill bundles” are to be cut. Clamp may need to be retracted to miter arm. Note: Full capacity is at 45˚. Price: $5,195.00 – Feed Vise
Reduced Capacity Top Clamp: Top Clamp for bundle cutting Price: $3,595.00 – Main Vise (Capacity 18" W x 9" H) Price: $4,895.00 – Feed Vise (Capacity 18" W x 9" H)
Lift-Up Roller: Power Raised Lift-Up Roller can be added on each side of the saw base for ease of material movement. The roller is power raised from the control console, but roller itself is idle. Customer has the option of purchasing one side only or both sides. For one side only, customer must designate which side of base they want the roller installed on. *Cannot Order w/ Servo Bar-Feeds Price: $2,195.00 per side
Laser Light System: A laser light that indicates either above or below where the blade will enter the material for the cut. Price: $1,395.00
Right to Left Feed: Changing the standard left-to-right feed direction to optional rightto-left feed. Price: $2,895.00 Pedestal Control Console: A control console that is mounted on a pedestal with specified length of the umbilical. Price: $2,695.00
Roll-Around Control Console: Roll-Around control console in lieu of the standard swing away console. Standard length of the umbilical is 12’. Price: $4,795.00
Roller Discharge Table: Roller Discharge Table for easy material handling after the cut. The table bolts to the saw, is coolant panned and height adjustable to assure true cuts. Price: 5’ Section - $6,895.00 (Idle) 10’ Section - $9,595.00 (Idle) 10’ Section - $18,495.00 (Clutched Powered)
Stock Table: Free standing, non-powered, idle roller table to be used for long length materials. Tables are non-panned for coolant and have 28” roller centers. Price: 5’ x 29” Section - $4,595.00 (Idle) 10’ x 29” Section - $6,195.00 (Idle) 10’ x 29” Section - $13,795.00 (Clutched Powered)
Hydraulic Tank Heater and/or Cold Weather Package: HE&M Saws are designed to operate efficiently at temperatures above 32ᵒ F (0ᵒ C). If environmental conditions exist below this temperature, we strongly recommend adding a hydraulic tank heater and/or a “cold-weather package” to the saw order. Hydraulic Tank Heater Price: $1,195.00 Cold Weather Package Price: $5,695.00
DELIVERY:
SUBJECT TO STOCK
