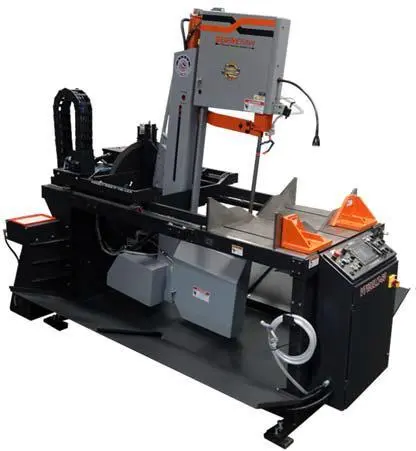

New HEMSAW VT100LM-60 | Saws, Band, Vertical

NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATIONS
OPTIONAL FEATURES:

Spray Mist Lubrication: Spray mist lubrication system with a selector switch located on control console to select and to switch back and forth from flood coolant or spray mist lubrication.: $1,395.00
Second Main Vise: Additional powered vise on the discharge side of the blade. This full-stroking vise is used for additional clamping.: $2,695.00
Swing-Away Top Clamp: For vertical clamping of structural shapes and when entire “mill bundles” are to be cut. Top Clamp swings out of the way to top load or miter. Note: Maximum capacity of the Top Clamp is capacity at 45˚.: $6,695.00 – Main Vise
Cut Watcher® System: A system that monitors the cut for squareness to a pre-set deviation value. The system shuts down the saw when the pre-set value is exceeded. This is a must option for production cutting. (Reduces vertical capacity by 1”) (PATENT: 5,070,751): $3,795.00
Power Programmable Tilt: The required angle can be entered on the console and the saw head will travel to that position and lock in place. The angle readout is on the touch screen.: $7,695.00
Laser Light System: A laser light that indicates either above or below where the blade will enter the material for the cut.: $1,395.00
High Wear Plates: 12” High Wear Plates – Non-Mitered: $595.00 per Vise
Right to Left Material Flow: Changing the standard left-to-right material flow direction to optional right-to-left material flow.: $2,895.00
Pedestal Control Console: A control console that is mounted on a pedestal with specified length of the umbilical.: $2,695.00
Load Table: Idle Roller table for staging material to be cut with the saw. Bolts on to the saw, is coolant panned and height adjustable. The table has 14” roller centers.
5’ x 22” Section - $5,495.00
10’ x 22” Section - $8,595.00
Roller Discharge Table: Idle Roller Discharge Table for easy material handling after the cut. The table bolts to the saw, is coolant panned and height adjustable to assure true cuts. The table has 14” roller centers.
5’ Section - $5,495.00
10’ Section - $8,595.00
Stock Table: Free standing, non-powered, idle roller table to be used for long length materials. Tables are non-panned for coolant and have 28” roller centers.
5’ x 22” Section - $3,495.00
10’ x 22” Section - $5,095.00
DELIVERY:
SUBJECT TO STOCK
