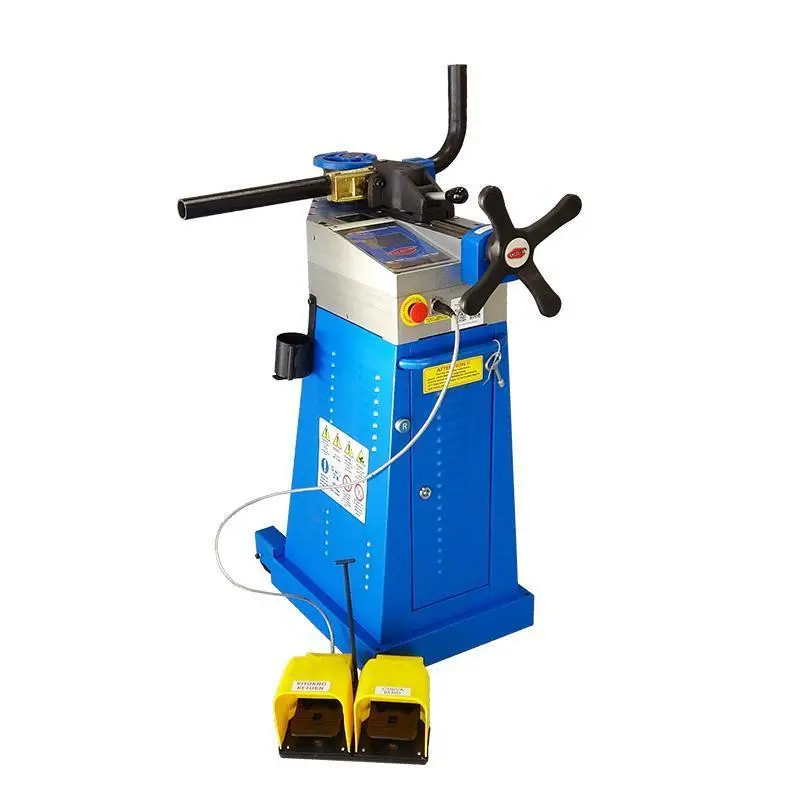

New ERCOLINA SB48 | Benders, Pipe, Tube & Bar

FEATURES:
SB48 Bending Capacities

Material Type  |  Maximum Diameter  | Maximum Wall Thickness
Pipe                 | 1.500 pipe                  | SCH 40
Mild steel tube | 2.000                         | 0.140
Soft brass        | 1.875                          | 0.120
Stainless steel | 1.875                           | 0.065
Hydraulic tube | 2.000                         | 0.120
Hard copper & aluminum - 2.000       | 0.065
Round solids    | 1.250                         | NA
Rectangular solids - 0.312 x 1.875       | NA
Rectangular tube - 0.750 x 1.625         | 0.120
Square tube      | 1.5 x 1.5                    | 0.120
Solid square     | 1.250 x 1.250             | NA
* Mild steel tube capacity 2″
* Pipe capacity 1-1/2″ Sch. 40
* Square tube capacity 1-1/2″ .083 wall
* Maximum CLR 8-7/8″
* Bend to CLR as small as 2D
* Easy-to-read windows-based touchscreen control displays machine position, current status and alarm functions on one screen for greater convenience
* Touch screen indicates bend angle, springback and bend speed for each angle within the program
* Patented swing away counter bend die vise offers easy loading and unloading of work piece, monitored electronically for greater accuracy
* Automatically monitors and adjusts bending speed throughout bend cycle providing maximum torque and protecting machine components
* Quick-change tooling system with multiple radii available
* Right or left hand bending available with vise accessory
* Automatically stops at desired bend angle to end cycle
* Unlimited program storage for quick recall
* Use control panel or foot pedal to initiate bend and return functions
* Counterbending die position monitored electronically for accuracy and repeatability
* Accepts Ercolina’s A40-P two axis positioning table for multiple and sequential bends
* No hydraulic components
* Classic Ercolina Top Bender design reduces floor space requirement and stores easily to save shop floor space
NOTES:
SPECIFICATIONS SUBJECT TO VERFICATION
OPTIONAL FEATURES:
* Center Former 67MM ( 2.6" ) CLR 1" Pipe: $660.00
Center Former 90MM ( 3.5" ) CLR 1-1/2" Tube: $880.00
* Counterbend Die Bronze, 1" Pipe: $310.00
* Center Former 100MM ( 3.9" ) CLR 1-1/2" Pipe: $930.00
* Counterbend Die Bronze, 1-1/2" Pipe: $320.00
* Ercolina Grease - 1 Can: $39.00
DELIVERY:
50% DOWN, PAYMENT IN FULL PRIOR TO SHIPMENT
