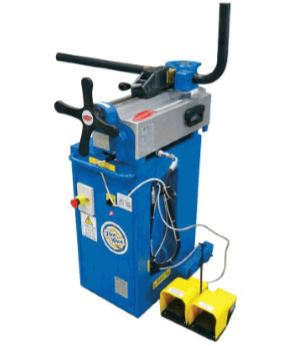

New ERCOLINA HB60 HOT SHOT | Benders, Pipe, Tube & Bar

SPECIFICATIONS:
TUBE:
(MIN.) ------------------ 1/4 in
(MAX.) ------------------ 2 1/2 in
PIPE (MAX.) ------------------ 2 in SCH. 40
CENTERLINE RADIUS:
(MIN.) ------------------ 2 X Ø
(MAX.) ------------------ 10.5 in
DEGREE OF BEND --------------- 0-180°
BENDING SPEED ---------------- 1.5 RPM
VOLTAGE:
HB60-M2 ----------------- 120V, 1PH
HB60-M1 ----------------- 220V, 1PH
HB60-T ------------------ 480V, 3PH
DIMENSIONS ------------------- 27 in X 15 in X 36 in
WEIGHT ----------------------- 290 LBS.
EQUIPPED WITH:
* IDEAL FOR PRODUCING TIGHT RADIUS CONSISTENT QUALITY BENDS IN PIPE, TUBE, SQUARES, SOLIDS AND OTHER PROFILES
* HYBRID HYDRAULIC GEAR DRIVEN ROTARY DRAW BEND ACTION
* QUICKLY BEND TO 180?? IN SECONDS WITH PATENTED ERGONOMIC FUNCTION - NO RATCHETING OR REPOSITIONING
* EASY SET AND VIEW ANGLE DEGREE WHEEL WITH AUTO STOP FOR REPEATABLE BENDS
* DRAWS TUBE FROM ONE DIRECTION FOR EASIER SEQUENTIAL BENDING
* SWING AWAY COUNTER BENDING DIE VISE ALLOWS EASY MATERIAL ON AND OFF MAINTAINING POSITION WITHOUT SECONDARY LOCKING
*PATENTED QUICK CHANGE SYSTEM ACCEPTS ALL ERCOLINA TOOLING
* PRECISION ONE-PIECE CAST STEEL TOOLING AVAILABLE IN MULTIPLE CENTERLINE RADII ACCOMMODATES A VARIETY OF MATERIALS AND WALL THICKNESSES
* ONE PIECE SOLID BRONZE COUNTER BEND DIE FOR LONGER TOOL LIFE AND RIGID SUPPORT THROUGHOUT THE BEND
* MACHINE CASE ENGINEERED FOR STRENGTH WITH HIGH SECTION MODULUS DESIGN
* BEND HEAD SWIVELS TO ACCOMMODATE ANY SIZE SHOP SPACE
* SINGLE OR THREE PHASE ELECTRIC POWER AVAILABLE
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
* Center Former 67MM (2.6") CLR 1" Pipe: $660.00
* Counterbend Die Bronze, 1" Pipe: $310.00
* Center Former 100MM (3.9") CLR 1-1/2" Pipe: $930.00
* Counterbend Die Bronze, 1-1/2" Pipe: $320.00
* Ercolina Grease - 1 Can: $39.00
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
