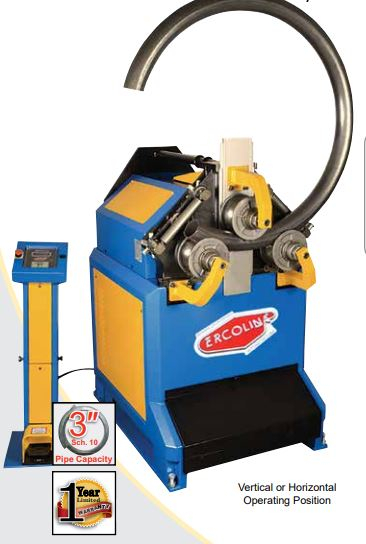

New ERCOLINA CE60H3 | Rolls, Angle Bending

SPECIFICATIONS:

ROLL SHAFT DIAMETER ------------ 50mm
MAXIUM PIPE CAPACITY ----------- 3 in SCH. 10
MAMIUM ANGLE CAPACITY ---------- 2-1/2 in x 2-1/2 in x 3/8 in
SHAFT SPEED -------------------- 9 RPM
UNIVERSAL TOOLING -------------- 7 in O.D.
NUMBER OF PROGRAMS ------------- 8
DISTANCE BETWEEN SHAFTS -------- 15 in
OPERATING VOLTAGE -------------- 220V OR 480V, 3 PH
DIMENSIONS --------------------- 48 in X 29 in X 52 in
SHIPPING WEIGHT ---------------- 1,200 LBS

FEATURES:

Bending speeds 20% faster than competitive machines
Universal tooling set included with each machine ?? 7 in OD
Uses same tooling as CE50
Forged roll shafts precision ground and fitted for maximum
performance and minimal deflection
Heavy duty structure and rigid components for high section
modulus ratings
Reinforced engineered mainframe design proven to outperform
competitive models
Patented by Ercolina simultaneous downfeed and roll
movement to minimize deformation
Touchpad controls with digital center roll positioning
Tie bar supports for each shaft
Hydraulic machine with memory storage has eight (8)
individual programs and unlimited passes
Remote pendent with low voltage controls and foot pedal
switch
Threaded roll shafts with micrometric flange adjustment
helps eliminate spacer usage
In-line direct drive roll shaft system 3-roll driven
Optional Anti-twist correction system for angle iron ??Leg
In inch applications
All capacities based on mild grade materials - heavy wall
and high tensile materials reduce machine capacity.

SPECIFICATIONS SUBJECT TO VERIFICATION

DELIVERY: IMMEDIATE, SUBJECT TO PRIOR SALE
