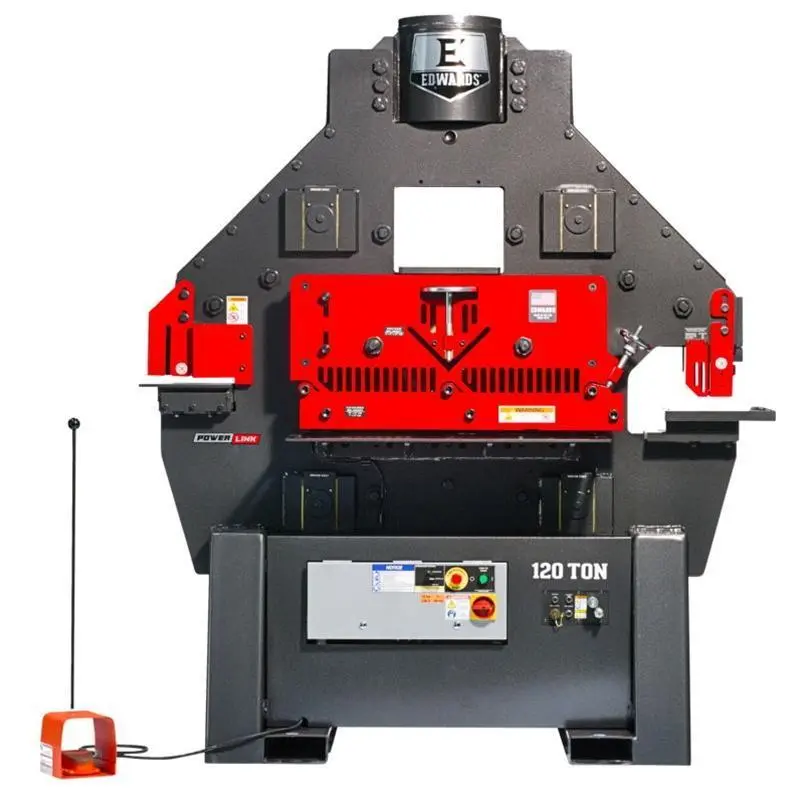

New EDWARDS 120 TON | Ironworkers

SPECIFICATIONS:
PUNCHING:
RATED CAPACITY ------------------ 120 TONS
MAX. CAPACITY ------------------- 1 1/2 in DIA. IN 1 in A36
STROKE -------------------------- 2-1/2 in
THROAT DEPTH -------------------- 11 in
OPEN HEIGHT --------------------- 9-1/8 in
SHUT HEIGHT --------------------- 7 in
WORK HEIGHT --------------------- 36-5/8 in
FLAT BAR SHEAR:
MAX. CAPACITY ------------------- 1/2 in X 24 in
                                                        1 in X 12 in
MAX. ROUND ---------------------- 1-1/4 in
MAX. SQUARE --------------------- 1-1/4 in
WORK HEIGHT --------------------- 33 in
ANGLE SHEAR:
MAX. CAPACITY ------------------- 6 in X 6 in X 1/2 in
WORK HEIGHT --------------------- 52-1/2 in
COPER NOTCHER:
MAX. CAPACITY ------------------- 2-1/2 in X 6 in X 1/2 in
WORK HEIGHT --------------------- 40 in
OPEN CAVITY:
HEIGHT -------------------------- 9 in
WIDTH --------------------------- 11-3/4 in
WORK HEIGHT --------------------- 51-3/4 in
GENERAL SPECIFICATIONS:
STANDARD MOTOR ------------------ 10HP, 3PH, 208V OR 230V, 1,770 RPM, 26 A
OPTIONAL MOTORS------------------ 10HP, 3PH, 460V, 1,770 RPM, 12 A
                                  ------------------ 10HP, 3PH, 575V, 1,770 RPM, 10 A
                                  ------------------ 10HP, 1PH, 208V OR 230V, 1,740 RPM, 40 A
HYDRAULIC PUMP ------------------ 24 GPM
VALVE PRESSURE ------------------ 3,800 PSI
RESERVOIR ----------------------- 17 GALLONS
CYLINDER ------------------------ 2-3/4 in RAM
DIMENSIONS:
HEIGHT -------------------------- 84 in
WIDTH --------------------------- 60 in
DEPTH --------------------------- 60 in
SHIPPING WEIGHT ----------------- 5,500 LBS
FEATURES:
Five Available Workstations
Universal Open Tooling Station
24 in Flat Bar Shear
Dedicated Coper Notcher
Electric Stroke Control
ANSI B11.5-1988R(02) Compliant
ETL/UL Approved Controls

Our most powerful Ironworker, the Edwards 120 Ton JAWS Ironworker offers the most in capacity and versatility. Standard features include a Punch Assembly, 24 in wide Flat Bar Shear, high capacity Angle Shear, Coper Notcher and a universal open tooling station for optional Tooling Accessories allowing you to select the perfect tool for your needs.

The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATIONS
OPTIONAL FEATURES:
12" Press Brake: $2,259.00
18" Press Brake: $2,699.00
24" Press Brake: $3,719.00
32" Press Brake: $4,949.00
36" Press Brake (60 ton or 110 ton only): $5,629.00
40" Press Brake (110 ton press only): $6,189.00
Press Brake Tooling Set - 6 pc PRB06: $789.00
PRB06-1 (60&110T): $789.00
Back Gauge - up to 48": $399.00
Press Brake Back Gauge: $839.00
Stripper Reducing Plate (part # varies by machine): $129.00
Fabricators Protractor: $59.00
Urethane Stripper Assembly: $909.00
Punch & Die Starter Box (8 sets: 3/16" to 1-1/16"): $459.00
Round Punch & Die up to 1-1/16" (Set: one punch, one die): $59.00
Oversized Round Punch & Die up to 1-9/16" (Set: one punch, one die): $129.00
Hex Punch & Die up to 29/32" (Set: one punch, one die): $239.00
Oblong Punch & Die up to 1-1/16" (Set: one punch, one die): $239.00
Square Punch & Die up to 3/4" (Set: one punch, one die): $199.00
Pipe Notching Housing (for 1/2" to 2" dies - below): $559.00
Pipe Notcher Turret Housing: $1,299.00
Pipe Notching Dies - 1/2" (sched 40): $839.00
Pipe Notching Dies - 3/4" (sched 40): $909.00
Pipe Notching Dies - 1" (sched 40): $949.00
Pipe Notching Dies - 1-1/4" (sched 40): $969.00
Pipe Notching Dies - 1-1/2" (sched 40): $1,049.00
Pipe Notching Dies - 2" (sched 40): $1,099.00
Oversize Punch Assembly For 100DX/120T IW: $1,269.00
Round Punch & Die up to 1-9/16" (Set: one punch, one die): $129.00
Pedestal Die Table-Standard to 1-1/16": $629.00
Fence (short) - 2 handles: $79.00
Fence (long) - 2 handles: $89.00
Heavy Duty Gauging Table Kit - 1" x 12" x 16" with 1" x 6" x 10" support plate - includes 1 short & 1 long fence, standard to 1 - 1/16" (100DX/120): $1,349.00
Oversize Heavy Duty Gauging Table Kit - 1" x 12" x 16" with 1" x 6" x 10" support plate - includes 1 short & 1 long fence, oversize to 1-9/16" (100DX/120): $1,349.00
Roller Stand or Material Support: $399.00
DELIVERY:
SUBJECT TO STOCK
