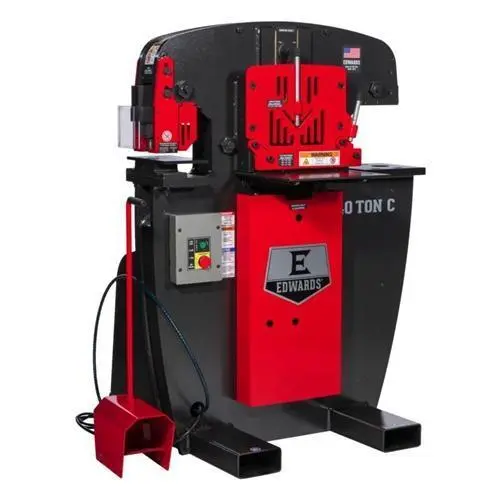

New EDWARDS 40 TON C | Ironworkers

SPECIFICATIONS:

PUNCH
Rating: ------------------- 40 Tons
Max. Capacity:------------- 1 inch Dia. in 1/2 inch A36
Stroke:-------------------- 1-3/8 inch
Throat Depth:-------------- 7 inch
Open Height: -------------- 8 inch
Shut Height: -------------- 6-5/8 inch
Work Height: -------------- 41-1/2 inch

ANGLE SHEAR
Max. Capacity: ------------ 3 inch x 3 inch x 1/4 inch
Work Height: -------------- 52-1/2 inch

FLAT BAR SHEAR
Max. Capacity: ------------ 3/8 inch x 10 inch
------------ 1/2 inch x 6 inch
Work Height: -------------- 33-1/2 inch

OPEN STATION
Stroke: ------------------- 1-3/8 inch
Throat Depth: ------------- 7-3/4 inch
Open Height: -------------- 8 inch
Shut Height: -------------- 6-5/8 inch
Work Height: -------------- 35-3/4 inch

GENERAL SPECIFICATIONS
Standard Motor: 5 HP 3 Phase 208/240v or 230v
1725 RPM 14 AMP
Optional Motors:

Hydraulic Pump: ----------- 3-1/2 GPM - 1 Stage
Valve Pressure: ----------- 2750 PSI
Reservoir: ---------------- 7 Gallons
Cylinder: ----------------- 8-1/2 inch - 2-1/2 inch Ram

DIMENSIONS
Height: ------------------- 60-1/2 inch
Width: -------------------- 32 inch
Depth: -------------------- 23 inch
Shipping Weight: ---------- 1900 lb

FEATURES:

Standard features include a Punch Assembly with Pedestal
Die Table, 10 inch wide Flat Bar Shear, Angle Shear, and a
universal open tooling station to accept optional Tooling
Accessories.

SPECIFICATIONS SUBJECT TO VERIFICATION OPTIONAL FEATURES:

Hydraulic Accessory pack
Avail. on new machines only ------------$ 800.00
Accessory Light ------------------------$ 85.60
AUTO CUT -------------------------------$ 802.50
ANGLE NOTCHER 3 in X 3 in X 1/4 in -----------$ 1,162.02
8 in BRAKE W/4-WAY DIE -------------------$ 918.06
COPER NOTCHER ASSEMBLY -----------------$ 1,086.05
MULTI SHEAR (ANGLE, BAR, ROD SHEAR) ----$ 979.05
PIPE NOTCHER HOUSING:
(SCHEDULE 40 - 1/2 in - 2 in ) --------------$ 371.29
QUICK CHANGE PUNCH COUPLING ------------$ 665.54
ROD SHEAR & HOUSING:
(1/4 in , 3/8 in , 1/2 in , 5/8 in , 3/4 in , 1 in ) -----$ 1,358.90
PUNCH & DIE STARTER KIT-----------------$ 331.70

DELIVERY: SUBJECT TO STOCK
