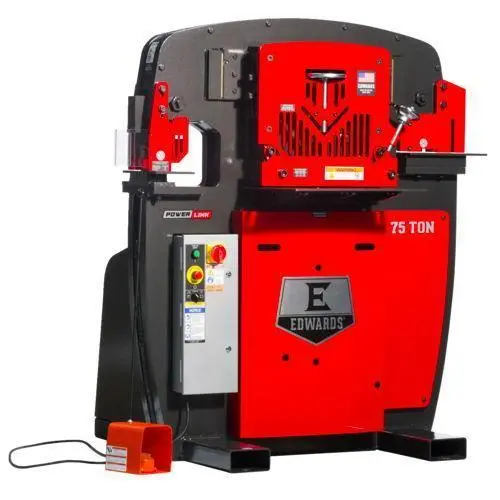

New EDWARDS 75 TON | Ironworkers

SPECIFICATIONS: PUNCH
Rating ----------------- 75 Tons
Max. Capacity ---------- 1-1/16 in Dia. in 7/8 in A36
(65,000 PSI Tensile)
Stroke ----------------- 1-13/16 in
Throat Depth ----------- 10 in
Open Height ------------ 8-3/4 in
Shut Height ------------ 6-15/16 in
Work Height ------------ 39-1/16 in

FLAT BAR SHEAR
Max. Capacity ---------- 1/2 in x 14 in
3/4 in x 10 in
Max. Round ------------- 1 in
Max. Square ------------ 1 in
Work Height ------------ 37 in

ANGLE SHEAR
Max. Capacity ---------- 5 in x 5 in x 1/2 in
Work Height ------------ 43-15/16 in

COPER NOTCHER
Max. Capacity ---------- 2-1/2 in x 5 in x 1/2 in
Work Height ------------ 42 in

GENERAL SPECIFICATIONS
Standard Motor --------- 7.5 HP 3~ 208 V or 230 V
1765 RPM 22 A
Optional Motors -------- 7.5 HP 3~ 460 V
1765 RPM 11 A

7.5 HP 3~ 575 V
1770 RPM 8 A

5 HP 1~ 230 V
1725 RPM 23 A

*7.5 HP 1~ 230 V
1765 RPM 36 A
*Required for 1~
Hydraulic Accessory Pack
Hydraulic Pump --------- 10-1/2 GPM - 2 Stage
Valve Pressure --------- 3500 PSI
Reservoir -------------- 17 Gallons
Cylinder --------------- 3-1/2 in Ram

DIMENSIONS
Height ----------------- 60-1/4 in
Width ------------------ 50 in
Depth ------------------ 45 in
Shipping Weight -------- 4100 lb FEATURES: Four Available Workstations
Punch Assembly Designed for Optional Tooling
Dedicated Coper Notcher Station
Electric Stroke Control
ANSI B11.5-1988R(02) Compliant
ETL/UL Approved Controls

The Edwards 75 Ton JAWS Ironworker offers you greater
capacity to accomplish larger tasks. Its standard features
include a Punch Assembly with Pedestal Die Table, a 14 in wide
Flat Bar Shear, Angle Shear and Coper Notcher. The Punch
Assembly is easily converted to an open station designed to
accept optional Tooling Accessories, allowing flexibility to
customize your Ironworker according to your needs.

The optional Hydraulic Accessory Pack allows your Ironworker
to act as a power source to our expanding line of innovative
Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe
Bender, 20 Ton Shop Press and 40 Ton Shop Press. SPECIFICATIONS AND PRICING SUBJECT TO VERIFICATION OPTIONAL FEATURES: 1 PHASE, 230V --------------------------$
3 PHASE, 460V --------------------------$
3 PHASE, 575V --------------------------$
HYDRAULIC ACCESSOR PACK NEW MACH. ONLY -$
ACCESSORY LIGHT ------------------------$
AUTO CUT -------------------------------$
ANGLE NOTCHER 3 in X 3 in X 1/4 in -----------$
8 in BRAKE W/4-WAY DIE 12 in ----------------$
COPER NOTCHER ASSEMBLY -----------------$ standard
MULTI SHEAR (ANGLE, BAR, ROD SHEAR) ----$
PIPE NOTCHER HOUSING:
(SCHEDULE 40 - 1/2 in - 2 in ) --------------$
QUICK CHANGE PUNCH COUPLING ------------$
ROD SHEAR & HOUSING:
(1/4 in , 3/8 in , 1/2 in , 5/8 in , 3/4 in , 1 in ) ----
PUNCH & DIE STARTER SET-----------------$  DELIVERY: SUBJECT TO STOCK
