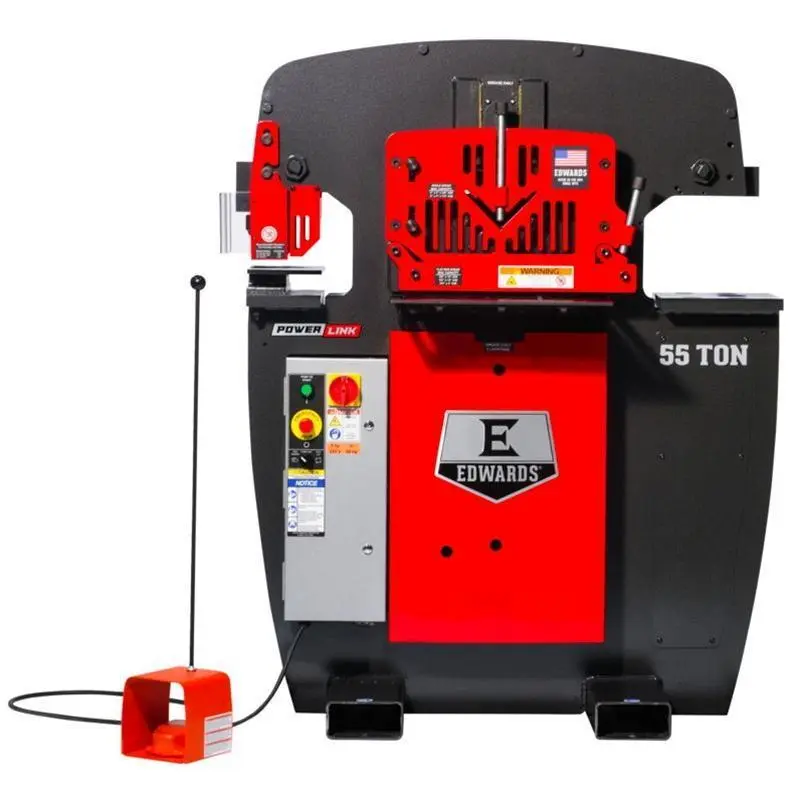

New EDWARDS 55 TON | Ironworkers

SPECIFICATIONS:
PUNCH:
RATING -------------------- 55 TONS
MAX. CAPACITY ------------- 1 1/16 in DIA. IN 5/8 in A36 (65,000 PSI TENSILE)
STROKE -------------------- 1 1/4 in
THROAT DEPTH -------------- 7 1/2 in
OPEN HEIGHT --------------- 8 1/8 in
SHUT HEIGHT --------------- 6 7/8 in
WORK HEIGHT --------------- 36 9/16 in
FLAT BAR SHEAR:
MAX. CAPACITY ------------- 3/8 in X 14 in
                                              1/2 in X 12 in
                                              3/4 in X 4 in
MAX. ROUND ---------------- 7/8 in
MAX. SQUARE --------------- 7/8 in
WORK HEIGHT --------------- 34 1/2 in
ANGLE SHEAR:
MAX. CAPACITY ------------- 3 in X 3 in X 3/8 in
                                              4 in X 4 in X 1/4 in
WORK HEIGHT --------------- 39 7/8 in
OPTIONAL COPER NOTCHER:
MAX. CAPACITY ------------- 2 1/2 in X 4 in X 5/16 in
WORK HEIGHT --------------- 39 1/2 in
OPEN STATION:
THROAT DEPTH -------------- 11 3/16 in
OPEN HEIGHT --------------- 8 1/8 in
SHUT HEIGHT --------------- 6 7/8 in
STROKE -------------------- 1 1/4 in
WORK HEIGHT --------------- 34 1/2 in
GENERAL SPECIFICATIONS:
STANDARD MOTOR ------------ 5 HP 3~ 208 V OR 230 V 1,725 RPM 14 A
OPTIONAL MOTORS ----------- 5 HP 3~ 460 V, 1,725 RPM 7 A
                                                  5 HP 3~ 575 V, 1,725 RPM 6 A
                                                  5 HP 1~ 230 V, 1,725 RPM 23 A
HYDRAULIC PUMP ------------ 3-1/2 GPM - 1 STAGE
VALVE PRESSURE ------------ 2,500 PSI
RESERVOIR ----------------- 7 GALLONS
CYLINDER ------------------ 2 1/2 in RAM
DIMENSIONS:
HEIGHT -------------------- 55 1/4 in
WIDTH --------------------- 44 3/8 in
DEPTH --------------------- 36 1/8 in
SHIPPING WEIGHT ----------- 2,480 LB
FEATURES:
- FOUR AVAILABLE WORKSTATIONS
- UNIVERSAL OPEN TOOLING STATION
- ELECTRIC STROKE CONTROL
- ANSI B11.5-1988R(02) COMPLIANT
- ETL/UL APPROVED CONTROLS
THE EDWARDS 55 TON JAWS IRONWORKER IS WELL SUITED TO FIT THE NEEDS OF ANY FAB SHOP
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
1 PHASE, 208V ----------------------------------- $ 365.00
1 PHASE, 230V ----------------------------------- $ 365.00
3 PHASE, 460V ----------------------------------- $ 365.00
3 PHASE, 575V ----------------------------------- $ 850.00
1 PH, 230 V W/ POWER LINK SYSTEM ---------------- $1,700.00
3 PH, 208/230 V W/ POWER LINK SYSTEM ------------ $1,336.00
3 PH, 460 V W/ POWER LINK SYSTEM ---------------- $1,700.00
3 PH, 575 V W/ POWER LINK SYSTEM ---------------- $2,186.00
1 PHASE, 230V COPER NOTCHER --------------------- $1,883.00
1 PHASE, 230V, POWERLINK, COPER NOTCHER --------- $3,220.00
3 PHASE, 230V COPER NOTCHER --------------------- $1,520.00
3 PHASE, 230V, POWERLINK, COPER NOTCHER --------- $2,855.00
3 PHASE, 208V COPER NOTCHER --------------------- $1,520.00
3 PHASE, 208V, POWERLINK, COPER NOTCHER --------- $2,855.00
1 PHASE, 230V, 10 in BRAKE ------------------------ $1,943.00
1 PHASE, 230V, POWERLINK, 10 in BRAKE ------------- $3,280.00
3 PHASE, 208V, 10 in BRAKE ------------------------ $1,580.00
3 PHASE, 208V, POWERLINK, 10 in BRAKE ------------- $2,916.00
3 PHASE, 230V, 10 in BRAKE ------------------------ $1,580.00
3 PHASE, 230V, POWERLINK, 10 in BRAKE ------------- $2,916.00
ACCESSORY LIGHT --------------------------------- $ 99.00
AUTO CUT ---------------------------------------- $ 909.00
ANGLE NOTCHER 3 in X 3 in X 1/4 in -------------------- $1,339.00
7 in BRAKE W/ 4-WAY DIE ---------------------------$ 919.00
8 in BRAKE W/ 4-WAY DIE --------------------------- $1,039.00
MULTI SHEAR (ANGLE, BAR, ROD SHEAR) ------------- $1,399.00
PIPE NOTCHER HOUSING (SCHEDULE 40 - 1/2 in - 2 in ) -- $ 429.00
QUICK CHANGE PUNCH ASSEMBLY --------------------- $ 799.00
ROD SHEAR HOUSING:(1/4 in ,3/8 in ,1/2 in ,5/8 in ,3/4 in ,1 in ) - $1,549.00
PUNCH & DIE STARTER KIT ------------------------- $ 379.00
DELIVERY:
SUBJECT TO STOCK
