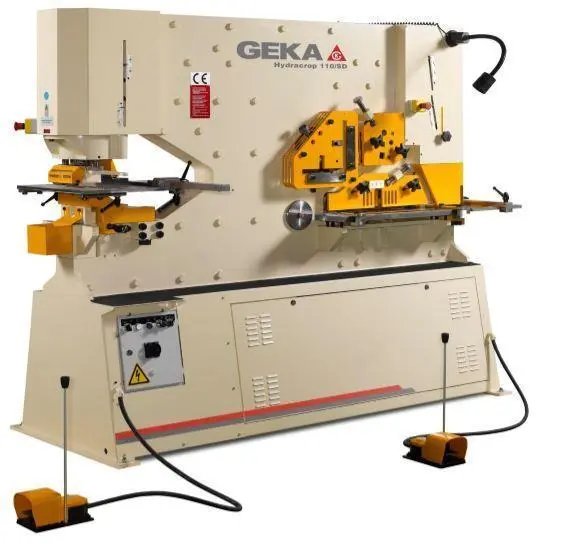

New GEKA HYDRACROP 110SD | Ironworkers

SPECIFICATIONS:

ANGLE SHEAR:
- in NON-DEFORM CUT in WITH NO MATERIALS LOSS
-ANGELS SQUARE - 6 in x 6 in x 1/2 in
-ANGELS ON 45 DEGREE MITRE (LEG IN) - 3 in x 3 in x 5/16 in

BAR SHEAR:
-ROUND BARS-2 in
-SQUARE BARS-2 in

PLATE SHEAR:
- in NON-DEFORM CUT in WITH NO MATERIAL LOSS
-FLAT BAR - 24 in x 5/8 in OR 16 in x 3/4 in OR 12 in x 1 in
-BLADE LENGTH - 24 in

PUNCH:
-CAPACITY - 120 TONS
-PUNCHUNG CAPACITY - 1 1/4 in THRU 1 in OR THRU 1 1/2 in THRU
3/4 in
-THROAT DEPTH - 24 in
-QUICK CHANGE PUNCH HOLDER
-FULL STROKE OR JOG MODE
-UP TO 4 in ROUND HOLE OR ANY SHAPE THAT WILL FIT INTA A 4 in
ROUND WITHIN TONNAGE CAPACITY OF MACHINE OFFERED AS
OPTINAL ACCESSORY

NOTCHER:
-THICKNESS - 1/2 in
-DEPTH - 3 1/2 in
-WIDTH - 2 in

EQUIPPED WITH:

STANDARD EQUIPMENT:

- SECTION SHEAR BLADES FOR ANGLES WITH PATENTED NON-DEFORM
CUTTING ACTION WITH CAPABILITY OF CUTTING EQUAL AND
UNEQUAL
LEG ANGLES AT BOTH 90 DEGREES AND 45 DEGREES (LEG IN
ONLY)
-DEEP THROAT STRUCTURAL PUNCHING JAW
- BAR SHEAR BLADES FOR 3 in 4.1 POUND AND 4 in 5.4 POUND
CHANNEL
AND BLADES FOR ROUND AND SQUARE BAR WITH OPENINGS FOR
1-3/16 in , 1 in , 3/4 in , AND 9/16 in ROUND BAR AND 1-3/16 in , 1 in ,
AND
9/16 in SQUARE BAR
- FLAT BAR BLADES (NON-DEFORM)
- RECTANGULAR COPER (TRIANGULAR NOTCHER OPTIONAL)
- TWO-CYLINDER OPERATION WITH TWO REMOTE FOOT PEDALS AND
WITH
HYDRAULICS WHICH ALLOW in SIMULTANEOUS OPERATION in
(INDEPENDENTLY CONTROLLED) OF PUNCH AND SHEARING STATIONS
(BOTH CYLINDERS) TO THE TOTAL OPERATING TONNAGE OF
MACHINE.
- QUICK-CHANGE PUNCH HOLDER, KEYED FOR SHAPED TOOLING
- OPERATORS CHOICE OF TWO SPEEDS FOR PUNCH STATION WITH
FOOT
PEDAL CONTROL
- STARTER SET OF PUNCHES AND DIES - ROUND PUNCHES: 5/16 in ,
7/16 in ,
9/16 in , 5/8 in , 11/16 in , 3/4 in , 13/16 in , 7/8 in , 15/16 in , 1-1/16 in ,
EACH DIE IS 1/32 in LARGER THAN THE PUNCH.
- SUPPORT AND MITRE TABLE FOR PLATE SHEAR.
- 3/60/220/440 MOTOR AND CONTROLS. LOW VOLTAGE AT THE
CONTROLS.

A STRUCTURAL DIE HOLDER IS PROVIDED TO ALLOW THE PUNCHING
OF
THE FLANGES IN CHANNELS AND I-BEAMS.

PLEASE NOTE: WHEN USING THE MACHINE WITH STANDARD
EQUIPMENT,
THE FOLLOWING SECTIONS CAN BE SHEARED WITHOUT
TOOLING CHANGE.
- ANGLES TO MAXIMUM CAPACITY
- ROUNDS AND SQUARES TO MAXIMUM CAPACITY
- FLAT BAR TO MAXIMUM CAPACITY
- NOTCHING TO MAXIMUM CAPACITY

ALSO NOTE: WHEN PUNCHING WITH QUICK-CHANGE PUNCH HOLDER,
ONLY
THE PUNCHES AND DIES NEED TO BE CHANGED FOR
STANDARD
PUNCHING OPERATIONS. THERE IS NO NEED TO REMOVE
THE
COUPLING NUT.

FOR SHAPED TOOLING, THE PUNCH HOLDER IS KEYED
AND
THE DIE HOLDER IS SET UP WITH A LOCKING BOLT SO
THAT THE PROPERLY KEYED TOOLING CAN BE PROPERLY
ALIGNED IN THE MACHINE.

SPECIFICATIONS SUBJECT TO VERIFICATION

OPTIONAL FEATURES:

1 EACH: PRODUCTIVITY PACKAGE TO INCLUDE A MACHINED
PUNCH GAUGING TABLE WITH X-Y SCALES AND
BACK STOP, A MACHINED NOTCHER GAUGING TABLE
WITH X-Y SCALES AND BACK STOP, A WORK LIGHT,
AND A 40 in CALIBRATED ELECTRIC LENGTH GAUGE
TO ALLOW OPERATOR TO SET STOP AND FEED
MATERIAL TO STOP AND HAVE MACHINE CYCLE
AUTOMATICALLY. ---------------------------
$1,750.00

PLATE SHEAR:
- HYDRAULIC HOLDDOWNS FOR PLATE ------------------
$5,250.00
- HYDRAULIC HOLDDOWNS FOR ANGLES AND PLATE -------
$7,250.00

COPER-NOTCHER:
- TRIANGULAR SHAPE (COMPLETE) --------------------
$1,575.00
- GAUGING TABLE ----------------------------------
$1,150.00
- TRIANGULAR SHAPE NOTCHER IN PLACE OF STANDARD RECTANGULAR
NOTCHER ------------------------------------------ $
275.00
- TUBE NOTCHER (COMPLETE FOR ONE SIZE)UP TO 2 in ---
$1,450.00
- REPLACEMENT PUNCH (EACH ADDITIONAL SIZE) ------- $
275.00
- REPLACEMENT DIE (EACH ADDITIONAL SIZE) --------- $
255.00
- PRESS BRAKE ATTACHMENT -------------------------
$1,750.00
- NOTCHER FOR CHANNEL ----------------------------
$1,335.00
- PUNCH UNIT COMPLETE ----------------------------
$1,020.00

SECTION SHEAR:
- HYDRAULIC HOLDDOWN FOR ANGLES ------------------
$5,250.00
- HYDRAULIC HOLDDOWNS FOR ANGLES AND PLATE -------
$7,250.00

BAR SHEAR:
- SPECIAL ROUND/SQUARE BAR OPENINGS ON REQUEST ---
$1,575.00
- BLADES FOR CHANNEL, I-BEAM OR OTHER SPECIAL SECTION,
ONE OPENING --------------------------------------
$1,300.00

PUNCH:
- OVERSIZE PUNCHING ATTACHMENT, (COMPLETE) FOR UP TO 4 in
ROUND
HOLES OR SHAPES THAT WILL FIT WITHIN A 4 in ROUND, LESS
PUNCHES AND DIES ---------------------------------
$2,375.00
- GAUGING TABLE ----------------------------------
$1,240.00
- GAUGING TABLE FOR DEEP THROAT (SD MODELS) ------
$1,500.00
- OVERSIZE PUNCHING ATTACHMENT (COMPLETE) FOR UP TO 6 in
ROUND
HOLES OR SHAPES THAT WILL FIT WITHIN A 6 in ROUND, LESS
PUNCHES AND DIES ---------------------------------
$4,800.00
- SMALL CHANNEL AND BEAM SADDLE (DIE HOLDER) FOR
1-5/8 in TO 3-1/8 in ---------------------------------
$2,150.00
- DOUBLE OR TRIPLE PUNCH, FIXED CENTER DISTANCES -
$3,824.00
- FLAT BAR RADIUSING AND SEPARATING ATTACHMENT ---
$2,982.00
- MULTI-STOP GAUGING TABLE (39 in W X 25 in D) ---------
$5,500.00
- PRESS BRAKE ATTACHMENT INDEXED LEFT TO RIGHT ---
$2,165.00
- PRESS BRAKE ATTACHMENT INDEXED FRONT TO BACK ---
$2,800.00
- LOUVRE PUNCH SET (UP TO 1-1/2 in X 4 in ) -----------
$2,100.00
- REPLACEMENT PUNCH ------------------------------ $
465.00
- REPLACEMENT DIE -------------------------------- $
465.00
- HYDRAULIC PUNCH STRIPPER -----------------------
$3,805.00
- URETHANE STRIPPER ------------------------------ $
925.00

SPECIAL EQUIPMENT:
- ADDITIONAL 39 in OF GAUGE ------------------------ $
290.00

DELIVERY: SUBJECT TO STOCK
