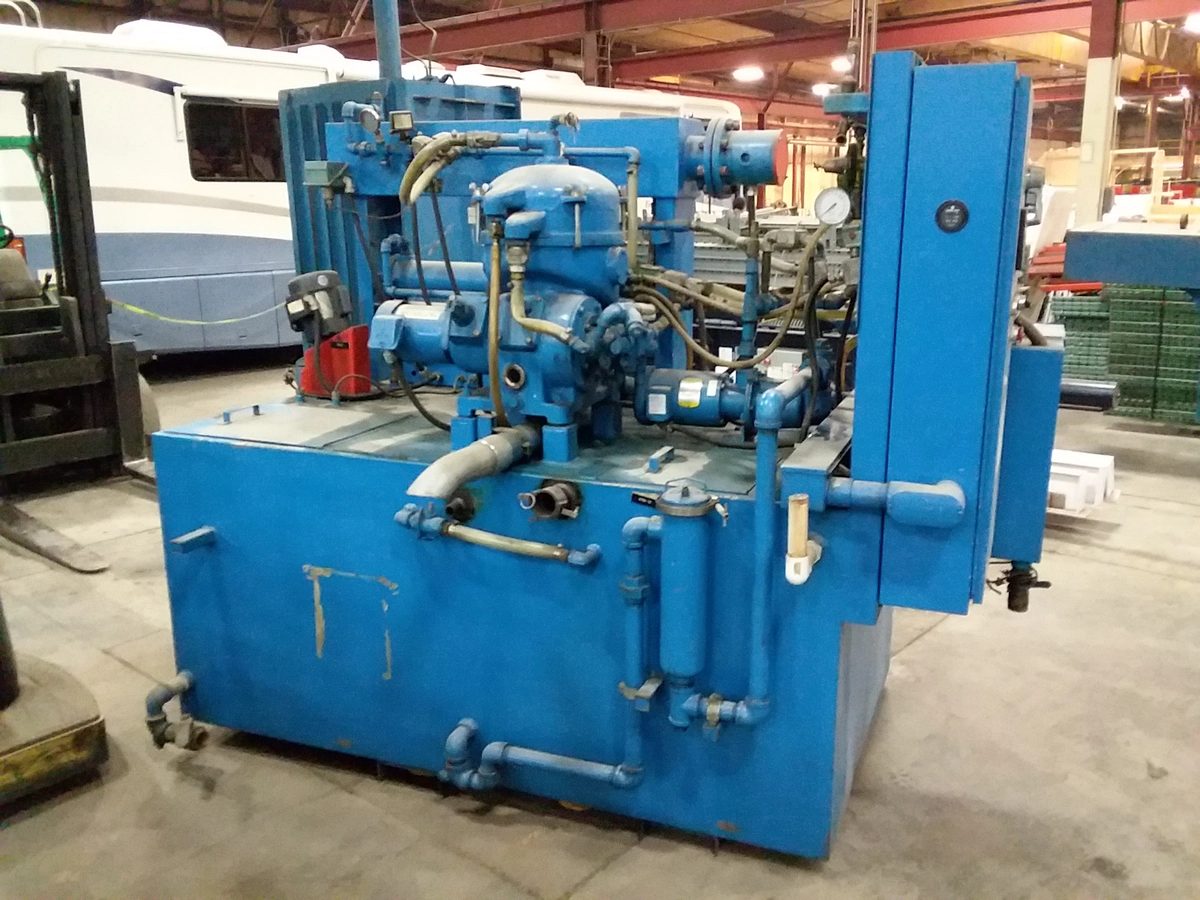

Used 1998 SANBORN TECHNOLOGIES PATRIOT I 250/250 | Coolant Systems (High Pressure)

SPECIFICATIONS:

MAX FLOW RATE ---------------------- 2 GALLONS PER MINUTE
CAPACITY --------------------------- 250 GALLON
ELECTRICS -------------------------- 480V, 3PH
DIMENSIONS ------------------------- 9 ft X 5 ft X 8 ft TALL
WEIGHT ----------------------------- 2,500 LBS

FEATURES:

CENTRIFUGE - MITSUBISHI HIGH-SPEED, DISC-TYPE CENTRIFUGE,
WITH SEPARATION FORCES AT 9000 X GRAVITY AND 2 GPM CAPACITY,
DESIGNED, FOR COOLANT SERVICE, AND AUTOMATIC SOLIDS
EJECTION, TEFC MOTOR AND STARTER

STRAINER - BASKET TYPE, FOR EASE OF CLEANING, TO REMOVE
COARSE SOLIDS

FEED PUMP - POSITIVE DISPLACEMENT, CHOSEN FOR ITS WEAR
CHARACTERISTICS WITH DIRTY COOLANTS
SWARF TANK - TWO COMPARTMENT STEEL TANKS FOR COLLECTION
OF HYDROCYCLONE AND BOWL DISCHARGE SWARF.

EQUIPPED WITH:

DUMP VALVE FOR DISCHARGE TO A SUITABLE CONTAINER

NO-FLOW SWITCH - FOR FEED PUMP PROTECTION. PROTECTS FEED
PUMP
FROM RUNNING DRY. AUTOMATIC SHUT DOWN OF SYSTEM WHEN
DIRTY
TANK EMPTIES

THERMAL BIO-CONTROL (HEATER) - LOW WATT DENSITY HEATER IN
STEEL WELDED HOUSING WITH DRAIN

ECONOMIZER (HEAT EXCHANGER) PREHEATS DIRTY COOLANT AND
AFTER-
COOLS CLEAN COOLANT, REDUCING ENERGY CONSUMPTION

AUTOMATIC FEED VALVE - ELECTRICALLY CONTROLLED,
PNEUMATICALLY
ACTUATED, FITTED WITH TEFLON SEATS TO STOP FEED TO THE
SYSTEM

NO FLOW SWITCH - FOR PASTEURIZER PROTECTION

TANKS (DIRTY/CLEAN) -500 GALLON TOTAL CAPACITY FOR THE
250/250 SYSTEM OR 1000 GALLON CAPACITY FOR THE 500/500
SYSTEM, FULLY ENCLOSED WELDED STEEL CONSTRUCTION WITH
HINGED LID, SLOPED BOTTOM, AND INTEGRAL DRAIN. HYDRAULIC AGITATION
SUPPLIED IN BOTH RESERVOIRS

CENTRIFUGE BOWL FLUSH SYSTEM - FOR AUTOMATIC SOLIDS
DISCHARGE DURING OPERATION, INCLUDES PLUMBING, SOLENOIDS, WATER
FILTER AND REGULATORS

PROGRAMMABLE CONTROLLER AND INDICATING PANEL - NEMA 12
ENCLOSURE DESIGNED FOR 460 VAC, 3 PH, 60 HZ. THE CONTROL
CIRCUIT IS 115 VAC AND IS DESIGNED FOR UNATTENDED OPERATION EQUIPPED WITH: ALLEN BRADLEY DTAM MICRO CONTROL
START/STOP BUTTONS
MSC FILTRATION PSK FLUID PUMP (MODEL PKR-P-25)
HEAT EXCHANGER (MODEL B-1004-A4-F)
SELFJECTOR (MODEL SJ-700)

SPECIFICATIONS SUBJECT TO VERICIATION

DELIVERY: IMMEDIATE, SUBJECT TO PRIOR SALE

CONDITION: EXCELLENT
