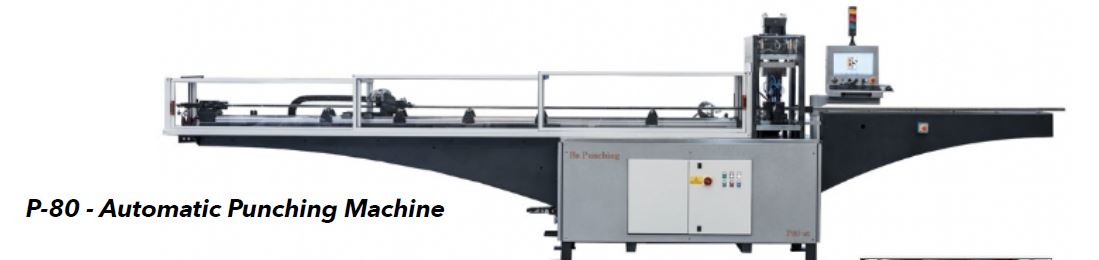

New BSB SYSTEMS P80-2T | Punches, Turret

SPECIFICATIONS:

PUNCHING PRESSURE ----------------- 12.5 TONS
PUNCH STROKE LENGTH --------------- 3.24 in
FEED SYSTEMS LENGTH --------------- 118 in
FEED SYSTEM SPEED ----------------- UP TO 90 ft/MIN
FEED SYSTEM ACCURACY -------------- 4 0.00016 in OVER 118 in
MAX TUB LENGTH -------------------- 120 in
MAX TUBE CROSS SECTION ------------ 3 in X 3 in
PNEUMATIC REQUIREMENT ------------- 80-90 PSI
DISPLAY --------------------------- 12 in COLOR TOUCH SCREEN
VOLTAGE --------------------------- 240V/3PH/60HZ OR
460V/3PH/60HZ
MOTOR ----------------------------- 12HP

EQUIPPED WITH:

INTERNAL DIES ARE EXPANDABLE WITH HYDRAULIC CYLINDERS
TOOL LUBRICATION IS AUTOMATIC
BRUSHLESS AC SERVO.- SIEMENS MOTOR

SPECIFICATIONS SUBJECT TO VERIFICATION

OPTIONAL FEATURES:

MOLD FOR TUBE WITH 1.25 in X 1.25 in -------------- $9,950.00
INITIAL TOOL SET. INCLUDES PUNCH, DIE, SPACERS,
MANDREL. -------------------------------------- $1,950.00

DELIVERY: IMMEDIATE, SUBJECT TO PRIOR SALE
