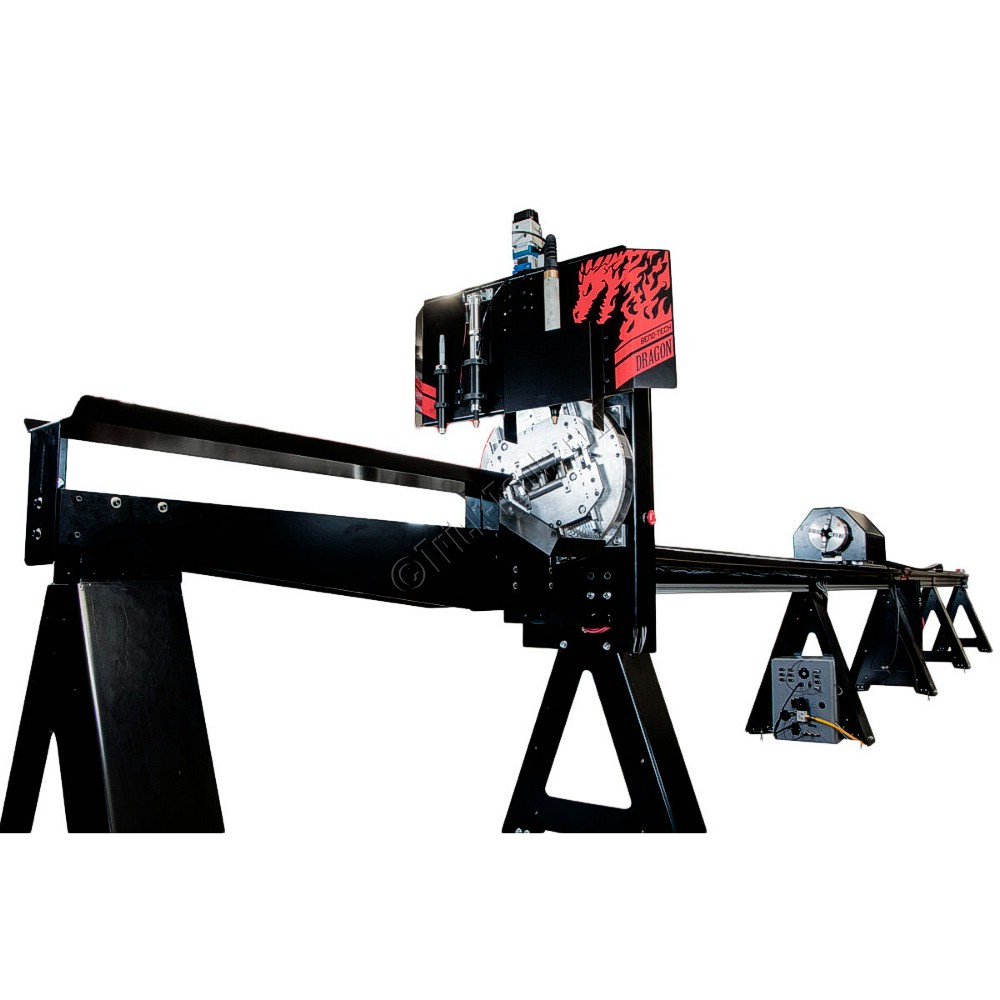

New BEND-TECH DRAGON A400 | Plasma Cutters

EQUIPPED WITH:
LOADING COMPONENTS:
1) MATERIAL CAN BE LOADED FROM EITHER SIDE, FRONT, BACK, OR TOP.
2) THE FRONT GATE HAS TWO SELF-CENTERING VICE-LIKE ROLLER JAWS THAT HOLD THEIR POSITION AND ARE ADJUSTED BY TURNING A HEX KEY WRENCH.
3) THE CHUCK HAS FOUR SELF-CENTERING JAWS TO HOLD ROUND, SQUARE, AND RECTANGLE PROFILE TUBING.
4) THE FULLY AUTOMATIC CNC CENTER SUPPORT CAN HELP HOLD MATERIAL DURING THE LOADING PROCESS.
SIX AXES DRIVEN:
1) X-AXIS IS A STEEL CORD PRECISION BELT DRIVE SYSTEM THAT MOVES THE MATERIAL ALONG ITS LENGTH.
2) Y-AXIS IS A GEAR DRIVEN SYSTEM THAT ROTATES THE MATERIAL WITH THE CHUCK.
3) Z-AXIS IS A HORIZONTAL BALL SCREW THAT MOVES THE TOOL CHANGER FROM SIDE TO SIDE.
4) A-AXIS IS A VERTICAL BALL SCREW THAT MOVES THE TOOL CHANGER UP AND DOWN.
5) B-AXIS IS A VERTICAL BALL SCREW THAT MOVES THE CENTER SUPPORT ROLLER UP AND DOWN TO KEEP LONG PIECES OF MATERIAL LEVEL DURING OPERATION.
6) C-AXIS IS A GEAR DRIVEN SYSTEM THAT ROTATES THE MATERIAL WITH THE GATE. (THIS IS AN ADD-ON OPTION AND NOT STANDARD ON THE A400 MACHINE.)
TOOL CHANGER:
1) THE BEND-TECH DRAGON TOOL CHANGER COMES WITH A PLASMA TORCH MOUNT, MARKER AND MOUNT, MOUNTED ENGRAVER, AND MOUNTED LASER LIGHT.
2) THE AUTOMATIC TOOL CHANGER ALLOWS FOR MARKING, ENGRAVING, AND CUTTING AT THE PUSH OF A BUTTON.
CONTROL BOX:
1) THE CONTROL BOX RECEIVES G-CODE COMMANDS FROM THE DRAGON SOFTWARE SUITE AND THEN OPERATES THE DRAGON A400.
2) THE CABLING ON THE DRAGON A400 IS HIGH-FLEX CABLE TO ELIMINATE USAGE WEAR.
3) THE DRAGON A400 HAS FOUR EMERGENCY STOP BUTTONS ON THE MACHINE.
4) LIMIT SWITCHES ARE LOCATED ON ALL SIX AXES OF MOVEMENT.
PART CATCHER AND COOLANT TRAY:
1) SMALL PARTS AND SLUGS WILL FALL INTO THE COOLANT TRAY. OTHER PARTS WILL FALL ONTO THE PART CATCHER.
TECHNICAL DOCUMENTS:
1) BEND-TECH PROVIDES ALL OF THE INFORMATION YOU NEED TO KNOW ON INSTALLING, SETTING UP, AND OPERATING THE DRAGON A400 THROUGH TECHNICAL DOCUMENTATION. THIS IS SHIPPED WITH THE MACHINE AND IS AVAILABLE ONLINE.
2) INCLUDED IN THE TECHNICAL DOCUMENTATION IS: THE INVENTORY OF PURCHASE, ASSEMBLY GUIDE, COMPUTER OPTIMIZATION GUIDE, TROUBLESHOOTING GUIDE, AND MAINTENANCE GUIDE.
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
Dragon A400 (12’) --------------------- $39,900.00
Dragon A400 (24’) --------------------- $44,900.00
Hypertherm Powermax 45 ----------------- $2,490.00
HYPERTHERM POWERMAX 65 ----------------- $3,500.00
HYPERTHERM POWERMAX 85 ----------------- $4,450.00
Thermal Dynamics Cutmaster 40i -------------- $2,750.00
Thermal Dynamics Cutmaster 60i -------------- $3,800.00
Thermal Dynamics Cutmaster 80 --------------- $4,800.00
Material Coolant System ------------------------ $3,700.00
Motorized Front Gate --------------------------- $8,900.00
Tekla & SDS2 Plugin -------------------------- $3,500.00
Software Site License ------------------------- $5,490.00
Additional Software Seat --------------------- $1,490.00
Dragon In-House Training ---------------------- $500 (+ $250 for each additional attendee)
Shipping and Crating ------------------------------ Estimated $3,500 (Varies by location)
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
