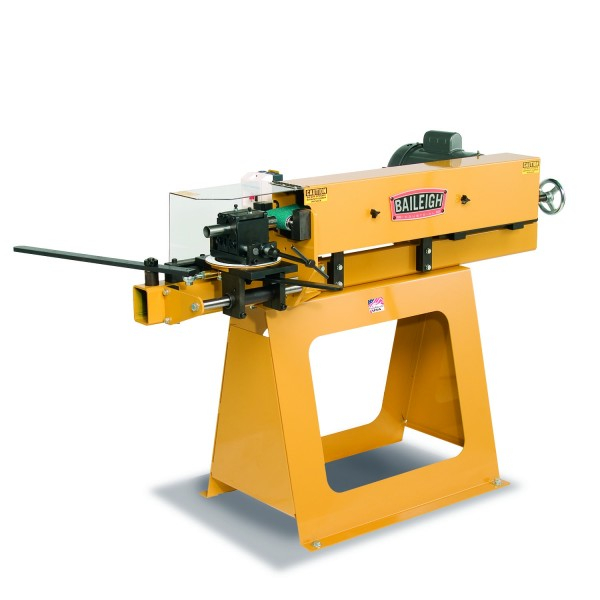

New BAILEIGH TN-400 | Notching Machines

SPECIFICATIONS:

MOTOR HP 3 HP
NOTCHING CAPACITY (OD) .75 in ?? 2 inch
ANGLE ADJUSTMENT 0 ?? 60??
BELT SIZE 4 in X 79 in
BELT SPEED 5420 FPM
POWER 220V / 1-PHASE
SHIPPING WEIGHT 480LBS
SHIPPING DIMENSIONS 72 inch X 44 inch X 48 inch

EQUIPPED WITH:

?? MADE IN THE USA.
?? 3 HP MOTOR RUNS ON 220-VOLT SINGLE-PHASE POWER.
?? IDEAL FOR COPING THE ENDS OF .75 inch OD TO 2 inch OD TUBING OR PIPE.

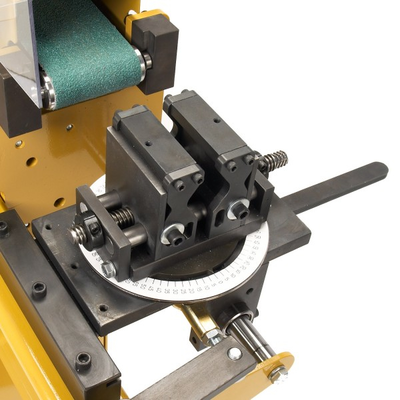

?? NOTCHES AT ALMOST ANY ANGLE UP TO 60??.
?? 79 inch X 4 inch BELT SPINS AT A SPEED OF 5420 FEET PER MINUTE.

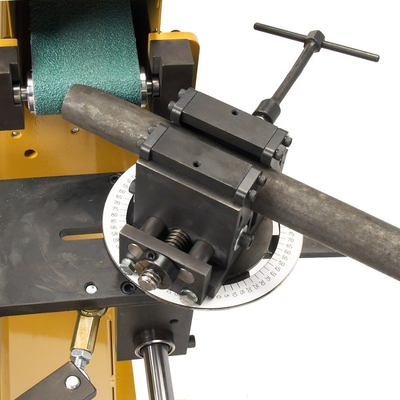

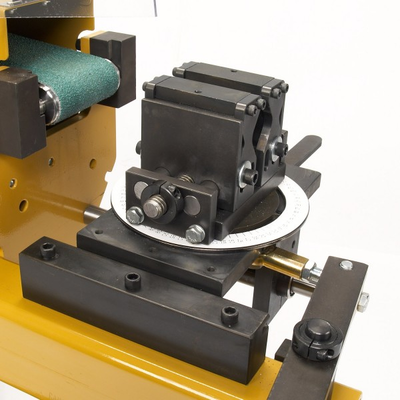

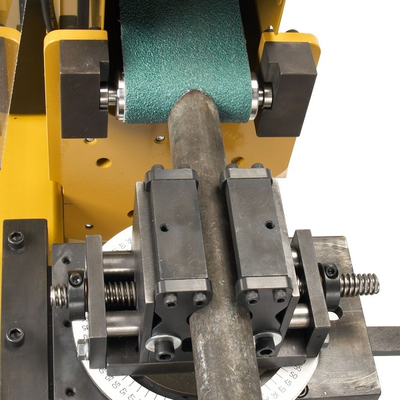

?? V-BLOCK DESIGN OF THE VISE JAWS KEEPS THE TUBE OR PIPE CENTERED WITH THE NOTCHING SPINDLE AND HOLDS IT SECURELY.

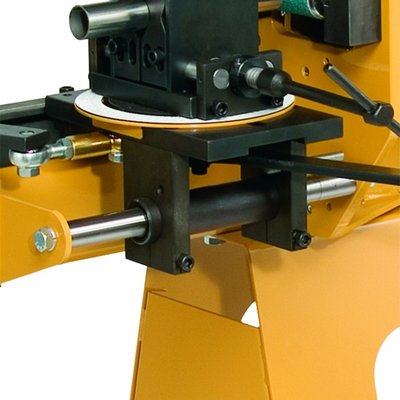

?? VISE CARRIAGE RIDES ON A SMOOTH THOMPSON?½ SHAFT ASSEMBLY DURING THE NOTCHING CYCLE.
?? PIVOTED CONTROL LEVER PRESSES THE MATERIAL PRESS INTO THE BELT.
?? QUICK-CHANGE TOOLING SYSTEM ALLOWS YOU TO SWAP OUT THE MANDREL IN SECONDS.
?? COMES STANDARD WITH 1.25 inch PIPE MANDREL.
?? CARRIAGE STOP ENSURES REPEATABLE NOTCHES EVERY TIME.
?? BAILEIGH COVERS THIS TUBING NOTCHER WITH A 1-YEAR PARTS WARRANTY PLUS LIFETIME TECHNICAL SUPPORT BY PHONE FROM OUR TEAM OF KNOWLEDGEABLE REPS.

SPECIFICATIONS SUBJECT TO VERIFICATION

DELIVERY: IMMEDIATE, SUBJECT TO PRIOR SALE
