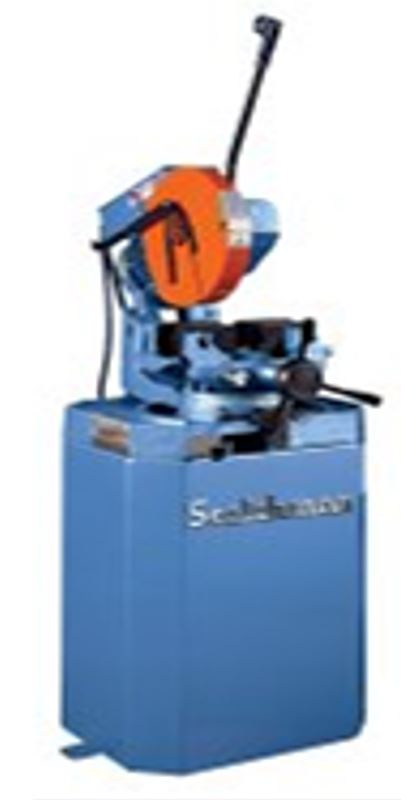

New SCOTCHMAN CPO 350LT | Saws, Cold & Carbide

SPECIFICATIONS:

MAX CAPACITIES:
ROUND TUBING -------------- 90?? = 4-1/2 in
45?? = 4 in
ROUND SOLID --------------- 90?? = 2 in
45?? = 1 3/4 in
SQUARE TUBING ------------- 90?? = 4 1/4 in x 4 1/4 in
45?? = 3 3/4 X 3 3/4
SQUARE SOLID -------------- 90?? = 2 in x 2 in
45?? = 1 3/4 in x 1 3/4 in
RECTANGLE TUBING ---------- 90?? = 5 1/2 in x 4 in
45?? = 3 3/4 in X 3 3/4 in
MITER CAPABILITIES ---------- 45?? LEFT TO 45?? RIGHT
MITER LOCKING DEVICE -------- STOPS @ 45?? L, 90?? & 45?? R
TWO CUTTING SPEEDS
LT ------------------------ 22/44 RPM
HT ------------------------ 44/88 RPM
ELECTRICS ------------------- 230 OR 460V / 3 PHASE
(MUST SPECIFY VOLTAGE)

EQUIPPED WITH:

MANUAL DOUBLE SELF-CENTERING VISE-BURR FREE CUTS.
OPERATOR CONTROLLED TRIGGER SWITCH.
CAPABLE OF SLOTTING.
DOUBLE REDUCTION, HARDENED AND GROUND WORM & WHEEL GEAR BOX.
WORM WHEEL OF TOP QUALITY BRONZE.
CHIP DRAWER.
SEVEN GALLON COOLANT TANK WITH PUMP.
ONE 315MM DIAMETER HIGH SPEED STEEL BLADE.
ONE BLADE WRENCH.
ONE GALLON CONCENTRATED COOLANT.
THREE-YEAR WARRANTY (PARTS ONLY).
MADE IN THE USA.

SPECIFICATIONS SUBJECT TO VERIFICATION

OPTIONAL FEATURES:

SQUARE TUBE/DIAGONAL VISE JAWS -------------------- $ 750.00
SPECIAL FORM JAWS (SAMPLES REQUIRED) -------------- $P.O.R.
UNIVERSAL CLAMPING FIXTURE(IF BOUGHT SEPARATELY) -- $1,250.00
MAG BRUSH ----------------------------------------- $ 89.00
10 ft SAW CONVEYOR ---------------------------------- $ 960.00
20 ft SAW CONVEYOR ---------------------------------- $1,695.00
5 ft SAW CONVEYOR W/ RHE QUICK-LOC ------------------ $1,245.00
5 ft SAW CONVEYOR W/ LHE QUICK-LOC ------------------ $1,245.00
10 ft SAW CONVEYOR W/ RHE QUICK-LOC ----------------- $1,495.00
10 ft SAW CONVEYOR W/ LHE QUICK-LOC ----------------- $1,495.00
8 ft DIGITAL QUICK-STOPSYSTEM-CPOLH(INCLUDESCONVEYOR) $6,095.00
8 ft DIGITAL QUICK-STOPSYSTEM-CPORH(INCLUDESCONVEYOR) $6,095.00
12 ft DIGITAL QUICK-STOPSYSTEM-CPOLH(INCLUDESCONVEYOR)$6,895.00
12 ft DIGITAL QUICK-STOPSYSTEM-CPORH(INCLUDESCONVEYOR)$6,895.00
BLADE GUIDE LASER LIGHT (FACTORY INSTALL) --------- $1,095.00
275 MM SAW BLADE (SPECIFY TOOTH) ------------------ $ 98.00
315 MM SAW BLADE (SPECIFY TOOTH) ------------------ $ 135.00
350 MM SAW BLADE (SPECIFY TOOTH) ------------------ $ 160.00
350 ECONOMY FABRICATING PACKAGE: (4) 315 MM DIAMETER SAW
BLADES, ONE 10 ft MATERIAL SUPPLY TRACK, 120 in MATERIAL STOP
TRACK W/ LEFT HAND QUICK-LOC, SQUARE TUBE/ DIAGONIAL VISE
JAWS & MAGNETIC BRUSH ----------------------------- $2,575.00
350 ECONOMY FABRICATING PACKAGE: (4) 315MM DIAMETER SAW
BLADES, ONE 10?? MATERIAL SUPPLY TRACK, 120 in MATERIAL STOP
TRACK W/RIGHT HAND QUICK LOC, SQUARE TUBE/DIAGONAL VISE JAWS
& MAGNETIC BRUSH ---------------------------------- $2,575.00

DELIVERY: SUBJECT TO STOCK
