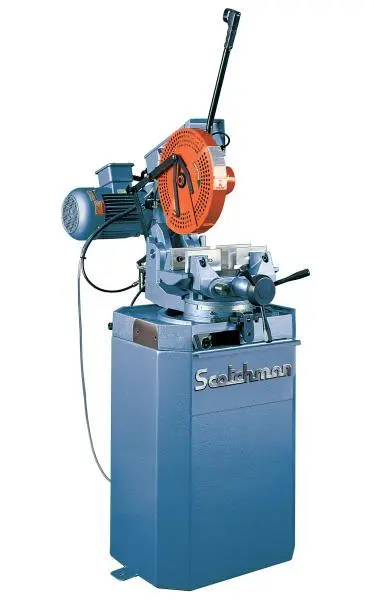

New SCOTCHMAN CPO 350 NF | Saws, Cold & Carbide

SPECIFICATIONS:
MAXIMUM CAPACITIES:
ROUND TUBING ------------------ 90°= 4 1/2 in X 45°= 4 in
ROUND SOLID -------------------- 90°= 3 in X 45°=2 1/2 in
SQUARE TUBE --------------------- 90° = 4-1/4"x4-1/4" & 45° = 4"x4"
SQUARE SOLID -------------------  90° = 3"x3" & 45° = 2-1/2"x2-1/2"
RECTANGLE TUBE ----------------- 90° = 5-1/2"x4" & 45° = 4"x4"
VOLTAGE -------------------------- 230 OR 460 VOLT/3PH ELEC.
MOTOR ---------------------------  5 HP MOTOR, 3,000 RPM
EQUIPPED WITH:
* MANUAL DOUBLE SELF-CENTERING VISE-BURR FREE CUTS
* OPERATOR CONTROLLED TRIGGER SWITCH
* CAPABLE OF SLOTTING
* MITER CAPABILITIES 45° LEFT TO 45° RIGHT
* MITER LOCKING DEVICE:  QUICK, ACCURATE SETTING - STOPS AT 45° LEFT, 90° AND 45° RIGHT
* POSTITIVE COG BELT DRIVEN
* CHIP DRAWER
* ONE GALLON COOLANT TANK WITH MIST LUBRICATION
* ONE 350MM DIAMETER CARBIDE TIPPED BLADE
* ONE BLADE WRENCH
* ONE GALLON COOLANT
* THREE-YEAR WARRANTY (PARTS ONLY)
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
SPECIAL FORM JAWS (SAMPLES REQUIRED) $P.O.R.
MOTOR BRAKE 220 VOLT $3,395.00
MOTOR BRAKE 440 VOLT $3,395.00
10' SAW CONVEYOR $1,075.00
20' SAW CONVEYOR $1,900.00
5' SAW CONVEYOR W/RHE QUICK-LOC $1,245.00
5' SAW CONVEYOR W/LHE QUICK-LOC $1,245.00
10' SAW CONVEYOR W/RHE QUICK-LOC $1,595.00
10' SAW CONVEYOR W/LHE QUICK-LOC $1,595.00
8' DIGITAL QUICK STOP SYSTEM-CPO-LH (INCLUDES CONVEYOR) $6,095.00
8' DIGITAL QUICK STOP SYSTEM-CPO-RH (INCLUDES CONVEYOR) $6,095.00
12' DIGITAL QUICK STOP SYSTEM-CPO-LH (INCLUDES CONVEYOR) $7,145.00
12' DIGITAL QUICK STOP SYSTEM-CPO-RH (INCLUDES CONVEYOR) $7,145.00
BLADE GUIDE LASER LIGHT (FACTORY INSTALLED) $1,095.00
300MM X 72TH CARBIDE BLADE $280.00
300MM X 120TH CARBIDE BLADE $425.00
300MM X 84TH CARBIDE BLADE $280.00
NON-FERROUS FABRICATING PACKAGE: ONE 350MM 84-TOOTH CARBIDE BLADE, ONE 10’ MATERIAL SUPPLY TRACK AND ONE 120” MATERIAL STOP TRACK W/LEFT HAND QUICK LOC. $2,195.00
NON-FERROUS FABRICATING PACKAGE: ONE 350MM 84-TOOTH CARBIDE BLADE, ONE 10’ MATERIAL SUPPLY TRACK AND ONE 120” MATERIAL STOP TRACK W/RIGHT HAND QUICK LOC. $2,195.00

DELIVERY:
SUBJECT TO STOCK
