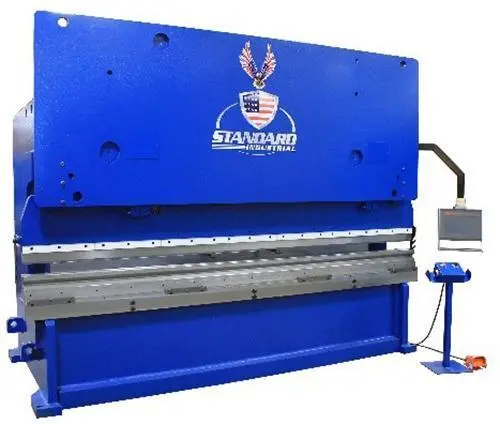

New STANDARD AB325-16 | Brakes, Hydraulic

SPECIFICATIONS:
TONNAGE FORMING/PUNCHING ----------------- 325/230
DISTANCE BETWEEN HOUSINGS ---------------- 14 ft5 in
BED/RAM OVERALL LENGTH ------------------- 16 ft
BELOW GRADE ------------------------------ NO
WEIGHT ----------------------------------- 66,000 LBS.
BED HEIGHT ------------------------------- 38 in
BED WIDTH -------------------------------- 12 in
THROAT DEPTH ----------------------------- 10 in
RAM STROKE (FULLY ADJUSTABLE) ------------ 8 in
OPEN HEIGHT (MAX. HEIGHT) ---------------- 16 in
CLOSED HEIGHT (MIN. HEIGHT) -------------- 8 in
HORSEPOWER ------------------------------- 30
RAM SPEED: APPROACH ---------------------- 112 IPM
PRESS ------------------------- 18 IPM
RETURN ------------------------ 89 IPM
OPTIONAL FEATURES:
THIS PACKAGE INCLUDES:
- A 7 YEAR PARTS IN LIEU OF STANDARD 5 YEAR PARTS WARRANTY
- A 2 YEAR PLC AND CNC WARRANTY
- A 5 YEAR ONSITE LIMITED LABOR WARRANTY
IN THE EVENT OF A PROBLEM THE CUSTOMER WILL BE
REQUIRED
TO HELP TROUBLESHOOT THE SITUATION OVER THE PHONE. IN THE
EVENT THE PROBLEM CANNOT BE DIAGNOSED AND TROUBLESHOOTING
HAS
BEEN EXHAUSTED, STANDARD INDUSTRIAL WILL SEND IN A
TECHNICIAN
AT NO CHARGE TO RESOLVE THE SITUATION.

100 TON THROUGH 400 TON PRESS BRAKE $5,200.00

START-UP / TRAINING / MAINTENANCE SERVICE

ONSITE FACTORY TRAINING/START-UP IS NOT INCLUDED OR
REQUIRED WITH PURCHASE OF A NEW PRESS BRAKE. DUE TO THE
SIMPLICITY OF OUR MACHINERY FORMAL TRAINING IS RARELY
REQUIRED. ALL CNC SYSTEMS ALREADY INCLUDE ONSITE TRAINING
IN
PRICE BUT THE TRAINING IS FOR THE CNC FUNCTIONS ONLY.

IF ONE DAY??S TRAINING/START-UP FOR THE MACHINE IS
REQUIRED ADD THE FOLLOWING CHARGE (DOES NOT INCLUDE
PHYSICAL
INSTALLATION/RIGGING/ELECTRICAL HOOK-UP, OIL INSTALLATION:
ALL
OF WHICH ARE TO BE COMPLETE BEFORE SERVICE TECHNICIAN
ARRIVES).

PACIFIC/MOUNTAIN TIME ZONE: $2,900.00
CENTRAL TIME ZONE $1,900.00
EASTERN TIME ZONE $2,500.00
ADD $600.00 FOR EACH ADDITIONAL DAY REQUIRED.

LUBRICATION SYSTEMS:
AUTOMATIC LUBRICATION SYSTEM (AIR POWER REQUIRED)
AUTOMATICALLY PUMPS EP-1 GREASE THROUGH
LUBRICATION SYSTEM VIA A TIMED SYSTEM.
ALSO INCLUDES FLOW ADJUSTABLE INJECTORS ------- $4,100.00

SAFETY CONTROLS:
LIGHT CURTAIN WITH FOOT SWITCH
FLOATING BLANK KEY-SWITCH INCLUDED, SOME PROGRAMMABILITY.
SIDE BARRIERS INCLUDED TO COMPLETELY PROTECT THROAT AREA OF
MACHINE. 1 YEAR WARRANTY ------------------- $6,500.00

LASER GUARDING SYSTEMS:
WRAPS LASERS AROUND PUNCH TO ALLOW OPERATOR CLOSER TO
PINCH-POINT AND STILL BE OSHA APPROVED. 1 YEAR WARRANTY.
(LASER GUARD SYSTEM NOT RECOMMENDED FOR PUNCHING/BOTTOMING
APPLICATIONS OR APPLICATIONS WITH MANY DIE CHANGES)
$12,900.00

REMOVABLE AND NON-REMOVABLE BED & RAM WIDTH EXTENSIONS:
MACHINING REQUIRED FOR REMOVABLE FLANGES FOR UP TO 12 ft
MACHINES ($1,600.00 EACH FOR BED AND RAM) ------ $3,200.00

REMOVABLE 5 in X5 in ANGLE FLANGES (MUST INCLUDE ABOVE
MACHINING)
10 in TOTAL ADDITIONAL WIDTH X 10 ft LONG BETWEEN END HOUSINGS
ONLY. FOR FLANGES LONGER THAN 10 ft CONTACT FACTORY.
($4,600.00 EACH FOR BED AND RAM) ------------- $12,200.00

NON-REMOVABLE PERMANENT BED & RAM FLANGES:
PRICE BELOW FOR 12 ft OVERALL AND SHORTER BRAKES
11-1/2 in WIDE X 10 ft BED & RAM FLANGES
(BETWEEN HOUSINGS ONLY) ----------------------- $6,400.00

14 in WIDE X 10 ft BED & RAM FLANGES
(BETWEEN HOUSINGS ONLY) ----------------------- $7,400.00

18 in WIDE X 10 ft BED & RAM FLANGES
(BETWEEN HOUSINGS ONLY) ---------------------- $10,600.00

SUPPORT ARMS/QUICK-RELEASE ARMS & ACCESSORIES:
T-SLOT SUPPORT ARMS:
24 in T-SLOT SUPPORT ARM ----------------------- $450.00 EA
WITH IMBEDDED SCALE ------------------ ADD $300.00 EA

36 in T-SLOT SUPPORT ARM ----------------------- $800.00 EA
WITH IMBEDDED SCALE ------------------- ADD $300.00 EA

48 in T-SLOT SUPPORT ARM ----------------------- $1,000.00 EA
WITH IMBEDDED SCALE ------------------- ADD $300.00 EA

GRAVITY STOP FOR T-SLOT SUPPORT ARM:
STOP IN T-SLOT ARM THAT ALLOWS MATERIAL
TO SLIDE OVER BUT KEEPS IT FROM BEING
ABLE TO SLIDE BACKWARDS ---------------------- $300.00 EA

5/8 in T-SLOT ACROSS FRONT EDGE OF BED:
ALLOWS LEFT TO RIGHT MOVEMENT OF T-SLOT SUPPORT ARMS
(PRICE PER FOOT) ----------------------------- $95.00

QUICK-RELEASE LINEAR WORK SUPPORT SYSTEM:
QUICK-CHANGE, QUICK-DISCONNECT STYLE SUPPORT ARMS WITH
HEAVY DUTY, SMOOTH TRANSITION ROLLER GUIDES FOR EASY ARM
MOVEMENT. MULTIPLE ADJUSTMENT POINTS ON ARMS FOR SUPER
PRECISION PLACEMENT.
SPECIAL SLOT/MACHINED SURFACE REQUIRED FOR
10 ft - 14 ft PRESS BRAKES ----------------------- $2,900.00
- (2) 24 in ARM SYSTEM --------------------- $5,900.00
- (2) 36 in ARM SYSTEM --------------------- $7,100.00

HORN EXTENSIONS, EXTRA OPEN HEIGHT, EXTRA THROAT DEPTH,
EXTRA THROAT:

TONNAGE,12 inch HORN,2 inch EXTRA ,4 inch EXTRA,2 inch EXTRA,2 inch EX.OPEN HT.
EXT.B&R, THROAT, THROAT, STROKE (PER EVERY 2 inch)

100, $3,900 $3,500 $4,500 $5,900 $700
150, $4,100 $3,800 $4,800 $5,900 $800
200, $4,500 $3,900 $4,900 $6,500 $900
250, $4,700 $4,200 $5,200 $6,500 $900
325, $5,000 $4,800 $7,000 $7,000 $1,100
400, $5,300 $5,400 $7,400 $7,000 $1,200

HORN EXTENSIONS PROVIDE 24 in OF EXTRA BED & RAM LENGTH.
LONGER EXTENSIONS ARE AVAILABLE UPON SPECIAL REQUEST.
TONNAGE
IS LIMITED ON HORNS PAST THE END FRAMES TO 10% OF OVERALL
MACHINE TONNAGE. CONSULT FACTORY FOR SPECIAL CHANGES NOT
LISTED ABOVE. ALL FRAME CHANGING OPTIONS WILL BE APPLIED TO
NEW ORDER MACHINES ONLY.

NOTE: LONGER STROKE NOT AVAILABLE ON 6 ft,8 ft, OR 10 ft BRAKES

NOTE: WHEN ORDERING MORE THAN 6 in OF EXTRA OPEN HEIGHT OR
THROAT DEPTH ON ANY TONNAGE CONSULT FACTORY FOR PRICE.

NOTE: WHEN ORDERING EXTRA STROKE, YOU DO NOT AUTOMATICALLY
GET EXTRA OPEN HEIGHT. WHEN ORDERING EXTRA OPEN HEIGHT, YOU
DO NOT AUTOMATICALLY GET EXTRA STROKE. BOTH EXTRA OPEN
HEIGHT AND EXTRA STROKE ARE SEPARATE OPTIONS.

TOOLING:
NOTE: THE CUSTOMER AND/OR DEALER HAVE FULL RESPONSIBILITY
FOR
HOW WELL ANY DIE SETS WORK FOR THEIR APPLICATIONS. (DIES
QUOTED BELOW ARE SUBJECT TO 1 YEAR DIE MANUFACTURER ftS
WARRANTY. CONTACT FACTORY FOR OTHER LENGTHS OF DIE SETS.
DIE ROLLOVER BARS COME STANDARD WITH PURCHASE OF A 4-WAY
DIE
SET OR ARE $150.00 WITHOUT PURCHASE OF 4-WAY DIE SET.

DIE HOLDERS FOR AMERICAN STYLE TOOLING:
3 in X 3 in X 12 ft -------------------------------- $2,600.00
3 in X 3 in X 14 ft -------------------------------- $2,800.00

FOUR WAY DIE SETS:
#225 TOOLING PACKAGE FOR 18 GAUGE UP TO 3/16 in PLATE:
- (1) 1.5 in NET HEIGHT DIE HOLDER
- (1) 3.75 in LONG X 1-1/8 in WIDE, 85 DEGREE PUNCH WITH 3/64 in
RADIUS
- (1) 2.25 in SQUARE DIE BLOCK WITH 1/2 in , 3/4 in , 1 in , & 1-1/2 in
in V in DIE OPENINGS AT 85 DEGREES.
7.5 in STACK HEIGHT-NOTE: CONSIDER DIE PENETRATION

8 ft IN LENGTH -------------------------------- $5,100.00
10 ft IN LENGTH -------------------------------- $5,500.00
12 ft IN LENGTH -------------------------------- $6,000.00
14 ft IN LENGTH -------------------------------- $6,500.00
16 ft IN LENGTH -------------------------------- $6,900.00
20 ft IN LENGTH -------------------------------- $8,700.00

#325 TOOLING PACKAGE FOR 12 GAUGE UP TO 1/4 in PLATE:
- (1) 2 in NET HEIGHT DIE HOLDER
- (1) 3-3/4 in LONG X 1-1/2 in WIDE, 85 DEGREE PUNCH WITH 3/64 in
RADIUS
- (1) 3-1/4 in SQUARE DIE BLOCK WITH 3/4 in , 1 in , 1-1/2 in , & 2 in
in V in DIE OPENINGS AT 85 DEGREES.
9 in STACK HEIGHT-NOTE: CONSIDER DIE PENETRATION

8 in IN LENGTH -------------------------------- $6,200.00
10 ft IN LENGTH -------------------------------- $6,500.00
12 ft IN LENGTH -------------------------------- $7,200.00
14 ft IN LENGTH -------------------------------- $8,000.00
16 ft IN LENGTH -------------------------------- $8,400.00
20 ft IN LENGTH -------------------------------- $10,000.00

#475 TOOLING PACKAGE FOR 10 GAUGE UP TO 3/8 in PLATE:
- (1) 2-1/2 in NET HEIGHT DIE HOLDER
- (1) 3-1/4 in LONG X 2 in WIDE, 85 DEGREE PUNCH WITH 1/8 in
RADIUS
- (1) 4-3/4 in SQUARE DIE BLOCK WITH 1 in , 1-1/2 in , 2-1/2 in , & 3 in
WIDE in V in DIE OPENINGS AT 85 DEGREES. TOTAL OF 10.5 in STACK
HEIGHT

12 ft IN LENGTH -------------------------------- $9,600.00
14 ft IN LENGTH -------------------------------- $10,400.00
16 ft IN LENGTH -------------------------------- $12,000.00
20 ft IN LENGTH -------------------------------- $16,500.00

#575 TOOLING PACKAGE FOR 10 GAUGE UP TO 1/2 in PLATE:
- (1) 2-1/2 in NET HEIGHT DIE HOLDER
- (1) 3-3/4 in LONG X 1-1/2 in WIDE, 85 DEGREE PUNCH WITH 1/8 in
RADIUS
- (1) 2-3/4 in LONG X 2-1/2 in WIDE, 85 DEGREE PUNCH WITH 1/4 in
RADIUS
- (1) 5.75 in SQUARE DIE BLOCK WITH 1 in ,2 in ,3 in AND 5 in in V in DIE
OPENINGS AT 85 DEGREES. TOTAL OF 12 in STACK HEIGHT W/TALL
PUNCH AND 11.5 in STACK HEIGHT WITH SHORT PUNCH

12 ft IN LENGTH ------------------------------- $14,700.00
14 ft IN LENGTH ------------------------------- $16,600.00
16 ft IN LENGTH ------------------------------- $18,800.00
20 ft IN LENGTH ------------------------------- $23,400.00

#625 TOOLING PACKAGE FOR 10 GAUGE UP TO 1/2 in PLATE:
-(1) 2 1/2 in NET HEIGHT DIE HOLDER
-(1) 3 3/4 in LONG X 1 1/2 in WIDE, 85 DEGREE PUNCH WITH 1/8 in
RADIUS
-(1) 2 3/4 LONG X 2 1/2 in WIDE, 85 DEGREE PUNCH WITH 1/4 in
RADIUS
-(1) 6.25 in SQUARE DIE BLOCK WITH 2 in , 3 in , 4 in , AND 5 in V DIE
OPPENINGS AT 85 DEGREES. TOTAL OF 12.5 in STACK HEIGHT W/
TALL PUNCH AND 11.5 in STACK HEIGHT WITH SHORT PUNCH

12 ft IN LENGTH ------------------------------ $18,800.00
14 ft IN LENGTH ------------------------------ $20,600.00
16 ft IN LENGTH ------------------------------ $22,400.00
20 ft IN LENGTH ------------------------------ $26,800.00

NOTE: SMITH MACHINERY COMPANY CAN SUPPLY ANY TOOLING IN
ANY CONFIGURATION THAT YOU REQUIRE. JUST CONTACT US FOR
QUOTES.

WILLA CROWNING AND CLAMPING SYSTEMS:
MANUAL AND CNC CROWNING UNITS USED FOR FINE TUNING FORMING
APPLICATIONS. WHEN USING WITH 4-WAY DIE SETS ADD $700.00
FOR CLAMPS TO HOLD 4-WAY DIE BLOCKS FROM 2.25 in UP TO 4.25 in .
LARGER 4-WAY DIE SETS WILL REQUIRE E-WIDE OR LARGER
CROWNING UNITS.

MANUAL CROWNING UNIT:
WILLA E-SERIES:
SINGLE POINT ADJUST. W/MANUAL WRENCH ADJUSTMENT
(FOR DIES UP TO 3.5 in WIDE)

(6 ft) --------------------------------------- $9,100.00
(8 ft) --------------------------------------- $9,400.00
(10 ft) --------------------------------------- $10,100.00
(12 ft) --------------------------------------- $11,400.00
(14 ft) --------------------------------------- $12,600.00

WILLA T-10:
SINGLE POINT ADJUST. W/MANUAL CRANK ASSEMBLY AND COUNTER
(FOR DIES UP TO 3.5 in WIDE)

(6 ft) -------------------------------------- $10,900.00
(8 ft) -------------------------------------- $11,900.00
(10 ft) -------------------------------------- $13,500.00
(12 ft) -------------------------------------- $14,900.00
(14 ft) -------------------------------------- $16,900.00
(16 ft) -------------------------------------- $19,800.00
(20 ft) -------------------------------------- $22,700.00

(CNC CROWNING FOR T-10, ADD $3,900 ESA CONTROLS)

WILLA E-WIDE:
SINGLE POINT ADJUST.
(FOR DIES UP TO 6 in WIDE)

(12 ft) --------------------------------------- $18,300.00
(14 ft) --------------------------------------- $21,000.00
(16 ft) --------------------------------------- $24,100.00
(20 ft) --------------------------------------- $26,900.00

WILLA RAM CLAMPING SYSTEMS:
BEST UTILIZED FOR CUSTOMERS WHO CHANGE DIES 5-8 TIMES OR
MORE ON A GIVEN WORK DAY - PRICE INCLUDES INSTALLATION AT
FACTORY.

NOTE: MACHINES ORDERED WITH WILA RAM CLAMPING SYSTEMS WILL
NOT INCLUDE STANDARD RAM CLAMPS, THE MACHINE WILL HAVE THE
WILA SYSTEM ONLY. UNLESS THE MACHINE ORDERED IS QUICK
DELIVERY AND ALREADY IN THE BUILD SCHEDULE IN WHICH WE WILL
INSTALL WILA SYSTEM INTO OUR RAM CLAMPS.

WILL REDUCE THE OPEN HEIGHT OF THE MACHINE BY 2 in IF ORDERED
AS A RETRO-FIT

TOOLING FOR WILA QUICK-CHANGE RAM CLAMPING SYSTEMS QUOTED
REQUIRE: AMERICAN STYLE TOOLING SAFETY TANGS WITH ALL
PUNCHES

WILA HYDRAULIC QUICK-CHANGE, POWER RAM CLAMPING SYSTEMS:
(8 ft) ------------------------------------- $13,300.00
(10 ft) ------------------------------------- $15,300.00
(12 ft) ------------------------------------- $16,900.00
(14 ft) ------------------------------------- $22,700.00
(16 ft) ------------------------------------- $19,100.00
(20 ft) ------------------------------------- $22,900.00

RAM CONTROL:
ADDITIONAL FOOT SWITCH AND PEDESTAL CONTROL:
ONE PEDESTAL AND ONE FOOT
SWITCH IS STANDARD ----------------------- $2,100.00

AUTO RETURN OF RAM:
NORMAL OPERATION OF RAM REQUIRES OPERATOR TO RELEASE FOOT
SWITCH TO ALLOW RAM TO RETURN TO UPPER LIMIT. THIS OPTION
MAKES THE RAM RETURN AUTOMATICALLY EVEN IF FOOT SWITCH IS
STILL DEPRESSED -------------------------- $700.00

LOW SPEED RETRACT:
RAM RETURNS IN SUPER SLOW MODE TO ALLOW EASIER HANDLING OF
LARGE WORK PIECES. TYPICALLY FOR 400 PLUS TON & LARGER
FLANGE
WORK ------------------------------------- $600.00

DECOMPRESSION SYSTEM:
REQUIRED FOR BOTTOMING APPLICATIONS
- ALLOWS OIL PRESSURE TO BLEED OFF TO REDUCE SHOCK TO
HYDRAULIC SYSTEM ------------------------- $900.00

NOTE: ABOVE POWER BACK GAUGES USE A PLC THAT ARE COVERED BY
A 2-YEAR PARTS WARRANTY, THE REMAINING BACK GAUGE PARTS ARE
COVERED BY OUR STANDARD 5-YEAR PARTS WARRANTY.

RECOMMENDED WITH ANY MANUAL OR POWER BACK GAUGE IS A 4
POSITION INLINE DEPTH STOP THAT ALLOWS OPERATOR TO PRE-PRE
SET UP TO (4) DIFFERENT RAM DEPTHS (Y-AXIS) AND THE ABILITY
TO CHOOSE ANY OF THESE PRE-SET DEPTHS FROM THE PEDESTAL IN
FRONT OF THE MACHINE. ADD $1,600.00 TO ANY MANUAL OR POWER
BACK GAUGE OPTION.

CNC CONTROLS & GAUGING SYSTEMS:
(1) DAY TRAINING INCLUDED FOR ALL CNC SYSTEMS IN
CONTINENTAL U.S. (FOR MEXICO AND CANADA ADD $1,000.00)

CNC 9 X 9 AXIS 24 in TRAVEL POWER BACKGAUGE
X AXIS ONLY, HEAVY DUTY BACKGAUGE.
600 I.P.M. TRAVEL SPEED, PROGRAM UP TO 9 BENDS,
9 BENDS PER CYCLE, BEND ALLOWANCE, GAUGE OFFSET.
G24HD DUAL DRIVE GAUGING SYSTEM WITH 24 in OF TRAVEL
$11,900.00

SIMPLE 2-3 X AXIS CNC
CNC 300 2-3 AXIS GAUGING SYSTEM
AUTOMEC 300 SERIES CONTROL: WITH 24 in OF GAUGE TRAVEL:
- 300 PROGRAMS - 32 BENDS PER PROGRAM
- INCH TO METRIC CONVERSION - 11 DIGIT PART NUMBERS
- RAM DEPTH MODE - BEND ALLOWANCE
- RS232 INTERFACE - TEACH MODE
- RAM ANGLE MODE - TOOLING LIBRARY
- OFF-LINE PROGRAMMING - GAUGE RETRACT/DELAY
- AUTO RAM REFERENCE - ONSITE TRAINING
- GAUGE REVERSAL ON PINCH POINT

CNC300/G24HD 2-AXIS ------------------- $20,900.00
- R-AXIS ADD -------------------------- $5,200.00
- 48 in TRAVEL ADD ---------------------- $10,300.00

SOPHISTICATED CNC FROM 1-6 AXIS
(NOTE: MECHANICAL RAM LIMIT SWITCHES ARE NOT INCLUDED WITH
ESA UNITS)

630 CONTROL WITH TOOLING GRAPHICS 1-4 AXIS

UP TOCROWNING
-EASY TO USE BUT EXTREMELY VERSATILE CONTROL WITH ON-SCREEN
2D TOOLING GRAPHICS.
-10 in COLOR TOUCHSCREEN MOUNTED ON PENDANT
-2D GRAPHICAL OFFLINE SOFTWARE FOR DESKTOP PROGRAMMING
AVAILABLE OPTIONALLY
-AVAILABLE WITH X/Y/R AND CNC CROWNING AXIS PROGRAMMABILITY
(CROWNING OPTIONAL)
-THOUSANDS OF HARD DRIVE JOB STORAGE PLUS UNLIMITED JOB
STORAGE VIA USB PORT RS232 PORT ETHERNET
-EXTENSIVE TOOLING LIBRARY
-READILY ACCEPTS MOST TOOLING FILES
-PROGRAMMABLE DELAY AND RETRACT AT PINCH POINT
-INCH/MM CONVERSION
-29 ft OF X AXIS GAUGE TRAVEL (OPTIONAL 39 in )
-8 in ADJUSTABLE MANUAL R OR OPTIONAL POWER R
-AUTO RETURN OF RAM INCLUDED
-LOW SPEED RETRACT INCLUDED
-DWELL/ DECOMPRESSION INCLUDED
-ONE DAY ONSITE TRAINING IN CONTIGUOUS U.S.

630 W/Y AXIS CONTROL ONLY ( NO BACKGAUGE) ------- $6,400.00
630X/Y AXIS 29 in GAUGE TRAVEL --------------------- $20,700.00
630 X/Y AXIS 24 in TRAVEL TRIPLE DRIVE GAUGE(AB400-16 OR
LARGER --------------------------------------- $28,200.00

2D OFF-LINE PROGRAMMING SOFTWARE ----------------- $900.00
R AXIS ADD --------------------------------------- $5,200.00
39 in OF GAUGE TRAVEL IN LIEU OF 29 in --------------- $3,500.00
PROGRAMMABLE TONNAGE ----------------------------- $700.00
ADDITIONAL FINGER -------------------------------- $1,100.00
RADAN 3D DXF/DWG FILE TRANSFER CAPABILITY-- CONTACT FOR
QUOTE

640 2D GRAPHICAL CONTROL 1-6 AXIS

UP TO CNC CROWNING
-FULLY 2D GRAPHICAL CONTROL WITH TOUCHSCREEN
-15 in COLOR SCREEN ON PENANT
-3D ON SCREEN PART VIEWING
-CROWNING CORRECTION IN DEGREES ( CROWNING UNIT SOLD
SEPARATELY)
-2D IDENTIFICATION OF BEST BENDING SEQUENCES
-2D GRAPHICAL OFFLINE SOFTWARE FOR DESKTOP PROGRAMMING
-2D COLLISION DETECTION
-UNLIMITED JOB STORAGE VIA USB &RS232 PORTS EHERNET
-X,Y,R,Z1-Z2 PROGRAMMABILITY
-READILY ACCEPTS MOST TOOLING FILES
-30,000 HARD DRIVE PROGRAMS
-PROGRAMMABLE DELAY & RETRACT AT PINCH POINT
-DIRECT CONNECTION OF OPTIONAL MITUTOYO PROTRACTOR AND
ANGLECHECK DEVICES TO ALLOW PROCESS ANGLE MEASURMENT
-INCH/MM CONVERSION
-AUTO RETURN OF RAM INCLUDED
-LOW SPEED RETRACT INCLUDED
-DWELL/DECOMPRESSION INCLUDED
-ONSITE TRAINING AT CUSTOMER ftS FACILITY

640 W/2D GRAPHICS WITH X AND Y AXES-------------$26,100.00
640 W/ X AND Y AXES W/ TRIPLE DRIVE GAUGE (AB400-16 AND
LARGER------------------------------------------$36,100.00

R AXIS ADD--------------------------------------$5,200.00
39 in OF GAUGE TRAVEL IN LIEU OF 29 in --------------$3,500.00
PROGRAMMABLE TONNAGE----------------------------$700.00
2D GRAPHICAL OFF-LINE SOFTWARE------------------$900.00
ADDITIONAL FINGER-------------------------------$1,100.00
RADAN 3D/ DXF/DWG FILE TRANSFER CAPABILITY---CONTACT FOR
PRICE
Z1-Z2 AXIS--------------------------------------$9,900.00
(MUST HAVE R AXIS)

(NOTE: MECHANICAL RAM LIMIT SWITCHES NOT INCLUDED W/ ESA)

HIGH SPEED HYDRAULICS PACKAGES:

TONNAGE STANDARD SYSTEM HI-SPEED SYSTEM PRICE
APP PRESS RET APP PRESS RET
200 107 20 139 183 20 236 $7,100.00
250 102 16 132 150 16 195 $7,100.00
325 90 18 116 159 18 127 $7,100.00
400 110 17 106 149 17 143 $7,600.00

PAINT COLOR

BLUE WITH WHITE TRIM IS STANDARD ON ALL MACHINES??CHARCOAL
IS AVAILABLE AT NO CHARGE BUT MUST BE REQUESTED.

SPECIAL PAINT COLOR (SINGLE COLOR INDUSTRIAL ENAMEL ONLY)
A SAMPLE IS REQUIRED $700.00

DEPOSIT/ORDER ENTRY

A 25% NON-REFUNDABLE DEPOSIT IS REQUIRED AT THE POINT
OF ORDER ENTRY AND THE DELIVERY SCHEDULE WILL NOT BEGIN
UNTIL THE DEPOSIT IS RECEIVED AT STANDARD INDUSTRIAL.
CUSTOMER IS ALSO REQUIRED TO PAY FOR AND ACCEPT DELIVERY OF
MACHINE(S) AT PREVIOUSLY AGREED UPON MONTH OF COMPLETION.

VOLTAGE

IF THE MACHINE IS 50 H.P. OR MORE, THERE WILL BE A
$3,000.00 CHARGE FOR 230, 208 OR 200 VOLTS. THE STANDARD
VOLTAGE IS 230-3-60 UP TO 40 H. P. BUT CAN BE SUPPLIED UP
TO 480-3-60 AT NO CHARGE. 50 H. P. MACHINES AND ABOVE ARE
STANDARD WITH 480-3-60. OTHER VOLTAGES, PHASES AND HERTZ
ARE AVAILABLE BUT ARE SUBJECT TO PRICE INCREASES.
