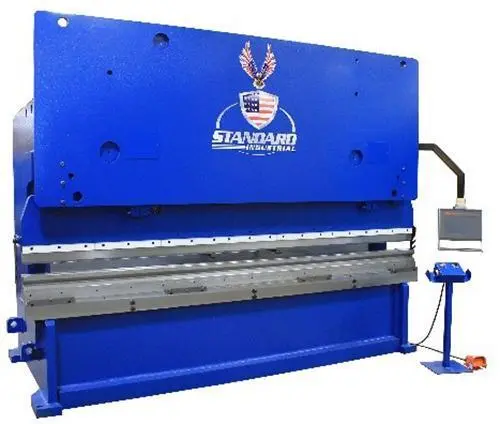

New STANDARD AB325-18-20 | Brakes, Hydraulic

SPECIFICATIONS:
FORMING TONNAGE ------------------- 325 TONS
BED/RAM OVERALL ------------------- 18 ft- 20 ft
DISTANCE BETWEEN HOUSINGS --------- 16 ft5 in
OPEN HEIGHT ----------------------- 16 in
STROKE ---------------------------- 8 in
CLOSED HEIGHT --------------------- 8 in
BELOW GRADE ----------------------- (YES)
THROAT DEPTH ---------------------- 10 in
BED WIDTH ------------------------- 10 in
BED HEIGHT ------------------------ 38 in
WEIGHT ---------------------------- 75,000 LBS.
HEIGHT ABOVE FLOOR ---------------- 134 in
HORSEPOWER ------------------------ 30 HP. MOTOR
RAM SPEEDS (APPROACH) ------------- 74 IPM
(PRESS) ------------- 18 IPM
(RETURN) ------------- 134 IPM
ELECTRICS ------------------------- 230-3-60 OR 460-3-60
(FIELD CHANGEABLE)
OPTIONAL FEATURES:See PDF attached (March 2024 MODEL AB Press Brake Options--All Sizes.pdf)
