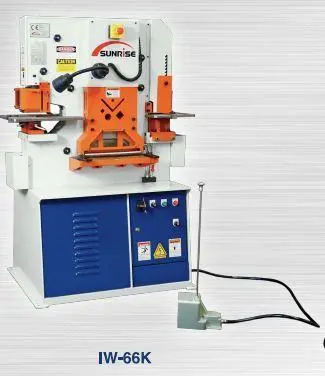

New SUNRISE IW-66K | Ironworkers

Specifications:
Punch:
Punching Pressure - 66 Ton
Punch Capacity - 7/8" x 3/4" or 1-1/2" in 7/16" material
Throat Depth - 7-7/8"
Maximum Stroke Length - 1.5"
Cycles - 34/Min.
Working Height- 41" to top of die
Angle Shear:
At 90° Shearing - 4" x 4" x 5/16"
Working Height - 42"
Section Shear:
Round Bar Shear - 1.5"
Square Bar Shear - 1.5"
Channel Notching - 4" (channel blades optional)
Working Height - 41"
Plate Shear:
Maximum W x T - 14" x 9/16"
Working Height - 31"
Notching:
Rectangular Notcher - 2-1/2" width x 3-1/2" depth in 5/16" material
Vee-Notcher - 3.5" x 3.5" in 5/16" material (V-notcher optional)
Working Height - 41"
Other:
Electric Power - 7.5 HP, 3/60/220 or 480
Weight - 2,925 lbs
Dimension - 60" L x 30" W x 64" H
Features:
     SUNRISE K-Series Ironworkers range in capacities from 50 to 95 Tons and feature a vertical cylinder design. The K-series ironworkers are built with the SUNRISE tradition of well-engineered products for high power, quality, and reliability at an incredible price.
     The low-pressure setting for tool change and spotting provides maximum operator safety. The quick, fully adjustable cylinder stroke and optional deep throat enable mounting a wide range of special equipment such as press brakes, vee-notchers, custom tooling, and more.
     The large punching base with the “T-slots” provides a solid base for securing the punch tooling, as well as a wide range of optional and custom-designed tooling.
     SUNRISE ironworkers offer the lowest cost of ownership among leading ironworker brands due to the bronze bushings and gibings, multi-sided blades, and the highest quality components as well a standard three-year parts warranty.
Equipped With:

* Three fully integrated working stations
* Single cylinder operation with remote foot pedal for the punch and shearing stations
* Compact strong design featuring vertical movement of slide provides optimum results for all stations
* Fast cylinder stroke for increased efficiency
* Heavy-Duty adjustable punch stripper with visibility window
     * Keyed quick-change punch holder
     * Slug bucket
* Die holder with single opening for punching up to 1-1/2" diameter
* T-slot bolster for rapid adjustment of die holder and easy accessory mounting
* Machined punch gauging table with removable front section, adjustable X-Y back stops and recessed scales.
* Hydraulic hold-down for integrated angle, section, and plate shearing stations with awareness barrier and ball-valve shut off.
* Angle shear with no material loss cut.
* Section shear with multiple openings for 90 degree shearing of round and square bar up to machines capacity
* Plate shear with special rake angle to keep shearing deformation to a minimum. Four useable-edge lower blade two useable-edge upper blade
     * Support table for plate shear with adjustable guides and scribe marks
* 40" electric touch-and-go back gauge adjustable to accommodate plate and angle shear
* Notching station with rectangular blades for shearing flat bar or angles (Triangular notcher available)
     * Machined notcher gauging table with adjustable X-Y stops and recessed scales Notcher station safety guard
* Jog or full-stroke functions

* 11 sets punches and dies, SUNRISE Type: 3/8",1/2",9/16",11/16",13/16" 15/16",1",1-1/16",1-1/4",1-3/8",1-1/2"
* Hydraulic and electrical systems with high quality components
* Hydraulic system protected with suction strainer and spin on return line filter.
* Electrics for 3/60/220- or 480-volt operation. Low voltage at the controls.
* Emergency stop palm buttons on both ends of machine
* Tool kit, and instruction manual

Notes:
Specifications Subject to Verification
Optional Features:
Urethane Punch Stripper: $850.00
Multi Opening Press Brake Attachment indexed Left to Right - 10": $1,450.00

Single-Vee Press Brake Attachment indexed Front to Back for larger plates - 6-1/4 x 5/16" capacity.: $1,250.00

3.5" x 3.5" Triangular Notcher Set for Notcher End - Includes Gauging Table.: $1,250.00
Single phase voltage option: $1,300.00

Delivery:
Subject to Stock
