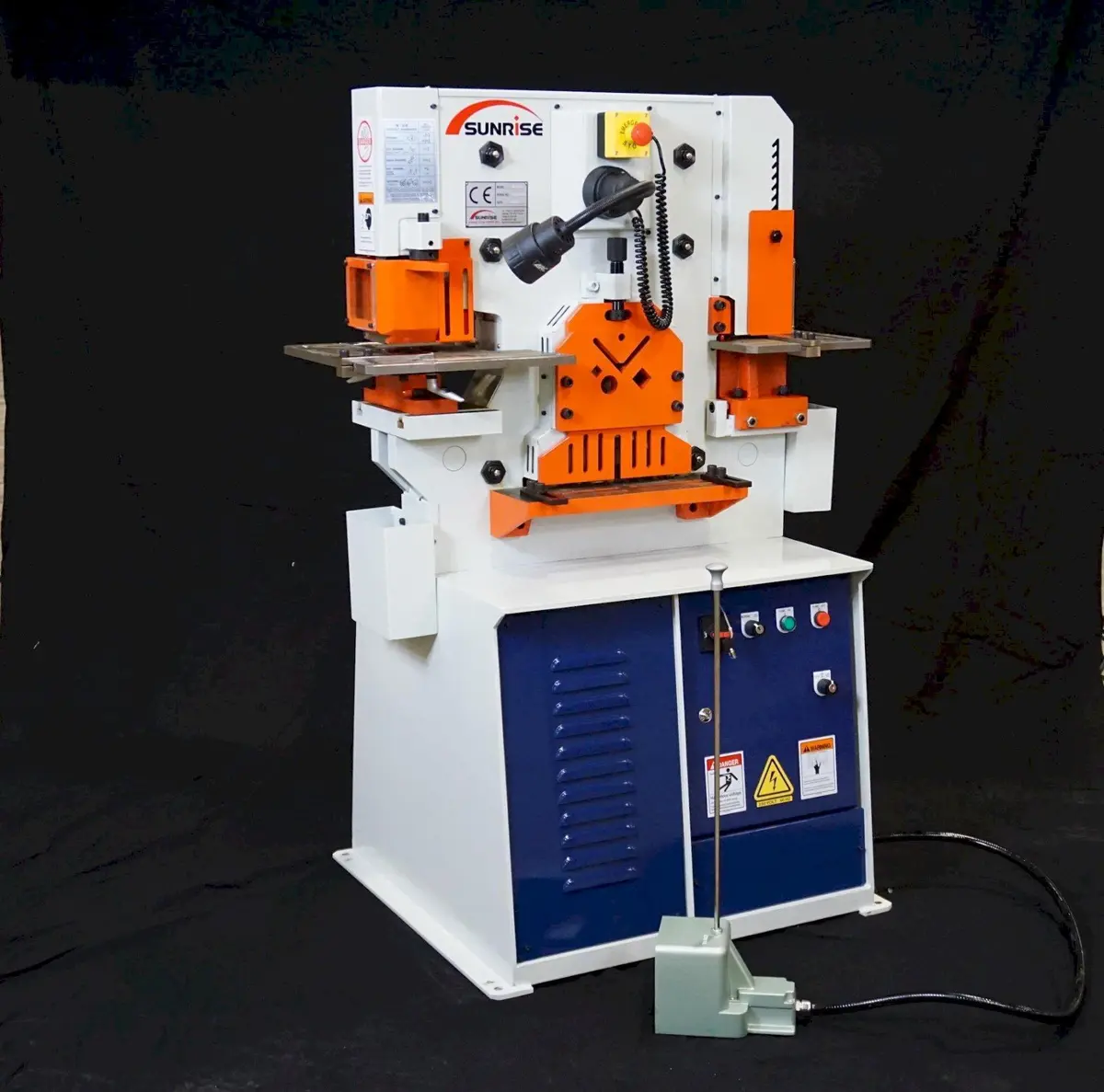

New SUNRISE IW-50K | Ironworkers

SPECIFICATIONS:

Capacities in Mild Steel
PUNCH - 50 tons
PUNCH CAPACITY - 1-1/2" in 3/8" material or 13/16" in 11/16" material
Throat depth - 6-1/2"
Stroke length - 1-3/16"
Cycles - 37/min
Working Height - 41" to top of die
ANGLE SHEAR
Maximum capacity 90° - 3" x 3" x 1/4"
Working Height - 39"
SECTION SHEAR
Round bar capacity - 1-3/16"
Round bar openings: 3/8" and 1-1/8"
Square bar capacity - 1"
Square bar openings: 1" and 1/2"
Channel capacity - 3" (channel blades optional)
Working Height - 39"
PLATE SHEAR
Maximum W x T - 12" x 3/8"
Angle mitering capacity - 3-1/2"
Working Height - 31"
NOTCHER - 2" width x 3-1/2" depth in 1/4" material
V-notcher - 3-1/2" x 3-1/2" in 5/16" material (V-notcher optional)
Working Height - 41"
OTHER:
Motor - 5HP
Electrics - 3/60/220 or 480
Weight - 1,848 lbs
Dimensions - 41" L x 30" W x 58" H
EQUIPPED WITH:

* Three fully integrated working stations.
* Single cylinder operation with remote foot pedal for the punch and shearing stations.
* Compact strong design featuring vertical movement of slide provides optimum results for all stations.
* Fast cylinder stroke for increased efficiency.
* Heavy-Duty adjustable punch stripper with visibility window:
      * Keyed quick-change punch holder.
      * Slug bucket.
* Die holder with single opening:
     * T-slot bolster for rapid adjustment of die holder and easy accessory mounting.
* Machined punch gauging table with removable front section, adjustable X-Y back stops and recessed scales.
* Angle shear with no material loss cut:
     * 45 degree miter cut of angles one leg at a time (via opening in plate shear).
* Section shear for 90 degree shearing of round and square bar up to machines capacity.
* Plate shear with special rake angle to keep shearing deformation to a minimum. Four useable-edge lower blade two useable-edge upper blade:
     * Support table for plate shear with adjustable guides and scribe marks.
     * Adjustable plate shear hold down with opening for miter cutting of angles.
* 40" back gauge adjustable to accommodate plate and angle shear.
* Notching station with rectangular blades for shearing flat bar or angles (Triangular notcher available):
     * Machined notcher gauging table with adjustable X-Y stops and recessed scales.
     * Notcher station safety guard.
* Jog or full-stroke functions.
* 11 sets punches and dies, SUNRISE Type: 3/8",1/2",9/16",11/16",13/16" 15/16",1",1-1/16",1-1/4",1-3/8",1-1/2".
* Hydraulic and electrical systems with high quality components.

* Hydraulic system protected with suction strainer.
* Electrics for 3/60/220 or 480 volt operation. Low voltage at the controls.
* Emergency stop palm buttons on both ends of machine.
* Tool kit, and instruction manual.

NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
* Urethane Punch Stripper: $850.00
* Single phase voltage option: $1,500.00

* Single-Vee Press Brake Attachment indexed Front to Back for larger plates - 6-1/4 x 5/16" capacity.: $1,250.00

* 3.5" x 3.5" Triangular Notcher Set for Notcher End - Includes Gauging Table.: $1,250.00
* Multi Opening Press Press Attachment indexed Left to Right - 10": $1,450.00

DELIVERY:
SUBJECT TO STOCK
