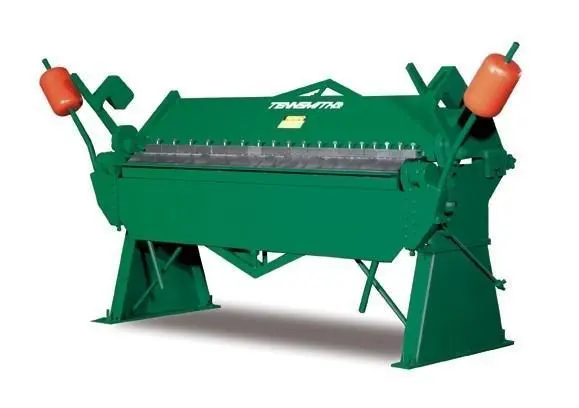

New TENNSMITH F6 96-12 | Brakes, Box & Pan (incld Finger)

FEATURES:
TENNSMITH BOX AND PAN HAND BRAKES ARE AN ECONOMICAL TOOL FOR A WIDE RANGE OF SHEET METAL BENDING AND FORMING APPLICATIONS.

THE MODEL F696-12 IS RATED FOR 12 GAUGE MILD STEEL AND 16 GAUGE STAINLESS. THIS HAND BRAKE IS IDEAL FOR BOTH BOX AND PAN AND STRAIGHT BENDING IN HOT AND COLD ROLLED PLATE, STAINLESS STEEL, ALUMNINUM AND HEAVY PLASTIC. AMPLE CLAMING AND NOSE BAR ADJUSTMENTS ALLOW FOR THE BEND RADIUS NECESSARY FOR YOUR APPLICATION. WELDED STEEL PLATE CONSTRUCTION AND HEAVY TRUSS RODS AND BRACES PROVIDE STRENGTH AND RIGIDITY. THIS BRAKE FEATURES A REMOVABLE APRON INSERT FOR 1/4 in BENDS IN LIGHTER MATERIAL. THE UPPER LEAF ADJUSTMENT SCREWS FEATURE THRUST BEARINGS TO PREVENT UPPER BEAM CREEP. DUCTILE STEEL CLAMP HANDLES, HEAVY COUNTERWEIGHTS AND AN APRON STOP ADD TO THE BRAKE'S EASE OF OPERATION. THE REMOVABLE FINGERS ARE CASE HARDENED FOR LONG SERVICE. TENNSMITH BOX AND PAN HAND BRAKES ARE A PRODUCTIVE ADDITION TO ANY SHOP DOING PROTOTYPE OR DESIGN WORK, FABRICATION OR SHORT RUN PRODUCTION IN HEAVIER MATERIALS.
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
Extension Fingers (pair) for F6 Models: Right and left Extension Fingers Form Inside Corners with a Return Flange
across the Top on Boxes, Cabinets, etc.: $475.00
Open End Fingers (pair) for F6 Models: Provides Triangular, Square, Tapered and Rectangular Tube Forming Abilities:  $625.00
Radius Fingers (Please Specify Radii): $POR
DELIVERY:
18-20 Weeks
