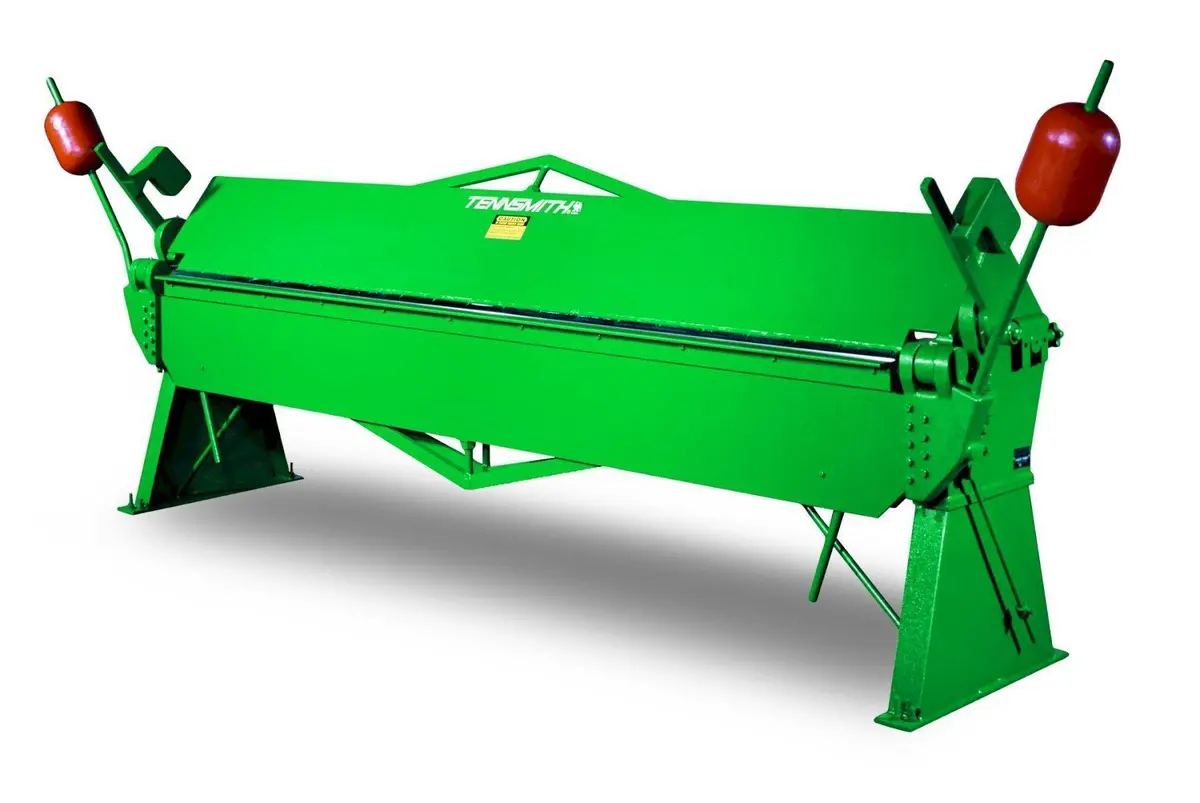

New TENNSMITH HB121-18 | Brakes, Hand

SPECIFICATIONS:
CAPACITY, MILD STEEL ----------------------- 18 GAUGE
BENDING LENGTH ----------------------------- 121 in
MAXIMUM LIFT OF BEAM ----------------------- 1-7/8 in
FRONT TO REAR BEAM ADJUSTMENT -------------- 1/2 in
MINIMUM REVERSE BEND ----------------------- 1/4 in
MINIMUM FLANGE IN CAPACITY MATERIAL -------- 1 in
DIMENSIONS, COUNTERWEIGHTS IN PLACE, (L X W X H) -------- 159 in X 52 in X 60 in
SHIPPING WEIGHT ---------------------------- 2350 LBS.
EXPORT CRATE ------------------------------- 169 CU. FT.
FEATURES:
TENNSMITH HEAVY-DUTY HAND BRAKES ARE DESIGNED AND BUILT FOR LONG SERVICE AND ACCURATE BENDING. WELDED STEEL PLATE CONSTRUCTION AND HEAVY TRUSS RODS AND BRACES PROVIDE STENGTH AND DURABILITY. WITH MUCH MORE SUBSTANTIAL STEEL SIDE PLATES THAN OTHER DOMESTICALLY MADE UNITS, THESE BRAKES HAVE THE RIGIDITY REQUIRED FOR UPPER LEAF ADJUSTMENT WITHOUT THE USE OF WRENCHES. EQUIPPED WITH THRUST BEARINGS, THE UPPER LEAF ADJUSTMENT SCREWS PERMIT QUICK, ACCURATE ALIGNMENT FOR DIFFERENT MATERIAL THICKNESSES OR RADII. OTHER ADJUSTMENT FEATURES INCLUDE: LEVELING SCREWS AND LOCK NUTS ON THE PEDESTALS - JACK SCREWS AND TENSIONER BOLTS ON THE APRON -TRUSS RODS ON THE APRON, BASE AND UPPER LEAF - AND FULLY ADJUSTABLE COUNTER BALANCES TO FACILITATE THE BENDING PROCESS. REMOVABLE APRON ANGLE AND INSERT PERMIT 1/4-INCH REVERSE BENDS IN LIGHTER MATERIAL. BORED IN-LINE TO ENSURE PERFECT ALIGNMENT, THE PIVOT POINTS ARE FITTED WITH OIL IMPREGNATED BEARINGS. THE HINGE PINS ARE HIGH-TENSILE, ALLOY STEEL. DUCTILE STEEL CLAMP HANDLES, HEAVY YOKES, GREASE FITTINGS, AND AN APRON STOP ROD COMPLEMENT THE MANY OTHER FINE FEATURES OF THESE HEAVY-DUTY BRAKES.
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
SUBJECT TO STOCK
