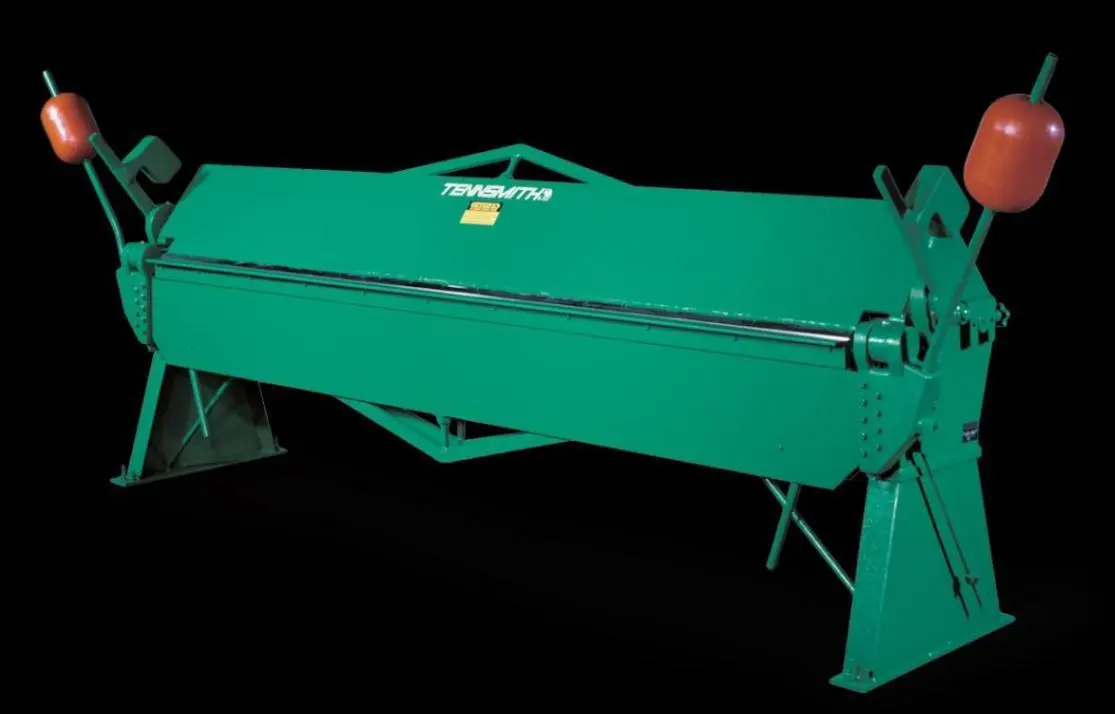

New TENNSMITH HB 121-14 | Brakes, Hand

SPECIFICATIONS:
CAPACITY, MILD STEEL ----------------- 14 GAUGE, 2.0 MM
BENDING LENGTH ----------------------- 121 inch, 3,073 MM
MAXIMUM LIFT OF BEAM ----------------- 2 1/4 inch, 57 MM
FRONT TO REAR BEAM ADJUSTMENT -------- 1/2 inch, 13 MM
MINIMUM REVERSE BEND ----------------- 1/4 inch, 6 MM
MINIMUM FLANGE IN CAPACITY MATERIAL -- 1 inch, 25 MM
DIMENSIONS (COUNTERWEIGHTS IN PLACE) - 162 inch X 54 inch X 63 1/2 inch
SHIPPING WEIGHT ---------------------- 3,250 LBS
FEATURES:
* LEVELING SCREWS AND LOCK NUTS ON THE PEDESTALS
* JACK SCREWS AND TENSIONER BOLTS ON THE APRON
* TRUSS RODS ON THE APRON, BASE AND UPPER BEAM
* FULLY ADJUSTABLE COUNTER BALANCES TO FACILITATE THE BENDING PROCESS
* REPLACEABLE NOSE BAR AND APRON INSERTS
EQUIPPED WITH:
* EQUIPPED WITH THRUST BEARINGS, THE UPPER LEAF ADJUSTMENT SCREWS PERMIT QUICK, ACCURATE ALIGNMENT FOR DIFFERENT MATERIAL THICKNESS OR RADII.
* REMOVABLE APRON ANGLE AND INSERT PERMIT 1/4-INCH REVERSE BENDS IN LIGHTER MATERIAL.
* BORED IN LINE TO ENSURE PERFECT ALIGNMENT, THE PIVOT POINTS ARE FITTED WITH OIL IMPREGNATED BEARINGS. THE HINGE PINS ARE HIGH-TENSILE, ALLOY STEEL.
* DUCTILE STEEL CLAMP HANDLES, HEAVY YOKES, GREASE FITTINGS AND AN APRON STOP ROD COMPLEMENT THE MANY OTHER FINE FEATURES OF THESE HEAVY-DUTY BRAKES.
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
18-20 WEEKS
