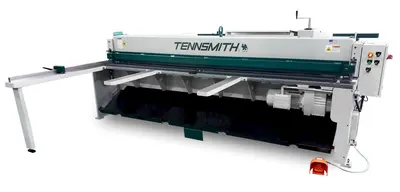

New TENNSMITH LM1014 | Shears, Power Squaring (Ga)

FEATURES:
     LM Series mechanical shears utilize a simple low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance.
     The LM1014 incorporates the unique 2x back gauge system. This allows the operator to move the backstop from 0 to 30 inches in approximately 2 seconds with only two rotations of the handle. The LM 2x back-gauge can be ordered with an optional digital readout. The 2x digital readout increments are 0.001”. The LM Series shears are standard with four-edge, high carbon, high chrome top and bottom blades, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs.
     The LM1014 capacities are 14-gauge mild steel, 18-gauge stainless up to 121 inches in cutting length. To enhance productivity, optional equipment available for the machine includes: five or ten-foot squaring arm, front support arms, light beam and protractor attachments.

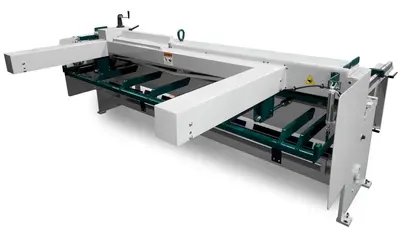

     LM1014 can be ordered with an optional air operated sheet support system. This system is available in two styles: System-R drops the support material to the rear of the machine; System-F returns the supported material to the front of the machine via a front return chute.
     The LM series shears are available in a reduced price “Performance Package” configuration. The Performance Package includes: a Five Foot Squaring Arm, a pair of Front Support Arms, and Air Operated Sheet Support System. Performance “R” system is for rear return, Performance “F” system is for front return. A moveable Material Cart is available for both Front and Rear Return machines. Please call for details.
Three-Year Factory Warranty on all Tennsmith Products
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
LM1014 (Base Machine): $31,860.00
LM1014R Performance “R”: $34,560.00
LM1014F Performance “F”: $36,180.00
LM1014FC Performance “FC” with Material Cart: $37,800.00
Squaring Arm, Five Foot with Dual Inlaid Inch/Metric Scale: $1,275.00
Squaring Arm, Ten Foot with Dual Inlaid Inch/Metric Scale: $2,850.00
Additional Flip-up Stops for Squaring Arm (each): $250.00
Front Support Arms, Pair: $350.00
T-Slotted Table with Two Front Support Arms with Inlaid Inch/Metric Scales: $2,275.00
Additional Flip-up Stops for T-Slotted Support Arms and Table (each): $205.00
Power Back gauge 30 Inch Travel: $7,200.00
Protractor Attachment: $730.00
Work Shadow Light LM Series: $1,050.00
Digital Readout for 2x Back gauge System: $1,250.00
Stroke Counter for LM Series (Electro-Mechanical): $375.00
Increased Cutting Speeds (Please consult factory): $P.O.R.
Replacement Blades (Four-Edge Top and Bottom): $2,600.00 (set)
DELIVERY:
Approx. 20-24 Weeks
