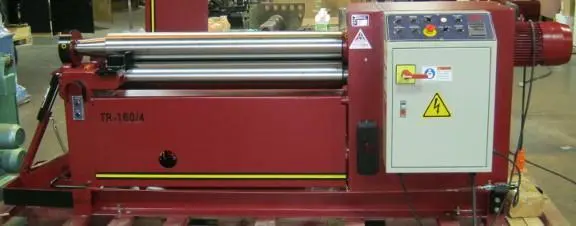

New LEMAS TR 160/4 | Rolls, Plate Bending (incld Pinch)

SPECIFICATIONS:

CAPACITIES IN MILD STEEL W/ 36,000 PSI YIELD STRENGTH -------------------------------- 4' X 1/4"
DIAMETER OF ALL ROLLS ------------------- 6.30"
ROLLING SPEED (APPROX) ------------------ 15' PER MINUTE
TOTAL CONNECTED MOTOR POWER @ 480 VOLTS - 5 HP DRIVE MOTOR
                                  1 HP HYDRAULIC SYSTEM MOTOR
APPROX NET. WEIGHT ---------------------- 3,900 LBS
FEATURES:

- POSITIVE DRIVE REGARDLESS OF POSITION OF PINCH ROLL
- GROOVES FOR 1/4", 3/8", 1/2" ROUND BAR
- SPHERICAL ROLLER BEARINGS IN ROLL SHAFTS
- REAR BENDING ROLL HYDRAULICALLY ADJUSTED
- HYDRAULIC TILTING OF THE REAR BENDING ROLL FOR CONE ROLLING
- CONE BENDING ATTACHMENT
- DIGITAL READOUT FOR POSITION OF REAR BENDING ROLL
- HYDRAULICALLY OPERATED DROP END FOR QUICK REMOVAL OF ROLLED PRODUCT
- HYDRAULIC LOWER PINCH ROLL ADJUSTMENT WITH RAPID PINCH GAUGE CONTROL
- MANUAL TILT OF THE LOWER PINCH ROLL
- FORWARD/REVERSE ROTATION CONTROLS - CONSOLE MOUNTED AND REMOTE HAND CONTROL ON CABLE
- UPPER AND LOWER PINCH ROLLS DRIVEN
- ALL ROLLS HEAT TREATED TO 50 RC
- ELECTRICS FOR 3/60/220 OR 480 VOLT OPERATION. LOW VOLTAGE AT THE CONTROLS.
- EMERGENCY STOP PALM BUTTON ON THE CONTROL CONSOLE
- EMERGENCY STOP CABLE AROUND THE MACHINE
- HYDRAULIC OIL, TOOLS, AND INSTRUCTION MANUAL
EQUIPPED WITH:
* Capacities in mild steel with 36,000 PSI yield strength: 4' x 1/4"
* Diameter of all rolls: 6.30"
* Rolling speed - approximately 15' per minute
* Total connected motor power @ 480 volts – 5 HP drive motor; 1 HP hydraulic system motor
* Approximate net weight – 3,900 pounds
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
Variable rotation speeds via frequency changer in place of single speed drive. For in stock machines, adds about 2 weeks to lead time. For factory order machines, no increase in lead time. --------------------- $2,495.00
Additional digital readout to display the position of both ends of the rear bending roll. Helpful for cone rolling applications so the operator can easily repeat the same tilt on the rear bending roll. Only available on factory ordered machines. Cannot be added to in-stock models. ------------------ $2,150.00
Simple adjustable squaring arm, mounted at the front of the machine, to help align parts. Only available on factory ordered machines. Cannot be added to in-stock models. --------------------------------------------- $1,750.00
Electromechanically operated top support device for supporting cylinders being rolled. Only available on factory ordered machines. Cannot be added to in-stock models. --------------------------------------- $9,950.00DELIVERY:
10-12 WEEKS - SUBJECT TO STOCK
