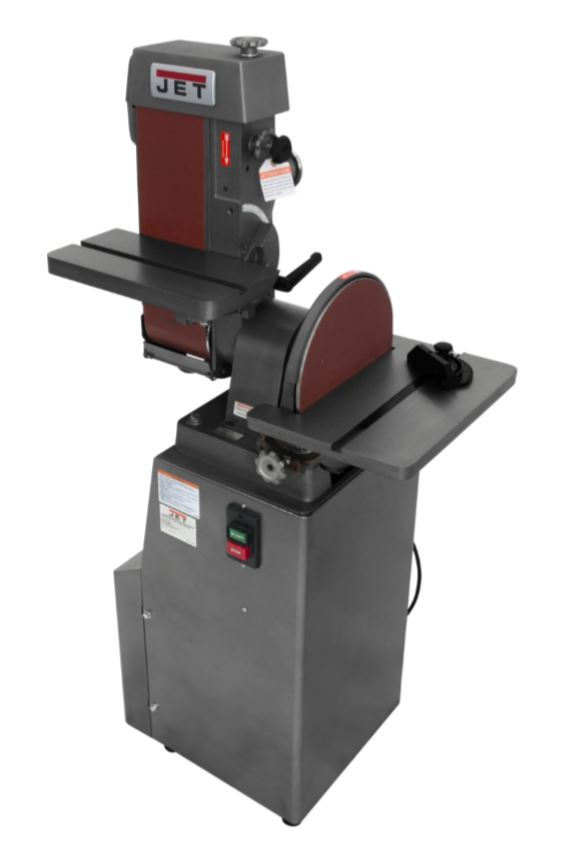

New JET J-4200A-2 | Finishing Machines

SPECIFICATIONS:
Style (Type) Belt & Disc
Disc Diameter (In.) 12
Disc Speed (RPM) 1,960
Belt Size (W x L) (In.) 6 x 48
Belt Speed (SFPM) 2,850
Disc Table Size (L x W) (In.) 12 x 16-3/8
Disc Table Tilt (Deg.) 45 Out, 20 In
Table Slots (In.) 3/8 & 3/4
Belt Table Tilt (Deg.) 45 Out, 20 In
Belt Table Size (In.) 7-3/8 x 14-3/4
Motor (HP): 1-1/2 HP, 230V, 1 Ph
Overall Dimensions (L x W x H) (In.) 26 x 19 x 58
Weight (Lbs.) 250
FEATURES:
* For added safety, the J-4200A-2 follows strict guidelines and electrical requirements to be certified by CSA Group.
* Plain and compound miters are easily obtained by using the standard die cast aluminum miter gauge.
* Fully machined, balanced disc.
* Belt operates at any angle.
* Removable upper belt guard for contour finishing.
* Completely enclosed drums and guarded sanding belt.
* Adjustable heavy-duty cast iron removable platen.
* Variable position locks.
* Belt head adjusts vertically and horizontally.
* Large cast iron slotted table.
* Adjustable dust collector and dust chute.
* Heavy-duty one-piece steel stand.
* 60 grit belt & disc standard on machine.
* Miter gauge included.
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
2-3 WEEKS
