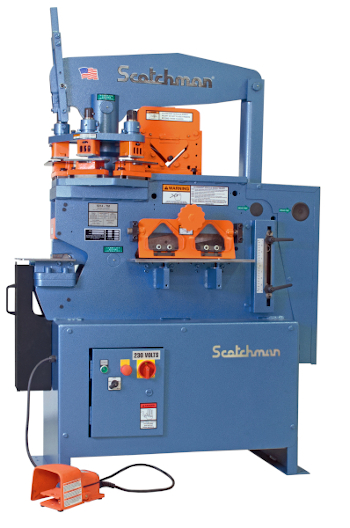

New SCOTCHMAN 5014-ET | Ironworkers

EQUIPPED WITH:
* SINGLE OPERATOR, 7 STATIONS
* 50 TON PUNCH STATION WITH 3-STATION REVOLVING TURRET (1-1/4 in IN 1/2 in AND 13/16 in IN 3/4 in )
* KEYED PUNCH RAM FOR SAFETY
* THREE 2 in DIE HOLDERS, THREE PUNCH NUTS WITH WRENCH AND THREE STRIPPERS
* ONE ROUND PUNCH & DIE: MAX. DIA. 1 in
* ADJUSTABLE ELECTRIC STROKE CONTROL WITH SCALE
* ELECTRIC REMOTE FOOT PEDAL
* TOOL TABLE WORK AREA
* SLUG RECEPTACLE
* ELECTRICAL BOX SUPPLIED WITH EMERGENCY PALM BUTTON AND
* LOCK-OUT TAG-OUT ACCOMMODATIONS
* ALL GUARDS NECESSARY TO COMPLY WITH ANSI B 11-5 STANDARDS
* FORKLIFT ACCOMMODATIONS
* WARRANTY: THREE YEARS ON PARTS
* MADE IN USA
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
Single Phase Motor, 5 HP, 220 Volt / 60 Hz $500.00
L.E.D. Light Package-50ET (Factory Installation) $450.00
Laser Light - Bar Shear (Factory Installation) $1,075.00
Optional Jog Box - 50EC&ET (Factory Installation) $625.00
Tool Table Extension W/ Punch & Die Drawer (100 lbs. Max) $925.00
Punch Table W/Fence & Scale $595.00
Shear Table w/Mitre Fence $325.00
48" Deluxe Back Gauge $825.00
Infeed Conveyor (24" X 5 Foot w / Support Arms) $3,295.00
6" Brake (With 4-Way Lower V-Die) $450.00
8" Brake Complete (With 2" V opening dies standard - For 1/4" material) $1,695.00
12" Brake Complete (With 2" V opening dies standard - For 1/4" material) $2,095.00
Brake Length Gauge With Scale $225.00
12" Brake Table With Scale & Squaring Arm $450.00
Open End Brake (Max 1/4" x 3" Flat or 1/4" x 3" Angle Iron) $1,625.00
Pipe Notcher Housing (Separate Dies Required For Each Size)  $370.00
3/4" Schedule 40 Pipe Upper & Lower Dies - Set  $620.00
1" Schedule 40 Pipe Upper & Lower Dies - Set  $620.00
1-1/4" Schedule 40 Pipe Upper & Lower Dies - Set  $645.00
1-1/2" Schedule 40 Pipe Upper & Lower Dies - Set  $645.00
2" Schedule 40 Pipe Upper & Lower Dies - Set  $675.00
Tool Table Pusher For Pipe Notcher  $75.00
Punch Pusher For Pipe Notcher  $45.00
90 Degree V-Notcher (6" x 6" x 1/8" or 3" x 3" x 1/4")  $2,595.00
Rod Shear (Up To 1" Round or 3/4" Square) $1,595.00
Square Tube Shear (1/2" to 1" - 14 Gauge Maximum)  $1,275.00
Picket Tool Housing (Separate Dies Req'd For Each Size)  $1,195.00
1/2" 14 Gauge Max. Upper & Lower Dies  $395.00
3/4" 14 Gauge Max. Upper & Lower Dies $395.00
1" 14 Gauge Max. Upper & Lower Dies $395.00
2-5/8" Die Holder $200.00
Turret Die Holder Spacer $50.00
4" x 6" Die Riser Blocks (Set of 2) $100.00
Bolts - M12 X 75 SHCS (Requires 2) $5.00
Angle Shear 4" x 4" x 3/8" (When Ordered Separately) $1,595.00
Angle Iron Miter Guide $55.00
Unistrut Shear (PF45 & 50 Ton) (Please Call To Inquire About Other Material Profiles) (Material Sample Required For All Orders Prior To Order Approval)
Weld Coupon Bender - PF45, 50C & 50T (Max 3/8"x2"x7") $1,825.00
Economy #20 Punch & Die Package (16th) (Retail Price = $545, Savings = $170) Includes:  12 sets of round punches and dies:  5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1 & a snap ring removal tool. $375.00
Economy #20 Punch & Die Package (32nd) (Retail Price = $551, Savings = $176) Includes:  12 sets of round punches and dies:  11/32, 13/32, 15/32, 17/32, 19/32, 21/32, 23/32, 25/32, 27/32, 29/32, 31/32, 1-1/32 & a snap ring removal tool. $375.00
Economy #20 Punch & Die Package (Metric) (Retail Price = $563, Savings = $188)  Includes:  12 sets of round, metric punches and dies:  8, 10, 12, 14, 16, 18, 20, 22, 24, 28, 30, 32 & a snap ring removal tool. $395.00
Deluxe #20 Punch & Die Package (Retail Price: $2,107, Savings: $882) Includes:  Round:  9/32, 11/32, 13/32, 15/32, 17/32, 19/32, 21/32, 23/32, 25/32, 27/32, 29/32, 31/32, 1-1/32, 1-1/8, & 1-1/4;  Squares:  3/8, 1/2, 5/8, & 3/4; Ovals:  5/16 x 3/4, 7/16 x 3/4, 9/16 x 3/4, 5/16 x 1, 7/16 x 1, 9/16 x 1, 5/16 x 1-1/4, 7/16 x 1-1/4, 9/16 x 1-1/4 & a snap ring removal tool. $1,225.00
8" Brake Package (Retail Price: $1,795, Savings: $170): 8" Brake & Brake Length Gauge w/Scale. $1,725.00
12" Brake Package (Retail Price: $2,520, Savings: $525): 12" Brake, Brake Length Gauge w/Scale, & 12" Brake Table w/Scale & Squaring Arm. $2,150.00
Pipe Notcher Package (Retail Price: $1,675, Savings: $380): Housing, 1-1/4" Sch. 40 Pipe Dies,1-1/2" Sch. 40 Pipe Dies, & Tool Table Pusher. $1,295.00
Productivity Package (Retail Price: $6,035, Savings: $1,140): Infeed Conveyor (24" x 5' w/Support Arms), Laser Light for Bar Shear, LED Light Package, Punch Gauging Table w/Fence & Scale, 48" Deluxe Back Gauge, & Shear Table w/Miter Fence. $5,025.00
DELIVERY:
5 WEEKS
